MAT20PD Commercial Washer
Instruction Manual
LABEL INSTALLATION INSTRUCTIONS
(Original INSTRUCTIONS)
Comer Coal Washer (household and similar use only for Europe)
Model: MAT20PD
Approval Type: NAW120P
WASHER SAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.”
These words mean:
You can be killed or seriously injured if you don’t immediately follow instructions.
You can be killed or seriously injured if you don’t follow instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.
INSTALL LABELS
NOTE: The Label Kit is only needed if the Washer is installed in Greece, Italy, or Hungary.
IMPORTANT: Install all Labels provided in the Label Kit.
 | |
Electrical Shock Hazard |
- Locate the part number printed on the individual Labels provided in the Label Kit.
- Reference the diagrams shown in these instructions on pages 8 and 9 to locate where the replacement Labels need to be installed on the Washer.
NOTE: In some instances, multiples of the same Label are supplied due to multiple locations on the Washer for the same label. - Locate the existing Label on the Washer that the replacement Label will be installed over.
- Wipe the surface of the existing Label to remove any dust or oils, using a clean cloth.
- Remove the Label from the backer and install on top of the existing Label.
NOTE: The replacement Label will be the same size and shape as the existing Label it will be installed over.

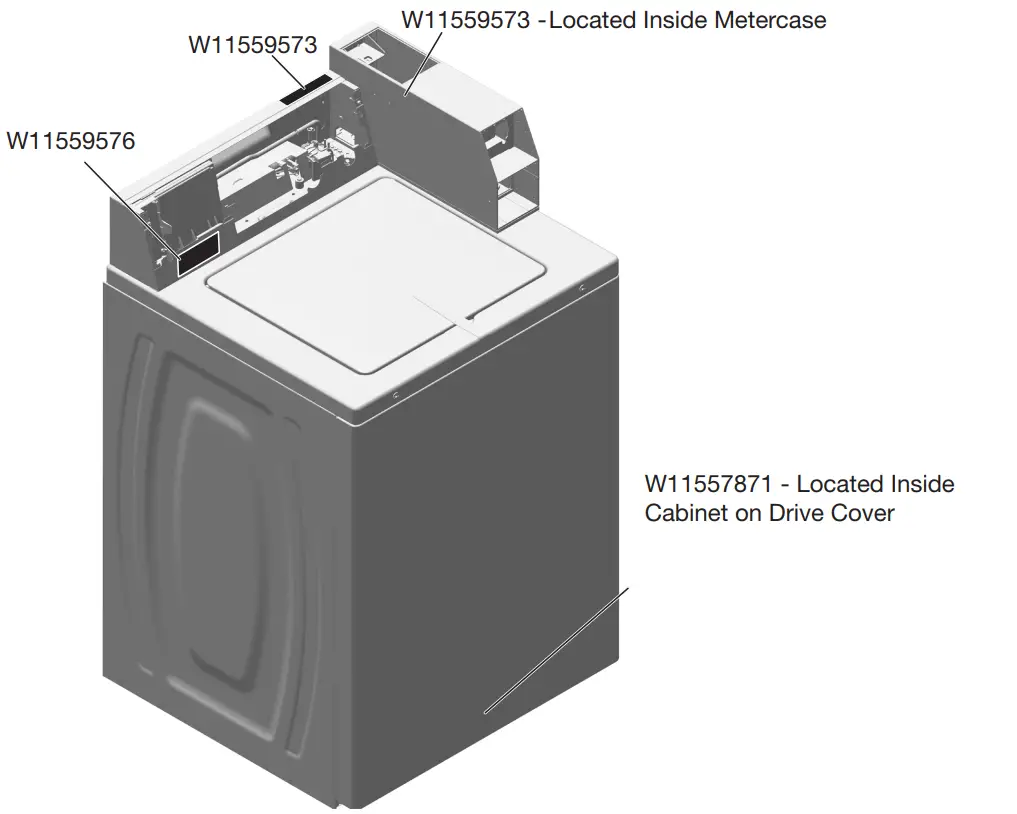

DIAGRAMS
NOTES
©2022 All rights reserved.
W11590093B
