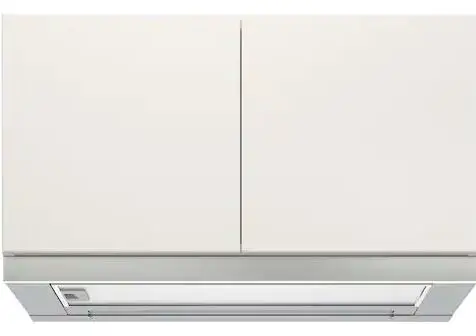

IKEA UTDRAG Built-In Extractor Hood Stainless Steel
Overview
Instructions

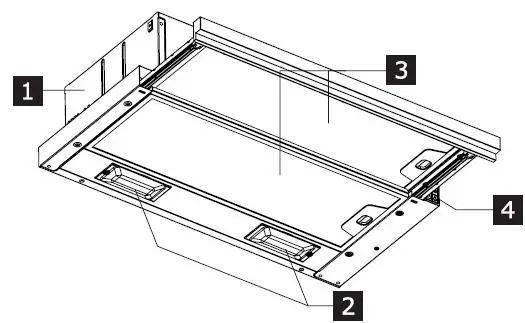

Product description
- Hood body
- LED Lighting
- Grease filter
- Control panel

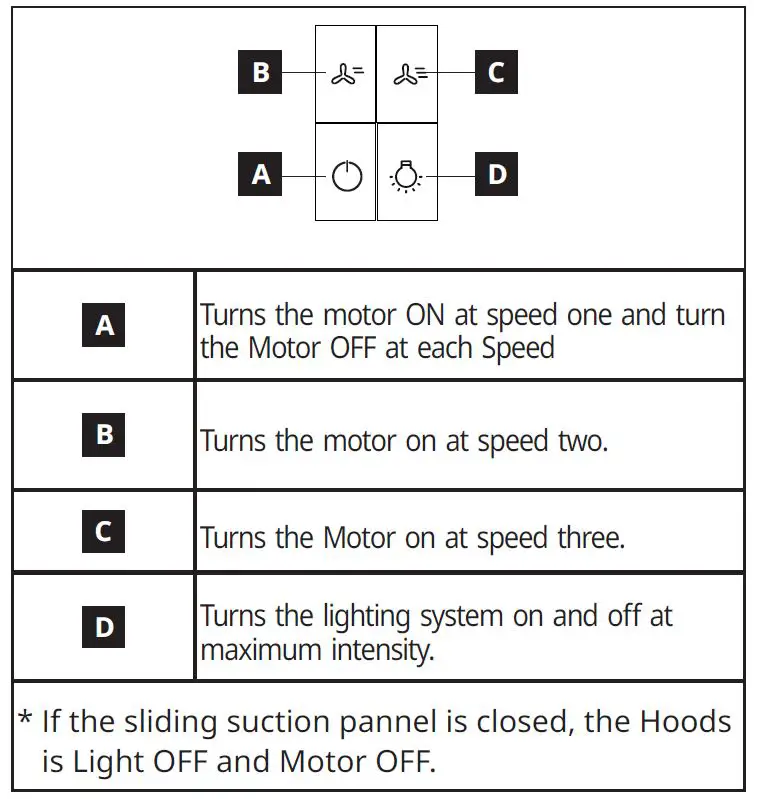

Control panel
Energy efficiency
Energy efficiency| Product fiche information, according to 65/2014 | Unit | Value |
| Supplier’s name | IKEA | |
| Model identifier | UTDRAG 903.923.29 | |
| Annual Efficiency Consumption | kWh/a | 38,6 |
| Energy Efficiency Class | B | |
| Fluid Dynamic Efficiency | 18,1 | |
| Fluid Dynamic Efficiency Class | C | |
| Lighting Efficiency | lux/Watt | 16 |
| Lighting Efficiency Class | D | |
| Grease Filtering Efficiency | % | 85,1 |
| Grease Filtering Efficiency Class | B | |
| Air flow at minimum speed | m³/h | 170 |
| Air flow at maximum speed | m³/h | 340 |
| Air flow at boost speed | m³/h | N/A |
| Airborne acoustical A-weighted sound Power Emission at minimum speed | dbA | 54 |
| Airborne acoustical A-weighted sound Power Emission at maximum speed | dbA | 67 |
| Airborne acoustical A-weighted sound Power Emission at boost speed | dbA | N/A |
| Power Consumption in off mode | Watt | 0,0 |
| Power Consumption in standby mode | Watt | N/A |
| Additional information according to 66/2014 | ||
| Time increase factor | 1,3 | |
| Energy Efficiency Index | 66,9 | |
| Measured Air flow rate at best efficiency point | m³/h | 194,0 |
| Measured air pressure at best efficiency point | Pa | 232 |
| maximum air flow | m³/h | 340,0 |
| Measured electric power input at best efficiency point | W | 69,0 |
| Nominal power of the lighting system | W | 8,0 |
| Average illumination of the lighting system on the cooking surface | lux | 130 |
| Sound power level at the highest setting | dBA | 67 |
