603.922.98 UTDRAG Built In Extractor Hood
User Manual
603.922.98 UTDRAG Built In Extractor Hood

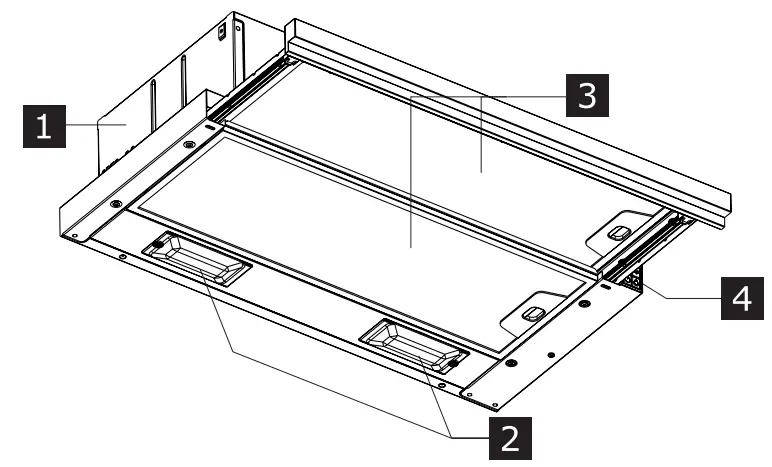

Product description
- Hood body
- LED Lighting
- Grease filter
- Control panel
Control panel
A. Turns the motor ON at speed one and turn the Motor OFF at each Speed
B. Turns the motor on at speed two.
C. Turns the Motor on at speed three.
D. Turns the lighting system on and off at maximum intensity.
* If the sliding suction pannel is closed, the Hoods is Light OFF and Motor OFF.
Energy efficiency
| Product fiche information, according to 65/2014 | Unit | Value |
| Suppliers name | IKEA | |
| Model identifier | UTDRAG 603.922.98 | |
| Annual Efficiency Consumption | kWh/a | |
| Energy Efficiency Class | ||
| Fluid Dynamic Efficiency | 18,1 | |
| Fluid Dynamic Efficiency Class | C | |
| Lighting Efficiency | lux/Wact | 16 |
| Lighting Efficiency Class | D | |
| Grease Filtering Efficiency | 96 | 85,1 |
| Grease Filtering Efficiency Class | B | |
| Air flow at minimum speed | rn3/h | 170 |
| Air flow at maximum speed | rn3/h | 340 |
| Air flow at boost speed | rn3/h | N/A |
| Airborne acoustical A-weighted sound Power Emission at minimum speed | dbA | 54 |
| Airborne acoustical A-weighted sound Power Emission at maximum speed | dbA | 67 |
| Airborne acoustical A-weighted sound Power Emission at boost speed | dbA | N/A |
| Power Consumption in off mode | Watt | 0,0 |
| Power Consumption in standby mode | Watt | N/A |
| Additional Information according to 66/2014 | ||
| Time increase factor | 1,3 | |
| Energy Efficiency Index | 66,9 | |
| Measured Air flow rate at best efficiency point | rn3/h | 194,0 |
| Measured air pressure at best efficiency point | Pa | 232 |
| maximum air flow | rn3/h | 340,0 |
| Measured electric power input at best efficiency point | W | 69,0 |
| Nominal power of the lighting system | 8,0 | |
| Average illumination of the lighting system on the cooking surface | 130 | |
| Sound power level at the highest setting | 67 | |
Australia
Victoria: (03) 8523 2154
New South Wales: (02) 5020 6641
Queensland: (07) 3380 6800
IKEA Perth: (08) 9201 4532
IKEA Adelaide: (08) 8154 4532
To download the full version visit www.ikea.com
