Light

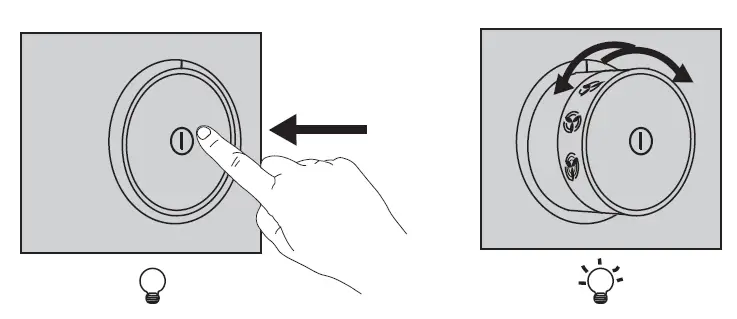

To turn the lights on, press the dial and release it so that it pops out of its housing.
To turn the lights off, push the dial back inwards, returning it to the off position.
Motor Speed Adjustment

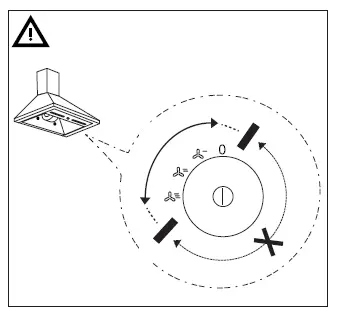

Press the dial and release it so that it pops out of its housing, then turn the dial to select one of the available suction speeds.

Product fiche information, according to 65/2014	Unit	Value
Supplier’s name	IKEA
Model identifier	RYTMISK 103.923.28
Annual Efficiency Consumption	kWh/a	39,5
Energy Efficiency Class		B
Fluid Dynamic Efficiency		18,2
Fluid Dynamic Efficiency Class		C
Lighting Efficiency	lux/Watt	37
Lighting Efficiency Class		A
Grease Filtering Efficiency	%	85,1
Grease Filtering Efficiency Class		B
Air flow at minimum speed	m3/h	200
Air flow at maximum speed	m3/h	400
Air flow at boost speed	m3/h	N/A
Airborne acoustical A-weighted sound Power Emission at minimum speed	dbA	53
Airborne acoustical A-weighted sound Power Emission at maximum speed	dbA	65
Airborne acoustical A-weighted sound Power Emission at boost speed	dbA	N/A
Power Consumption in off mode	Watt	0,0
Power Consumption in standby mode	Watt	N/A
Additional information according to 66/2014
Time increase factor		1,3
Energy Efficiency Index		66,6
Measured Air flow rate at best efficiency point	m3/h	223,0
Measured air pressure at best efficiency point	Pa	217
maximum air flow	m3/h	400,0
Measured electric power input at best efficiency point	W	74,0
Nominal power of the lighting system	W	6,0
Average illumination of the lighting system on the cooking surface	lux	220
Sound power level at the highest setting	dBA	65
