M
B
1x
C
1x
F
2x E
1x
D
1x
H.1
G

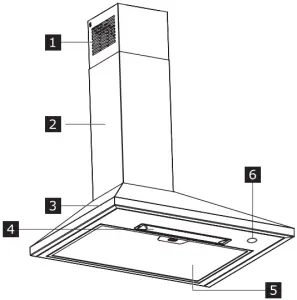

Product description

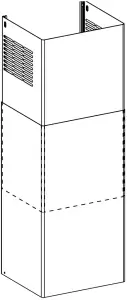

[1] Upper chimney
[2] Lower chimney

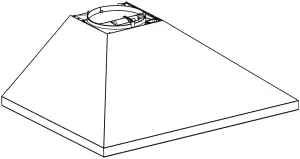

[3] Hood body
[4] LED Lighting

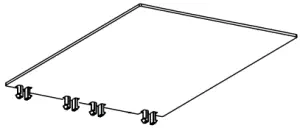

[5] Grease filter
[6] Control panel
Control panel
  | |

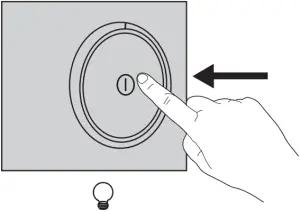

| Light | To turn the lights on, press the dial and release it so that it pops out of its housing. To turn the lights off, push the dial back inwards, returning it to the off position. |

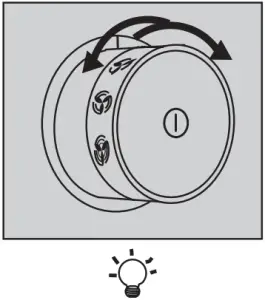

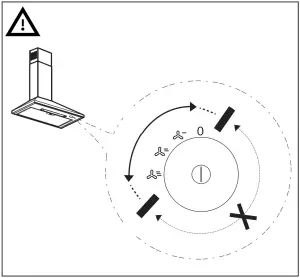

| Motor Speed Adjustment | Press the dial and release it so that it pops out of its housing, then turn the dial to select one of the available suction speeds. |
Energy efficiency
| Product fiche information, according to 65/2014 | Unit | Value |
| Supplier’s name | IKEA | |
| Model identifier | RYTMISK 803.889.69 | |
| Annual Efficiency Consumption | kWh/a | 41,0 |
| Energy Efficiency Class | B | |
| Fluid Dynamic Efficiency | 18,2 | |
| Fluid Dynamic Efficiency Class | C | |
| Lighting Efficiency | lux/Watt | 18 |
| Lighting Efficiency Class | C | |
| Grease Filtering Efficiency | % | 85,1 |
| Grease Filtering Efficiency Class | B | |
| Air flow at minimum speed | m3 /h | 200 |
| Air flow at maximum speed | m3 /h | 400 |
| Air flow at boost speed | m3/h | N/A |
| Airborne acoustical A-weighted sound Power Emission at minimum speed | dbA | 53 |
| Airborne acoustical A-weighted sound Power Emission at maximum speed | dbA | 66 |
| Airborne acoustical A-weighted sound Power Emission at boost speed | dbA | N/A |
| Power Consumption in off mode | Watt | 0,0 |
| Power Consumption in standby mode | Watt | N/A |
| Additional information according to 66/2014 | ||
| Time increase factor | 1,3 | |
| Energy Efficiency Index | 67,9 | |
| Measured Air flow rate at best efficiency point | m3 /h | 223,0 |
| Measured air pressure at best efficiency point | Pa | 217 |
| maximum air flow | m3 /h | 400,0 |
| Measured electric power input at best efficiency point | W | 74,0 |
| Nominal power of the lighting system | W | 8,0 |
| Average illumination of the lighting system on the cooking surface | lux | 145 |
| Sound power level at the highest setting | dBA | 66 |
To download the full version visit www.ikea.com
