605.269.95 BALANSERAD Wall Mounted Extractor Hood
Instruction Manual
605.269.95 BALANSERAD Wall Mounted Extractor Hood

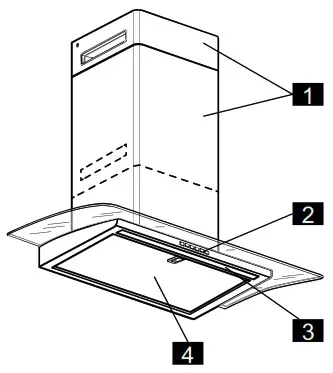

Description of the appliance
| 1 Chimney 2 Control Panel | 3 Lamp 4 Grease Filter |

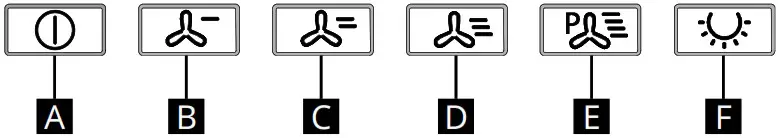

Control Panel
| A Motor OFF button B Suction power 1 selection button C Suction power 2 selection button | D Suction power 3 selection button E Suction power 4 selection button Duration 5 min. F ON/OFF light button |
Technical Data
| Type of appliance | Wall-mounted Hood | ||
| Dimensions | Width | mm | 798 |
| Depth | mm | 452 | |
| Min. height | mm | 696 – 734 | |
| Max. height | mm | 1195 – 1262 | |
| Total power | W | 257 | |
| Light info | Type | LED | |
| Number & Power | W | lx7w | |
| Connection | LED Strip | ||
| Minimum installation height – gas cooker | mm | 650 | |
| Minimum installation height – electric cooker | mm | 500 | |
| Product weight | Kg | 25. | |
| Product information in accordance with EU Regulation no. 65/2014 | |||
| Name of Supplier | IKEA | ||
| Model identification code | BALANSERAD 90526994 | ||
| Annual energy consumption – AEC | Kw h/yea r | 41. | |
| Energy efficiency class | A+ | ||
| Fluid dynamic efficiency FDE | % | 35. | |
| Fluid dynamic efficiency class | To | ||
| Luminous efficiency LE | Lux/W | 60. | |
| Luminous efficiency class | Lux | To | |
| Grease filtering efficiency – GFE | % | 75. | |
| Grease filtering efficiency class | C | ||
| Minimum air flow (normal power) | m3/h | 140.0 | |
| Maximum air flow (normal power) | m3/h | 390.0 | |
| Airflow setting in boost mode | m3/h | 720.0 | |
| A-weighted sound power level of noise emissions at minimum speed | db(A ) re pW | 36.0 | |
| A-weighted sound power level of noise emissions at maximum speed | db(A ) re pW | 58.0 | |
| A-weighted sound power level of noise emissions in boost mode | db(A ) re pW | 71.0 | |
| Power consumption in off mode-PO | W | NA | |
| Power consumption in standby mode-Ps | W | 0.49 | |
| Product information in accordance with EU Regulation no. 66/2014 | |||
| Factor of increase over time – f | 0.7 | ||
| Energy efficiency index – EEI | 43. | ||
| Airflow measured at best efficiency point – QBEP | m3/h | 405.0 | |
| Air pressure measured at best efficiency point – PBEP | Pa | 444.0 | |
| Maximum airflow – Qmax | m3/h | 720.0 | |
| Electric power consumption at best efficiency point – WBEP | W | 142.0 | |
| Rated power of lighting system – WL | W | 7.0 | |
| Average illuminance of the lighting system on the cooking surface – Emiddle | Lux | 421.0 | |
To download the full version visit www.ikea.com
