IKEA logo

RYTMISK

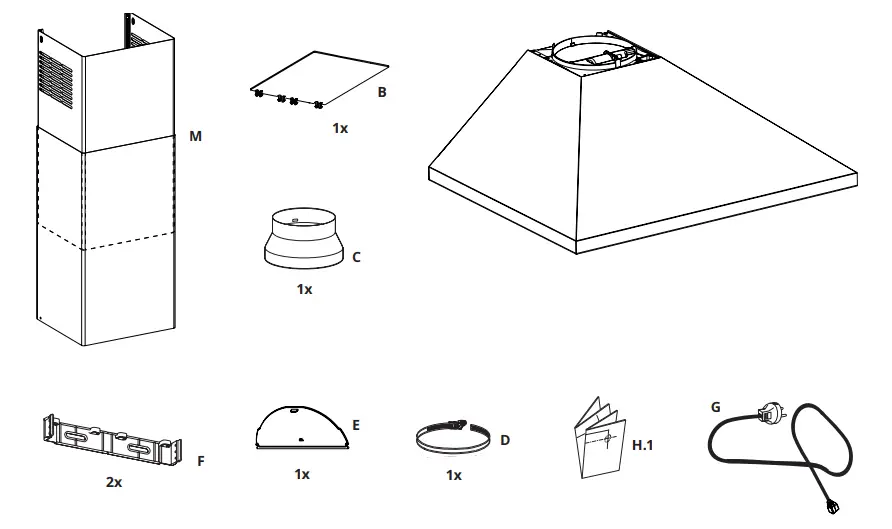

IKEA RYTMISK Wall Mounted Extractor Hood Stainless Steel - parts

IKEA RYTMISK Wall Mounted Extractor Hood Stainless Steel - parts 1IKEA RYTMISK Wall Mounted Extractor Hood Stainless Steel - parts 2
www.ikea.comwww.ikea.com

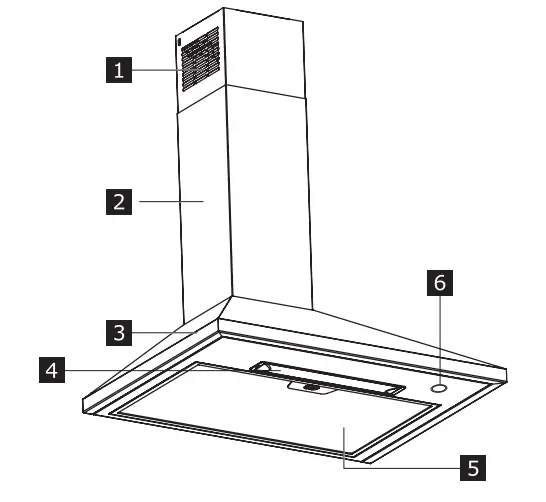

Product description

IKEA RYTMISK Wall Mounted Extractor Hood Stainless Steel - Product description

  1. Upper chimney
  2. Lower chimney
  3. Hood body
  4. LED Lighting
  5. Grease filter
  6. Control panel

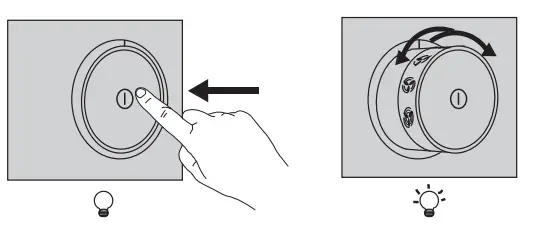

Control panel

IKEA RYTMISK Wall Mounted Extractor Hood Stainless Steel - Control panel
LightTo turn the lights on, press the dial and release it so that it pops out of its housing.
To turn the lights off, push the dial back inwards, returning it to the off position.

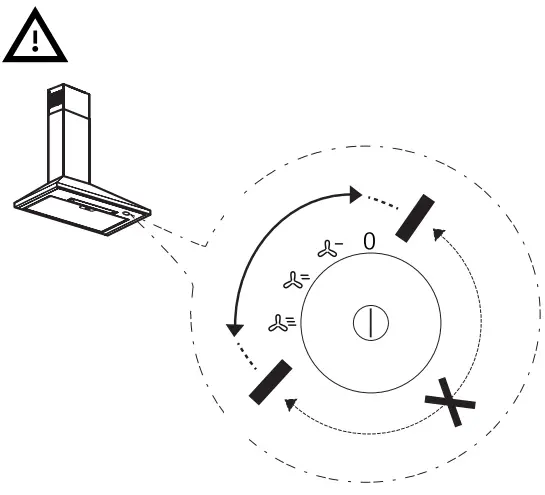

Motor Speed AdjustmentPress the dial and release it so that it pops out of its housing, then turn the dial to select one of the available suction speeds.

IKEA RYTMISK Wall Mounted Extractor Hood Stainless Steel - warning

Energy efficiency

Product fiche Information, according to 69=4UnitValue
Supplier’s nameIKEA
Model identifierRY1/415K 0019232A
Annual Efficiency ConsumptionkWh/a41,0
Energy Efficiency GassB
Fluid Dynamic Efficiency18,2
Fluid Dynamic Efficiency ClassC
Lighting Efficiencylux/watt18
Lighting Efficiency ClassC
Grease Filtering Efficiency%85,1
Grease Filtering Efficiency ClassB
Airflow at minimum speedm3/h200
Airflow at maximum speedn3/h400
Airflow at boost speedm3/hN/A
Airborne acoustical
A-weighted sound Power Emission at minimum speed
dbA53
Airborne acoustical
A-weighted sound Power Emission at maximum speed
dbA66
Airborne acoustical
A-weighted sound Power Emission at boost speed
dbAN/A
Power Consumption in off modeWatt0,0
Power Consumption in standby modeWattN/A
Additional information according to 66/2014
Time increase factor1,3
Energy Efficiency Index67,9
Measured Air flow rate at best efficiency pointm3/h223,0
Measured air pressure at best efficiency pointPa217
maximum airflowm3/h400,0
Measured electric power input at best efficiency pointW74,0
Nominal power of the lighting systemW8,0
Average illumination of the lighting system on the cooking surfacelux145
The sound power level at My highest settingdBA66

To download the full version visit www.ikea.com

Country name in local languagesTelephone numberopening times
AustraliaVictoria: 403) 8523 2154
New South Wales: (02) 5020 6641
Queensland: (07) 3380 6800
IKEA Perth: (08) 9201 4532
IKEA Adelaide: (08)8154 4532

991.0647.154_01 – 210323
D00007688_00

CE SYMBOL

© Inter IKEA Systems B.V. 2020
AA-2287373-1
23199
