LV2 Micro Lavalier Microphone
3 mm (0.12 in) subminiature microphone
Instruction Manual
Xvive LV2 is a high-performance 3 mm (0.12 in) subminiature lavalier microphone. It offers a high level of speech intelligibility and is easily hidden in costumes/hair, buttonholes, etc.—even glued on performers’ faces—in film, theater, and broadcast.
FEATURES
- Superior audio clarity
- Natural response across the frequency range
- 3 mm (0.12 in) subminiature lavalier microphone
- Small and easily concealed
- Matte black, sleek, low-profile design
- Microphone capsule with Omni-directional pickup pattern
- The plug locks and is compatible with the standard TRS interface
LV2 LAVALIER MICROPHONE
| Polar pattern | Omni-directional |
| Sensitivity | -40dB ±3dB |
| Equivalent noise level | 28 dB SPL |
| Impedance | 4.5 k |
| Frequency response | 50 Hz – 20 kHz |
| Battery voltage range | 0.8-5 VDC |
| Battery drain | 17 µA |
| Maximum input level | 117.5 dB SPL |
Microphone Connector
Mono 3.5mm TRS output. Ensure the connected device provides a regulated + 0.8V to 5V voltage to the “+” conductor.

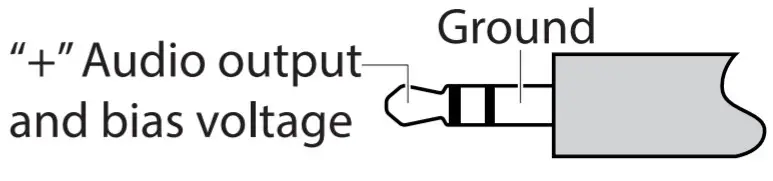

TRS Wiring Diagram
QUICKSTART
LAVALIER MICROPHONE SETUP

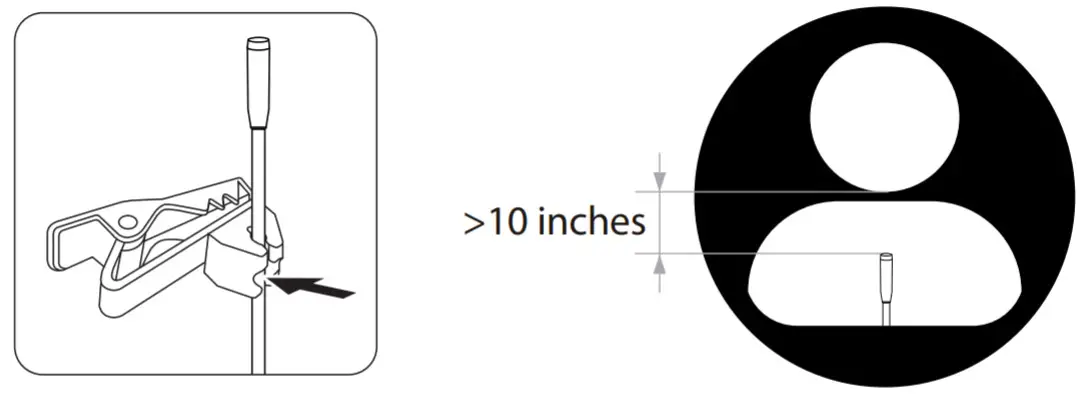

a. Install windscreen and mic clip on the lavalier microphone;
b. Use the mic clip to attach the microphone to clothing, as desired;
c. Run the mic cable to the transmitter in a way that avoids friction noise, and so that the cable and the wireless transmitter antenna do not cross;
d. The Xvive LV2 Lavalier Microphone has an Omni-directional pickup pattern.
Keep at least 10 inches away from your mouth or audio source.
Plug the 3.5mm TRS lavalier microphone plug into your recording device or wireless audio transmitter.
