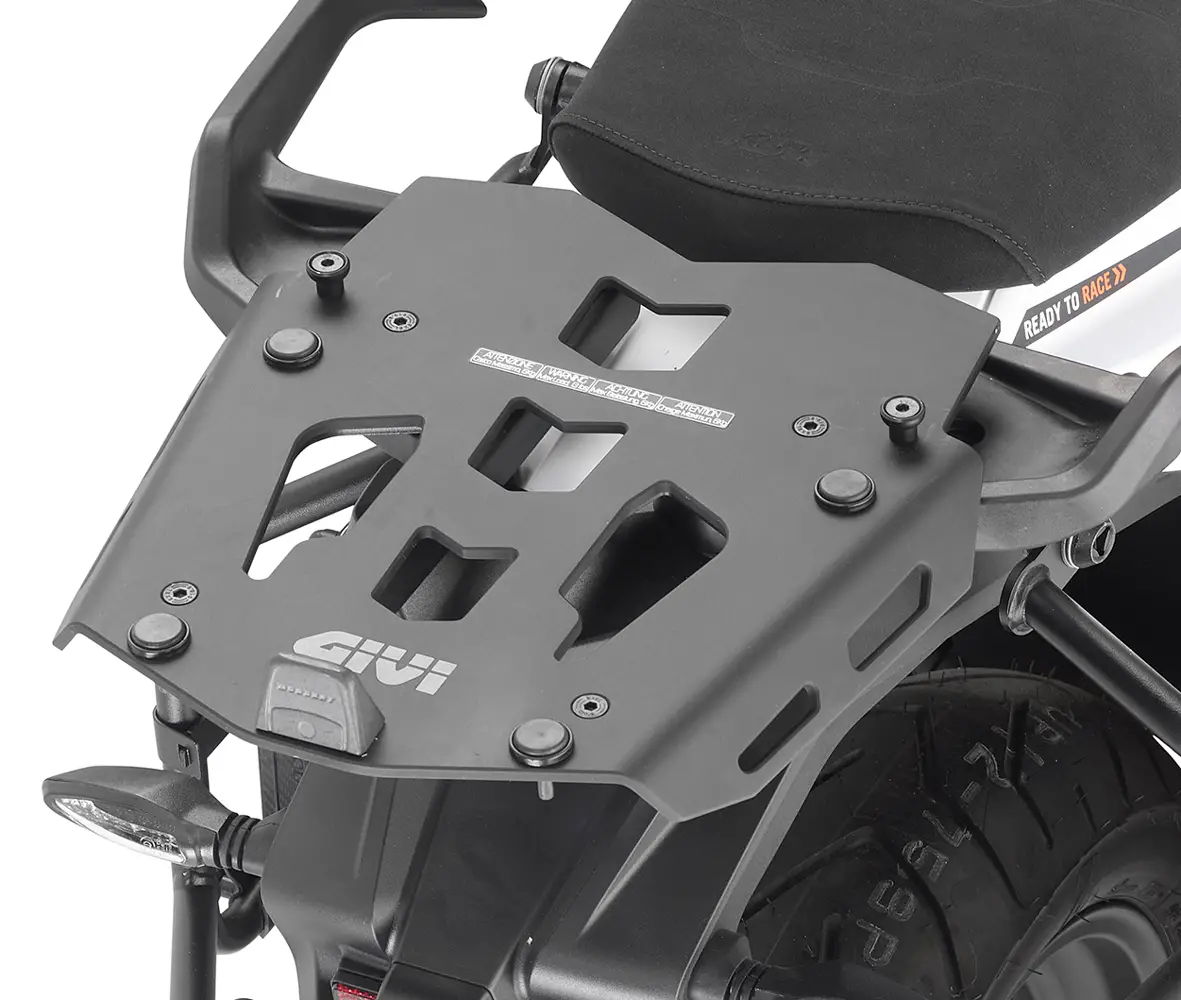

GiVi SRA7713 Specific Holder Instruction Manual

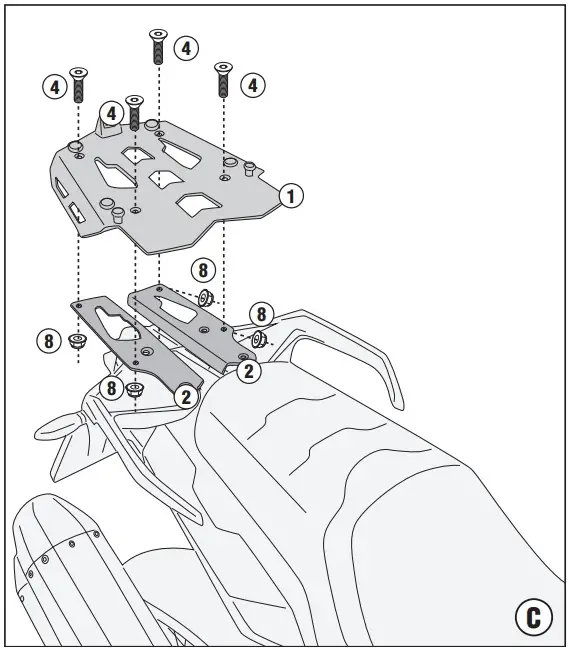

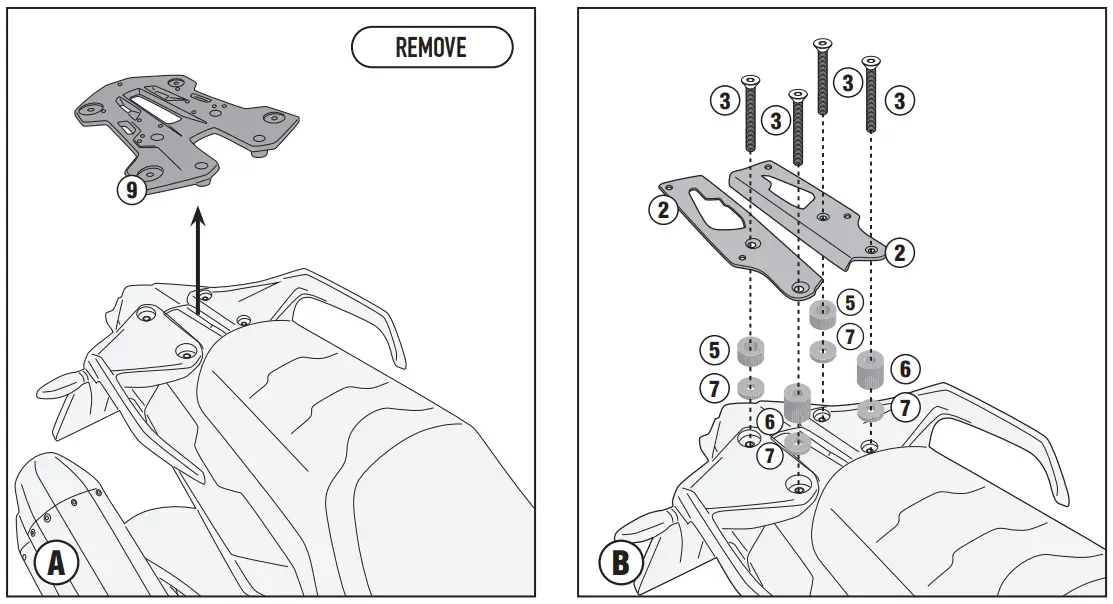

Inductions
Description | Features | Code | Quantity |
| Plate | Alluminio Sp. 5mm | L4810A | 1 |
| Lower support | GL4809DXV GL4809SXV | 2 (Right: Left) | |
| Screw | TSP M8x65 | 865TSP | 4 |
| Screw | TSP M6X20 | 620TSP | 4 |
| Spacer | 024×14 Foro 14mm | C24L14F14T | 2 |
| Spacer | 024×26 Foro 10,5mm | C24L26F10,5T | 2 |
| Spacer | 024×5 Foro 8,5mm | C24L5F8,5T | 4 |
| Bolt | Dado Autobloccante Flangiato Alto M6 (H.9mm) | 6DADIAFLN | 4 |
| Original Parts |
WARNING: MAX. LOADING 6Kg.(13lbs)
