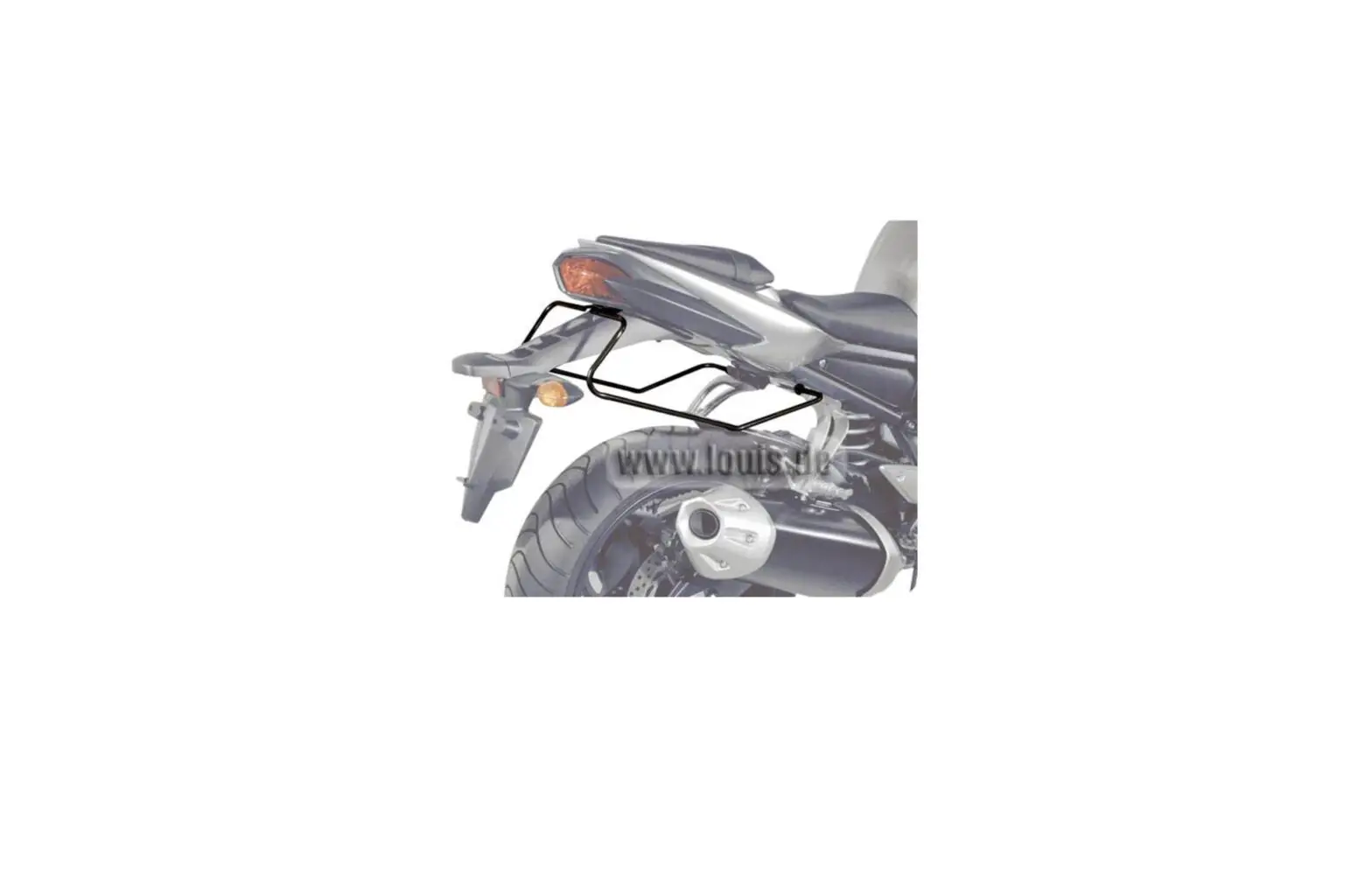

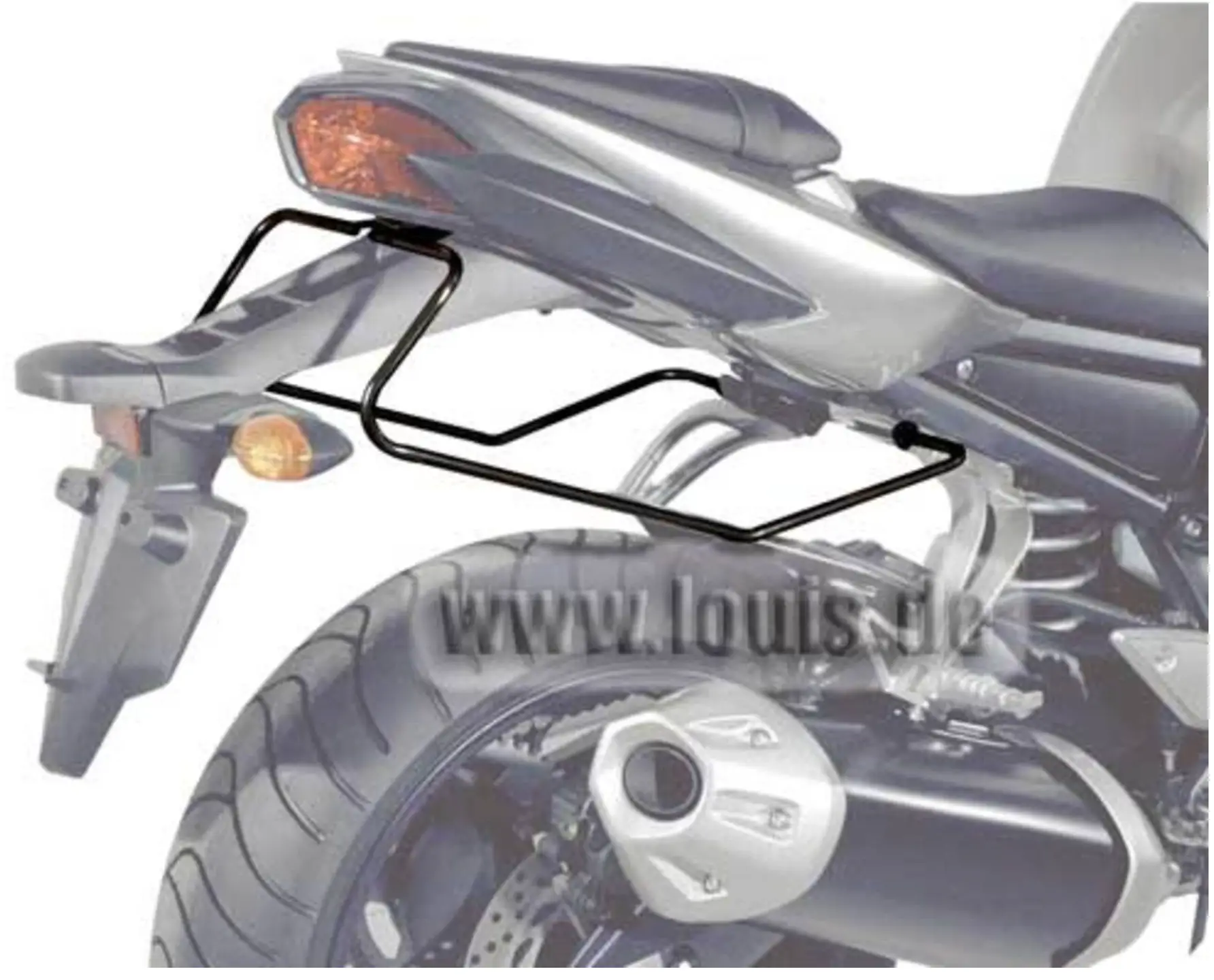

GIVI TR2156 Specific Saddlebag Tubular Holder Instruction Manual

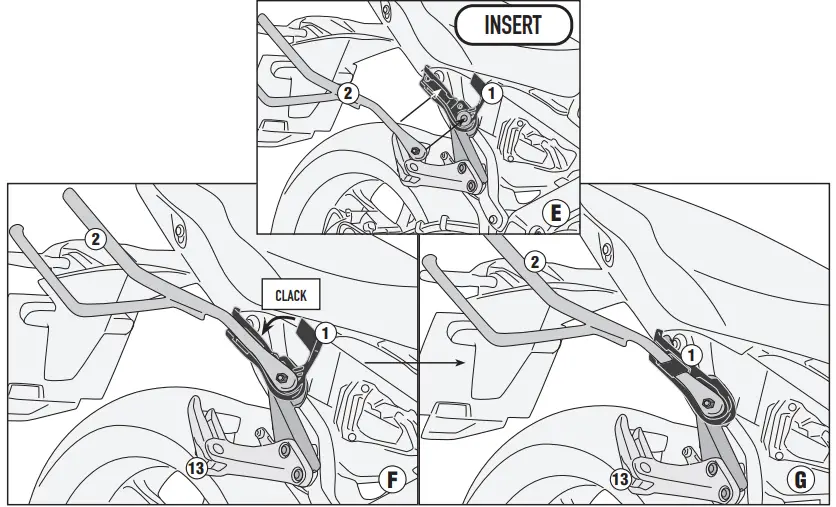

Installation Instructions
| N° | Description | Features | Code | Quantity |

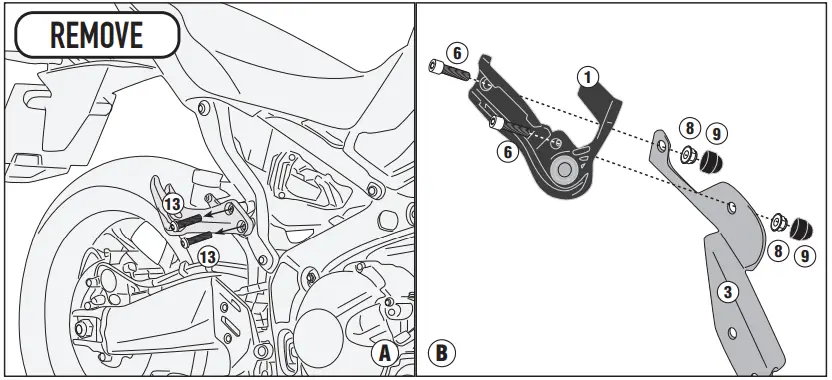

| 1 | REMOVE X | – | – | 2(Right; Left) |
| 2 | Side frame | – | 02TRDXV 02TRSXV | 2 (Right: Left) |
| 3 | Support Support | – | GL4834DXV GL4834SXV | 2 (Right: Left) |
| 4 | Screw | TBEI M8x40 | 840TBEI | 2 |
| 5 | Screw | TBEI M8x55 | 855TBEI | 2 |
| 6 | Screw | TCE M6x16 | 616TCE | 4 |
| 7 | Washer | Foro Ø8mm / Esterno Ø20mm Sp.2mm | 820RON | 4 |
| 8 | Bolt | Auto M6 (H.7mm) | 6DADIABFN | 4 |
| 9 | Cap Fiche | – | 10COP | 4 |

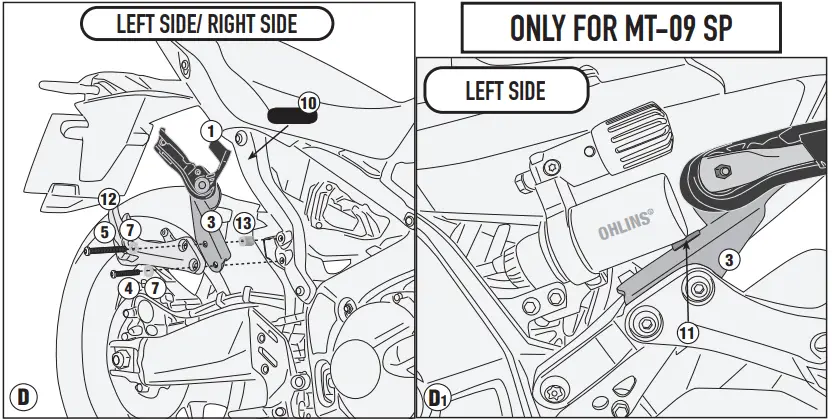

| 10 | Adhesive Protection Protection Adhesive | – | Z2388 | 2 |

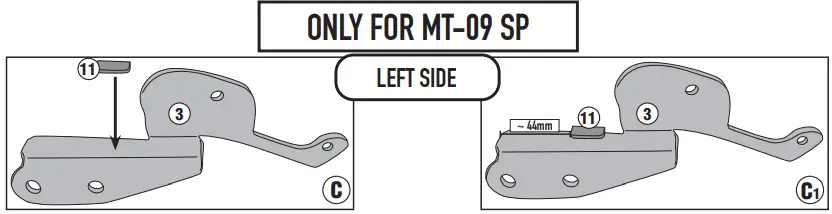

| 11 | Protective Rubber Pads | ONLY FOR MT-09 SP | Z298 | 1 |

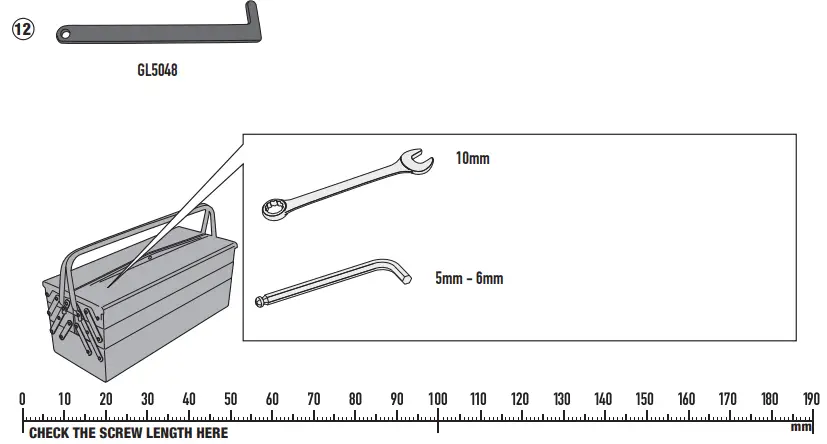

| 12 | Special Key | – | GL5048 | 1 |
| 13 | Original Parts Parties | – | – | – |

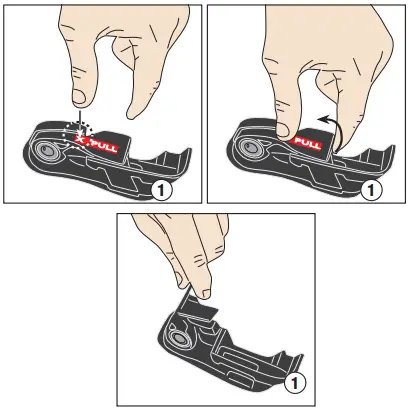

TO OPEN WITH SPECIAL KEY
TO OPEN WITHOUT SPECIAL KEY
