Flexstand Gls431b Chauvet Dj User Guide

Quick Reference Guide

QUICK REFERENCE GUIDE
About This Guide
The FLEXstand Quick Reference Guide (QRG) has basic product information such as mounting and technical specifications.
Disclaimer
The information and specifications contained in this QRG are subject to change without notice.
LIMITED WARRANTY
FOR WARRANTY REGISTRATION AND COMPLETE TERMS AND CONDITIONS PLEASE VISIT OUR WEBSITE. For Customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration.
For Customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration.
Chauvet warrants that this product shall be free from defects in material and workmanship under normal use, for the period specified in, and subject to the exclusions and limitations set forth in the full limited warranty on our website.
This warranty extends only to the original purchaser of the product and is not transferable.
To exercise rights under this warranty, you must provide proof of purchase in the form of an original sales receipt from an authorized dealer that shows the product name and date of purchase.
THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES.
This warranty gives you specific legal rights. You may also have other rights that vary from state to state and country to country. This warranty is valid only in the United States, United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, Germany, and Mexico. For warranty terms in other countries, please consult your local distributor.
Safety Notes
These Safety Notes include important information about installation, use, and maintenance.

• Carefully inspect all parts before use.
• WARNING: This product should only be used by competent and qualified persons.

Pinch Point! Keep hands and fingers clear of mounted products while adjusting.

• DO NOT use for loads that exceed the maximums provided in the Technical Specifications in this Quick Reference Guide.
• DO NOT use if any components are cracked or appear compromised.

Contact
Outside the U.S., U.K., Ireland, Benelux, France, Germany, or Mexico, contact your distributor to request support or return a product. Refer to Contact Us at the end of this QRG for contact information.
What is Included

• Baseplate
• Telescoping pole
• Carry bag
• Quick Reference Guide

To Begin
Unpack your FLEXstand and make sure you have received all parts in good condition. If the box or contents appear damaged, notify the carrier immediately, not Chauvet.
Mounting
Before mounting with this product, read the Safety Notes.

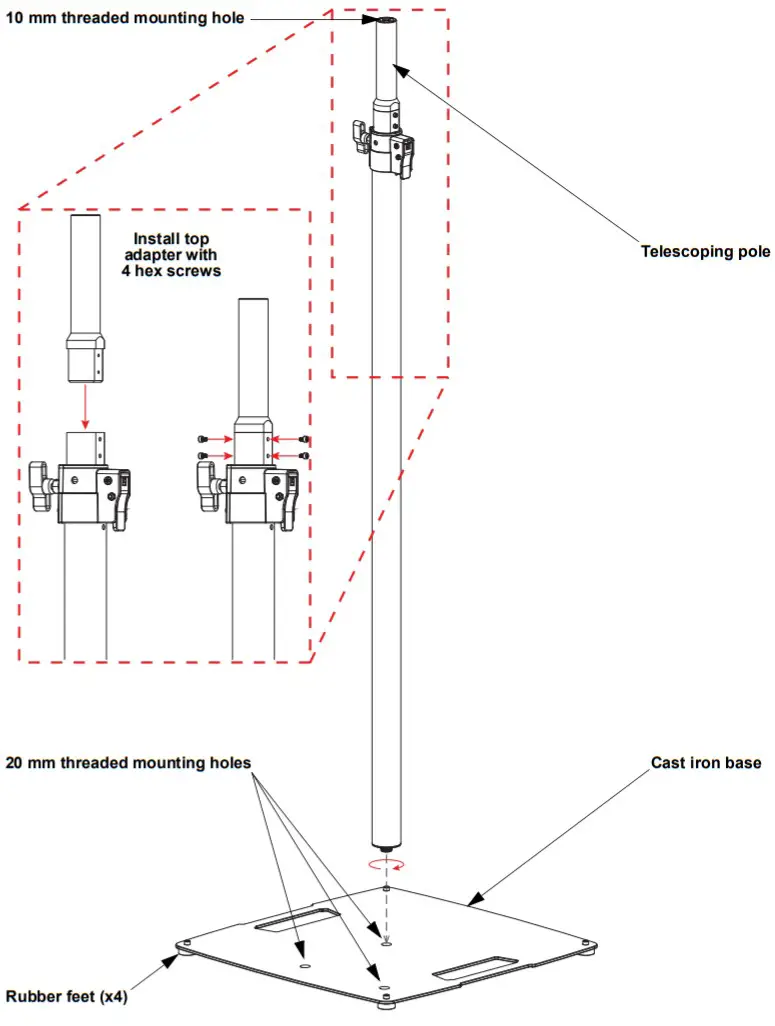

Mounting Diagram

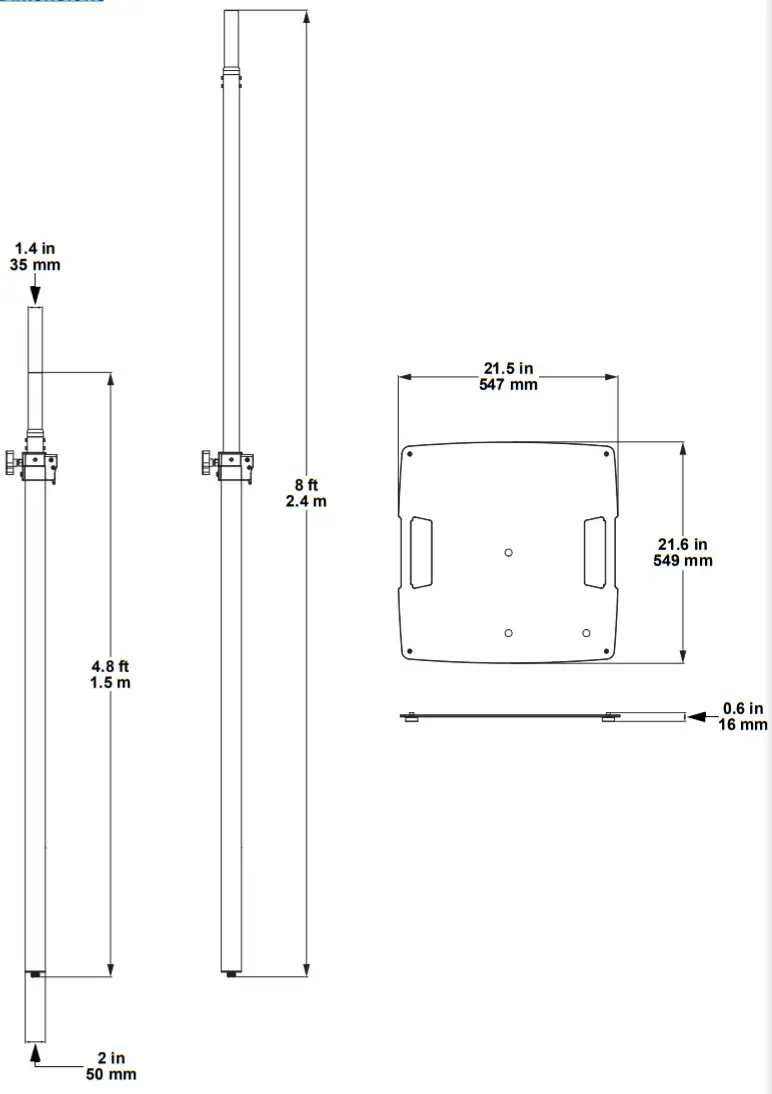

Product Dimensions

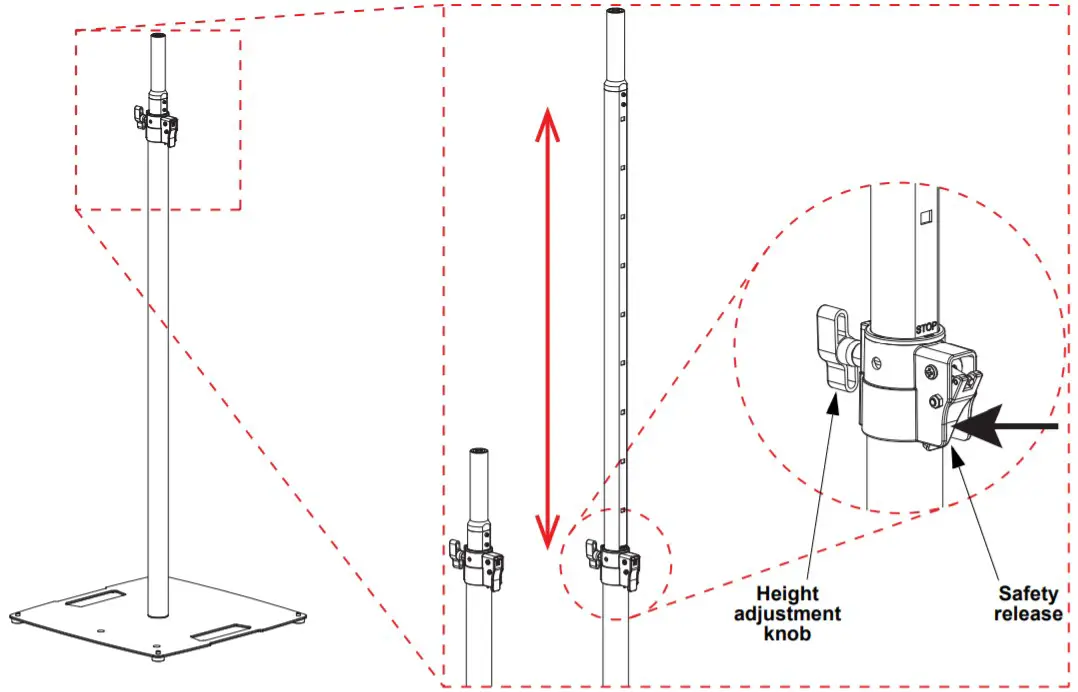

Telescoping Pole Overview
To increase the height of the telescoping pole:

1. Loosen the height adjustment knob.
2. Adjust until the safety release clicks into place at the desired height.
3. Tighten the height adjustment knob.

To decrease the height of the telescoping pole:

1. Loosen the height adjustment knob.
2. Press in and hold the safety release.
3. Adjust to the desired height and let go of the safety release.
4. Adjust until the safety release clicks into place.
5. Tighten the height adjustment knob.

Technical Specifications

Contact Us
General Information

Visit the applicable website above to verify our contact information and instructions to request support. Outside the U.S., U.K., Ireland, Benelux, France, Germany, or Mexico, contact the dealer of record.

FLEXstand QRG Rev. 3 ML6
© Copyright 2021 Chauvet
All rights reserved
