Recycle Disassemble Instruction
(Dismantled Information)
Requirements according to ANNEX VII of DIRECTIVE 2012/19/EU on waste electrical and electronic equipment (WEEE)
Materials and components with hazardous content
LCDs may contain hazardous substances like Pb and BFRs which are covered by exemptions under the RoHS directive. However, the majority is present in the printed circuit boards assembly. In order to reduce emissions as much as possible, complete disposal of the old appliance is required. This treatment may only be performed in authorized handling plants.
Product Name: LCD Monitor
Model No.: XL2546K
Disassembly Tools
| Tool | picture |
| Philips Screwdriver for M3 Screw |  |
| Nosed Pliers |  |

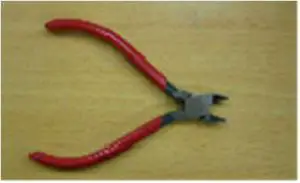

| Diagonal Cutting Pliers |  |
| Slotted screwdriver |  |
| Six Point Sockets |  |
| Philips Screwdriver for M2.5 Screw |  |
| Knife |  |

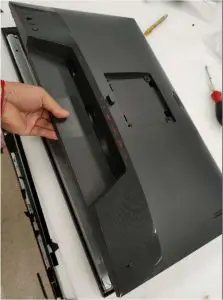

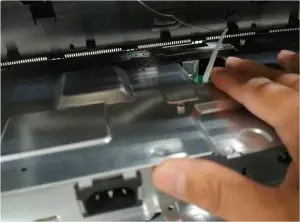

Disassembly process
 | |

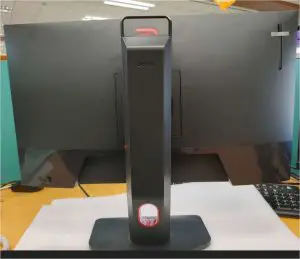

 | Disassembly Stand |

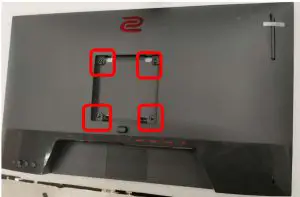

 | Unscrew |
 | Disassembly RC |
 | Disassembly Ctrl_BD Cable |

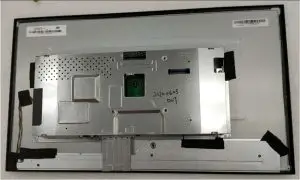

 | Disassembly Internal Remove All Tapes |

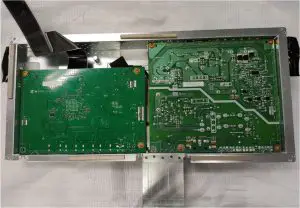

 | Disassembly all PCB. |

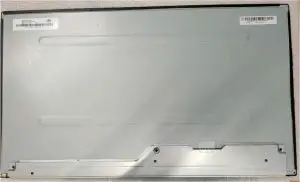

 | Remove Panel |

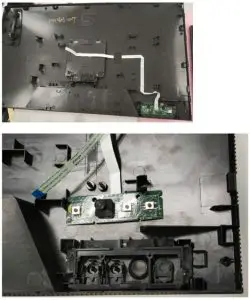

 | Disassembly RC Control BD |

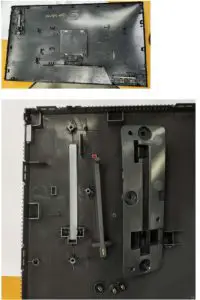

 | Disassembly RC Hook Headphone |

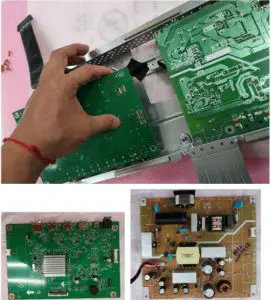

 | Disassembly all PCB. |

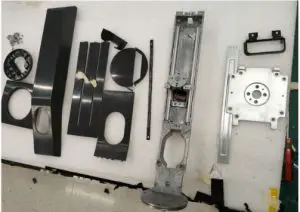

 | Disassembly Column |

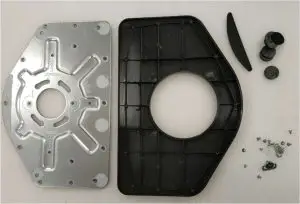

 | Disassembly BASE |
Disassembly Time
Total time: 30 minutes
