LED Strip Profile
LED Strip Profile

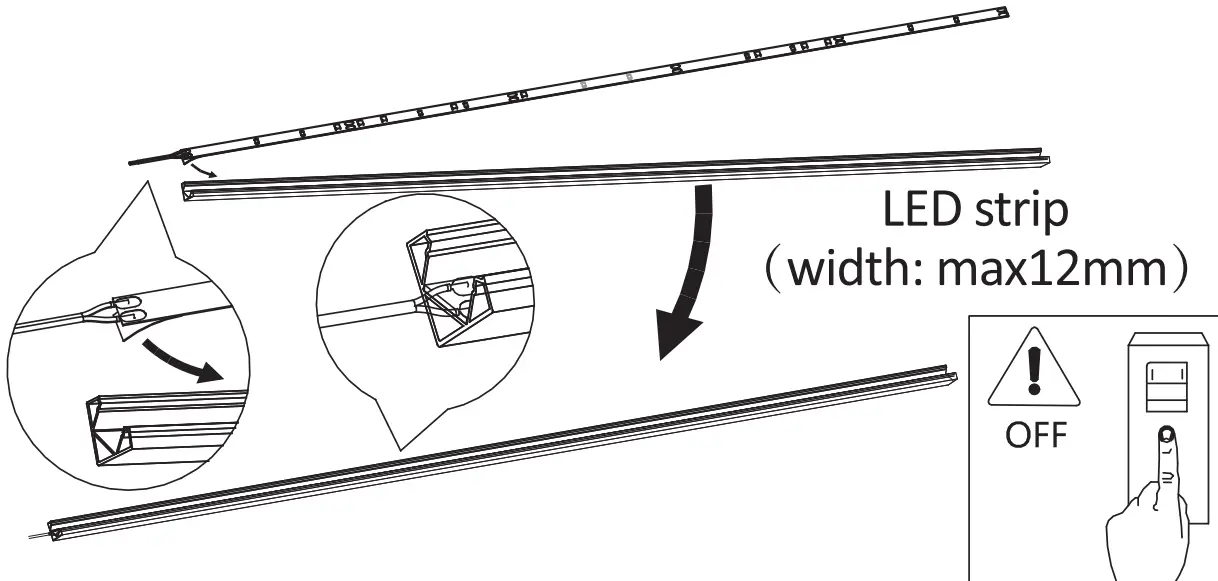

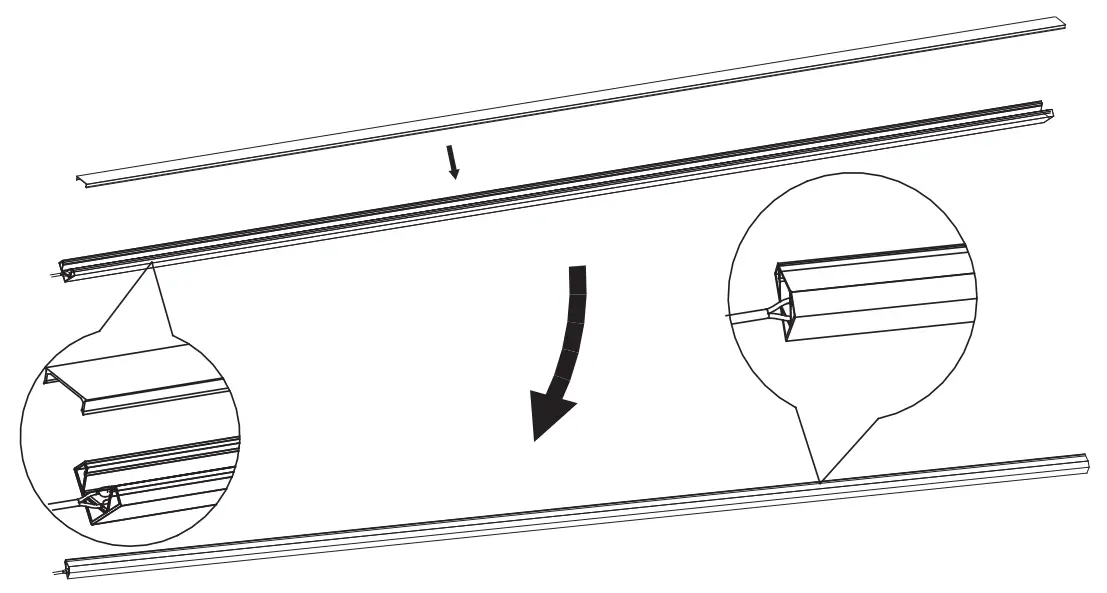

- LED strip assembly: Ensure that the strip is placed correctly (smoothly) in the surface of profile without any bumps
- Opal cover assembly: ensure the surface of cover is flat after installation

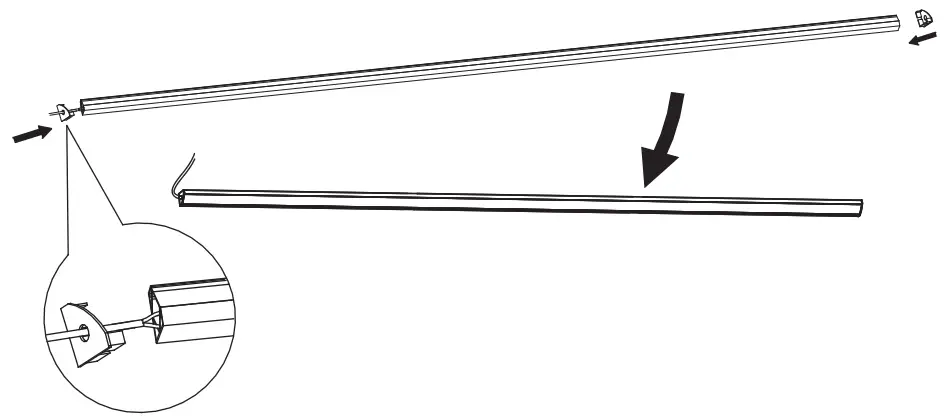

- End cap assembly:
a Wires go through the hole of the end cap
b, End cap click-in to the profile
* Before placing/mounting the end cap pushes the wires of the LED strip through the hole of the endcap. Afterward, place the endcap onto the profile
* Potential risk of end cap falling off from the profile after dissembling of the end cap, so please don’t take the end cap off after assembling

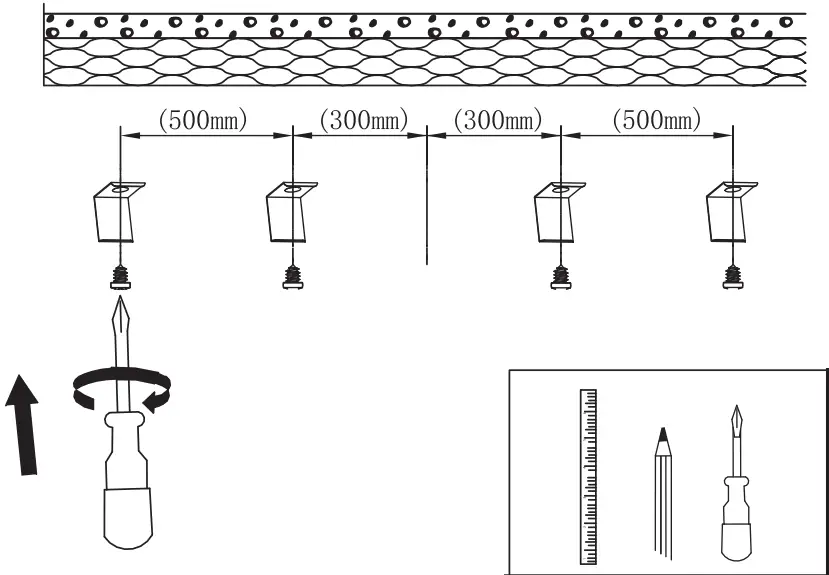

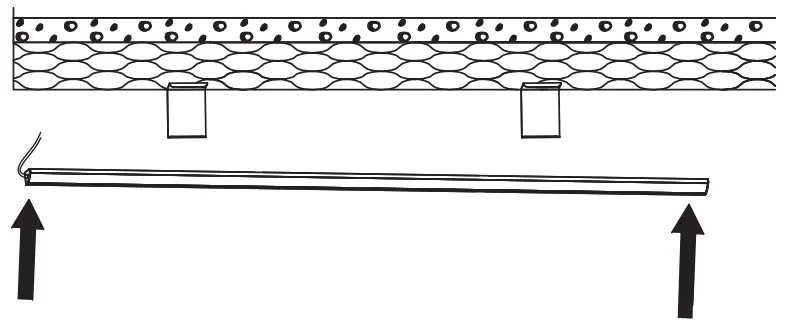

Mounting clip position(1m)

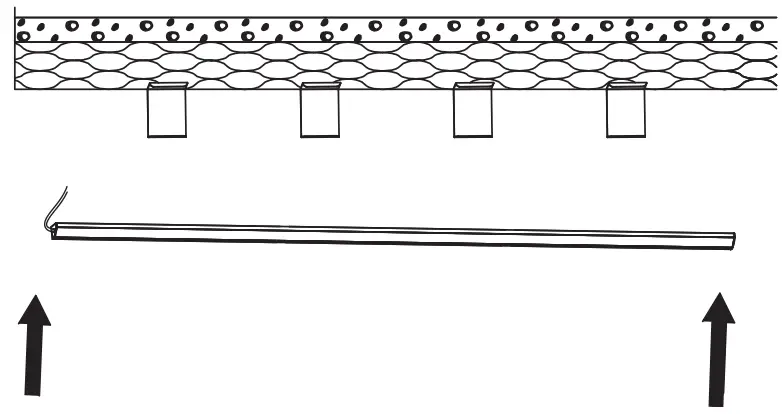

Mounting clip position(2m)

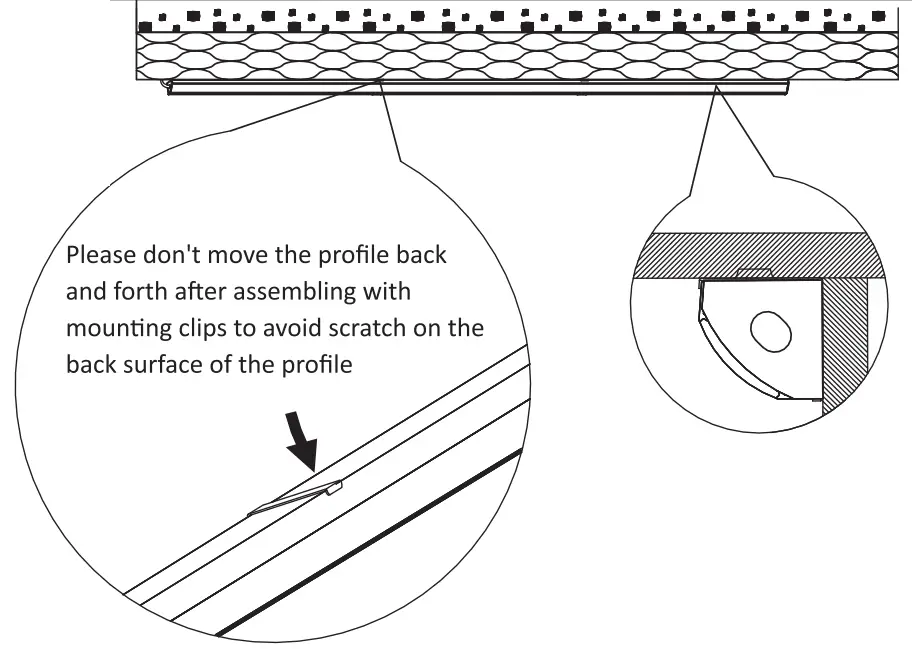

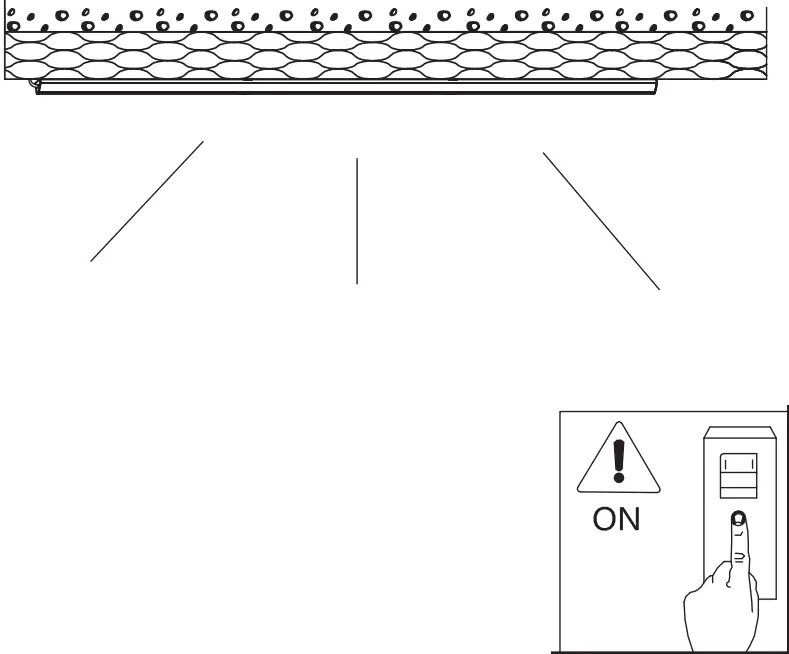

Profile assembly(1m)
Profile assembly(2m)

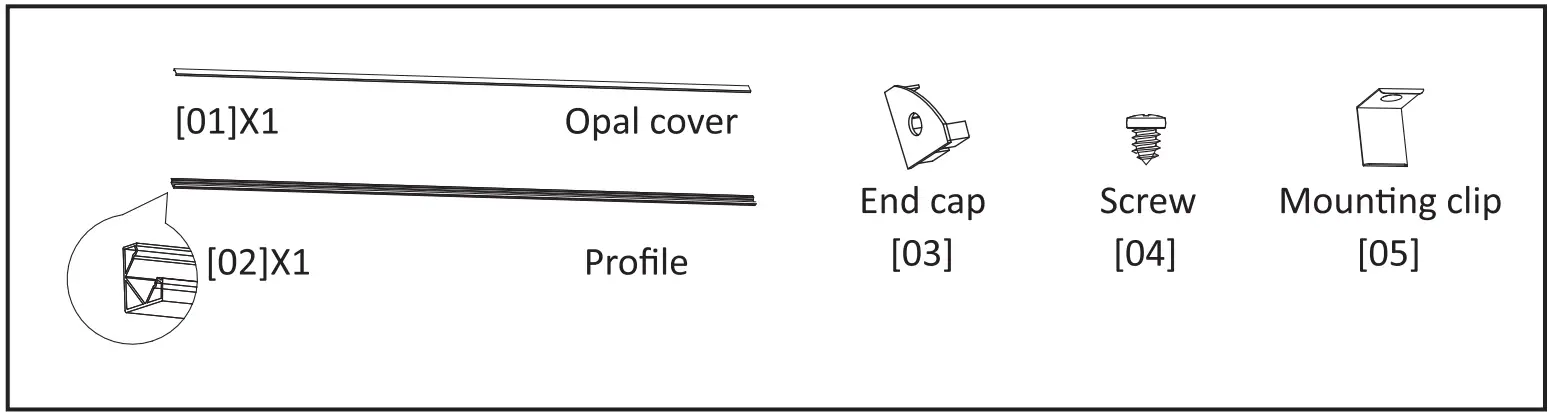

| 12nc | Description | Length_ (mm) | Width_ (mm) | Height_ (mm) | Remark |
| 929003244202 | EU LV Strip V profile 1M | 1000 | 17. | 17. | The profile set includes materials 1-5 |
| 929003244302 | EU LV Strip V profile 2M | 2000 | 17. | 17. | The profile set includes materials 1-5 |
| L(MM) |  |  |  |
| 1000 | 2 | 2 | 2 |
| 2000 | 2 | 4 | 4 |
