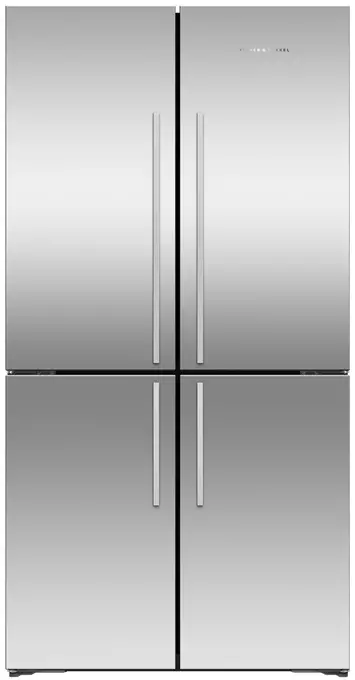

FISHER PAYKEL RF605QDVX2 FP AA 538L Quad Door Refrigerator Stainless Steel
INTRODUCTION
| BRAND | VOLTAGE | MODEL | PRODUCT CODE |
| Fisher & Paykel | 220-240 50Hz | RF605QDVX2 FP AA | 26093-A |
MODELS
The models covered by this manual are listed on the front cover. The information detailed in this manual is subject to change without notice. The latest version is indicated by the reprint date and replaces any earlier editions.
KIT PARTS
Where a part number is shown against the descriptions for kit components, they are also available as separate items. In addition, some parts may be supplied with these kits that are not available as separate items, and are therefore either not listed, or a part number is not shown against the part description in this manual.
PARTS LIST KEY
| NI | As a part reference, indicates the part is not illustrated on the diagram. |
| NOT USED | As a part number, indicates the diagram part reference is not used in this manual. |
| NS | As a part number, indicates the part is not servicable. |

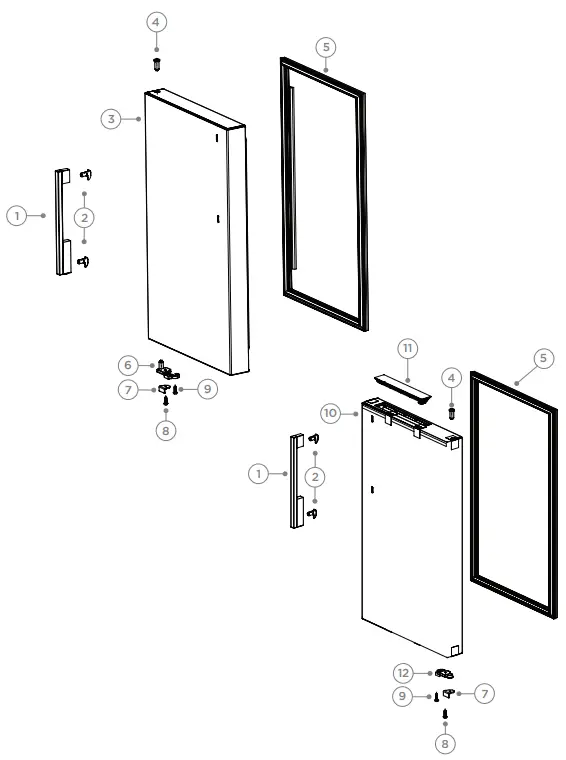

FC DOOR COMPONENTS
FC DOOR COMPONENTS
| REFERENCE | PART NUMBER | PART DESCRIPTION |
| 1 | H0060841821B | HANDLE D3 FC 323 |
| includes 819646P | SCREW M5X40 CAP (PKT 10) | |
| includes 837467P | SCREW CAP M5X14 (PKT 10 | |
| 2 | H0060117168 | HANDLE BOSS |
| 3 | H0060851898 | DOOR FC LH |
| includes H0060843951 | GASKET FC | |
| 4 | H0060219812 | BEARING DOOR FC |
| 5 | H0060843951 | GASKET FC |
| 6 | H0060229611 | CLOSING HOOK LH |
| 7 | H0060117465 | DOORSTOP |
| 8 | H004HR49G05R | SCREW (CLOSING HOOK) |
| 9 | H0060802013 | SCREW |
| 10 | H0060851899 | DOOR VTZ RH |
| includes H0060843951 | GASKET FC | |
| 11 | H0060853022 | DISPLAY VTZ ASSY |
| 12 | H0060229662B | CLOSING HOOK VTZ RH |
| NI | 837467P | SCREW CAP M5X14 (PKT 10 |
| NI | 819646P | SCREW M5X40 CAP (PKT 10) |

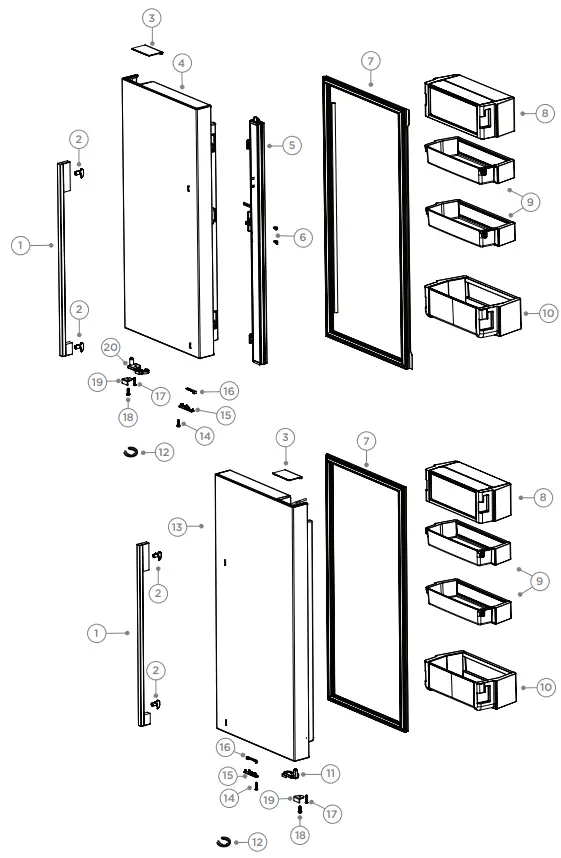

| REFERENCE | PART NUMBER | PART DESCRIPTION |
| 1 | H0060841821A | HANDLE D3 PC 672 |
| includes 819646P | SCREW M5X40 CAP (PKT 10) | |
| includes 837467P | SCREW CAP M5X14 (PKT 10) | |
| 2 | H0060117168 | HANDLE BOSS |
| 3 | H0060234814 | COVER ENDCAP |
| 4 | H0060851897 | DOOR PC LH |
| includes H0060843952C | GASKET PC FRENCH DOOR | |
| 5 | H0060851911 | FLAPPER ASSY |
| 6 | H0060600186 | SCREW FLAPPER |
| 7 | H0060843952C | GASKET PC FRENCH DOOR |
| 8 | H0060851920 | SHELF DAIRY ASSY |
| 9 | H0060851916 | SHELF WINDOW ASSY |
| 10 | H0060851922 | SHELF GALLON ASSY |
| 11 | H0060229662 | CLOSING HOOK RH |
| 12 | H0060163463 | PACKER SPLIT CIRCLIP – FOR DOOR/HINGE ADJUSTMENTS |
| 13 | H0060851896A | DOOR PC RH |
| includes H0060851912 | GASKET PC | |
| 14 | H0040600024 | SCREW UNDER DOOR LIGHT |
| 15 | H0060229039 | COVER UNDER DOOR LIGHT |
| 16 | H0064001874B | PCB LED UNDER DOOR LIGHT |
| 17 | H0060802013 | SCREW |
| 18 | H004HR49G05R | SCREW (CLOSING HOOK) |
| 19 | H0060117465 | DOORSTOP |
| 20 | H0060229611 | CLOSING HOOK LH |
| NI | 837467P | SCREW CAP M5X14 (PKT 10) |
| NI | 819646P | SCREW M5X40 CAP (PKT 10) |

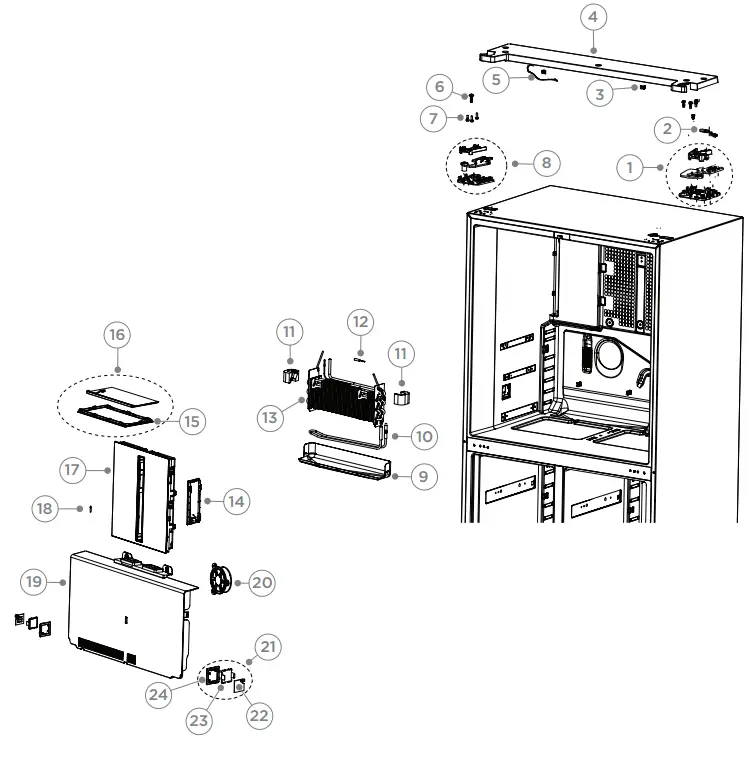

CABINET & HINGE COMPONENTS
| REFERENCE | PART NUMBER | PART DESCRIPTION |
| 1 | H0060121022 | HINGE TOP RH ASSY |
| includes | HINGE TOP RH | |
| includes | GUIDE TUBE RH | |
| includes | SPACER TOP HINGE RH | |
| 2 | H0064000500 | SENSOR HUMIDITY |
| 3 | H0064001332 | DOOR SWITCH |
| 4 | H0060234769 | COVER HINGE TOP |
| 5 | H0064000024 | SENSOR TYPE A |
| 6 | H0060600044 | SCREW M5X16 |
| 7 | H0064098028 | SCREW COMBINATION |
| 8 | H0060853487 | HINGE TOP LH ASSY |
| includes | GUIDE TUBE LH | |
| includes | HINGE TOP LH | |
| includes | SPACER TOP HINGE LH | |
| 9 | H0060115218 | TRAY DEFROST PC |
| 10 | H0064002164 | HEATER DEFROST PC |
| 11 | H0060225749 | SPACER EVAPORATOR PC |
| 12 | H0064000025 | SENSOR TYPE B |
| 13 | H0060704478 | EVAPORATOR PC |
| 14 | H0060853023 | DISPLAY INTERNAL UI 7-SEG |
| 15 | H0060234717 | FRAME LIGHT CEILING |
| 16 | H0060852593 | LIGHT CEILING ASSY |
| includes H0060234717 | FRAME LIGHT CEILING | |
| 17 | H0060851844 | DUCT PC ASSY UPPER |
| 18 | H0064000024 | SENSOR TYPE A |
| 19 | H0060851843 | DUCT PC ASSY LOWER |
| 20 | H0064001939B | FAN FC VTZ |
| 21 | H0060852594 | LIGHT SIDE ASSY |
| includes H0064002091 | PCBA SIDE LIGHT | |
| includes H0060234718 | LENS SIDE LIGHT | |
| includes H0060234719 | FRAME SIDE LIGHT | |
| 22 | H0064002091 | PCBA SIDE LIGHT |
| 23 | H0060234718 | LENS SIDE LIGHT |
| 24 | H0060234719 | FRAME SIDE LIGHT |

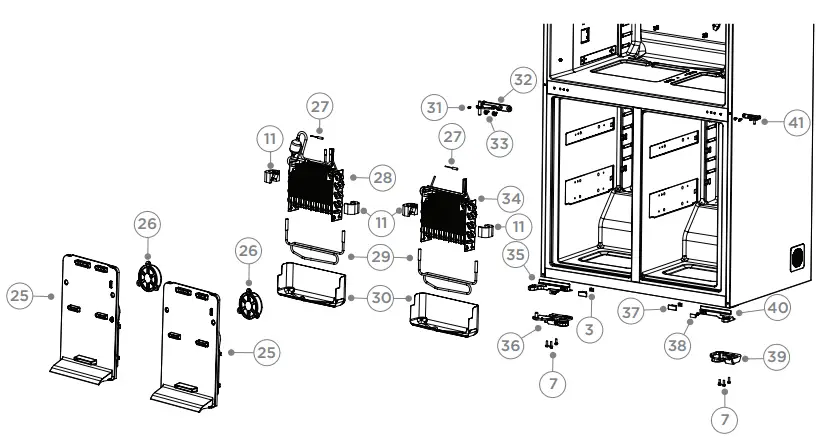

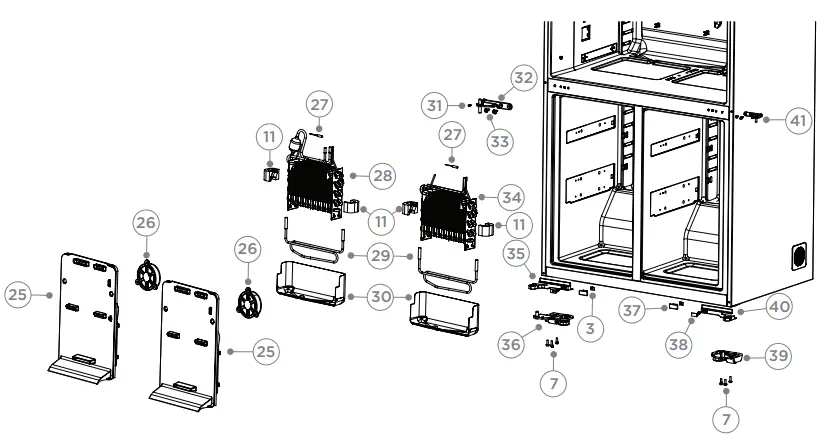

| REFERENCE | PART NUMBER | PART DESCRIPTION |
| 25 | H0060851838 | DUCT FC VTZ ASSY |
| 26 | H0064001939B | FAN FC VTZ |
| 27 | H0064000025 | SENSOR TYPE B |
| 28 | H0060705278 | EVAPORATOR FC |
| 29 | H0064001692 | HEATER DEFROST FC VTZ |
| 30 | H0060117739 | TRAY DEFROST FC VTZ |
| 31 | H0064082855 | SCREW CROSS GROOVE SELF ATTACH |
| 32 | H0060121470 | HINGE MID LH |
| 33 | H0060600429 | SCREW MIDDLE HINGE |
| 34 | H0060705279 | EVAPORATOR VTZ |
| 35 | H0060234712 | COVER HINGE BTM LH |
| 36 | H0060851831 | HINGE BTM LH ASSY |
| 37 | H0060235700 | COVER SWITCH |
| 38 | H0060235699 | CAP SCREW |
| 39 | H0060851832 | HINGE BTM RH ASSY |
| 40 | H0060235698 | COVER HINGE BTM RH |
| 41 | H0060121471 | HINGE MID RH |

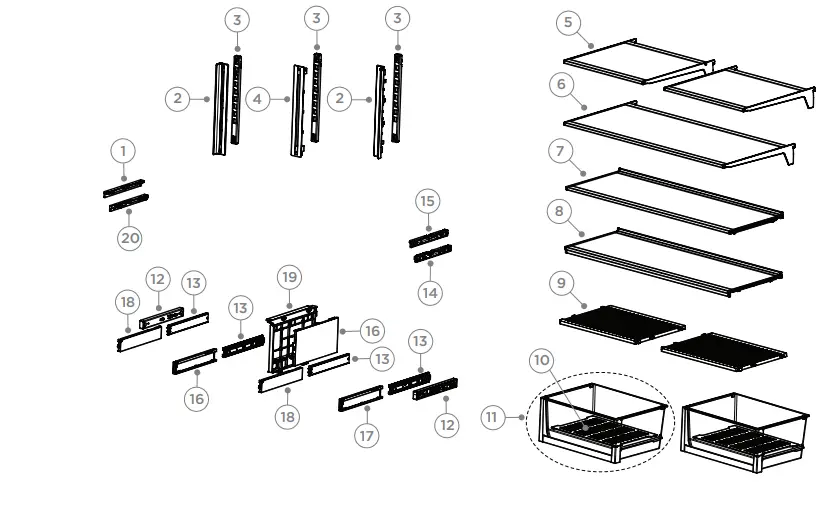

BINS SHELVES & RACK COMPONENTS
| REFERENCE | PART NUMBER | PART DESCRIPTION |
| 1 | H0060235609 | RETAINER SHELF FIXED LH |
| 2 | H0060235033 | COVER RAIL CANTILEVER SIDE |
| 3 | H0060121585 | RAIL CANTILEVER |
| 4 | H0060235034 | COVER RAIL CENTILEVER MIDDLE |
| 5 | H0060852664A | SHELF CANTILEVER HALF ASSY |
| 6 | H0060852665A | SHELF CANTILEVER FULL ASSY |
| 7 | H0060852666A | SHELF FIXED ASSY |
| 8 | H0060852667A | SHELF HCL ASSY |
| 9 | H0060852987 | LID HCL |
| 10 | H0060235583 | MAT BIN PC |
| 11 | H0060851877 | BIN PC |
| includes H0060235583 | MAT BIN PC | |
| 12 | H0060235598 | RETAINER SLIDE PC |
| 13 | H0060852710 | SLIDE PC LH |
| 14 | H0060235610A | RETAINER SHELF HCL RH |
| 15 | H0060235609A | RETAINER SHELF FIXED RH |
| 16 | H0060235430 | COVER RETAINER CENTER |
| 17 | H0060235655A | COVER SLIDE PC RH |
| 18 | H0060235655 | COVER SLIDE PC LH |
| 19 | H0060235429 | RETAINER CENTER |
| 20 | H0060235610 | RETAINER SHELF HCL LH |

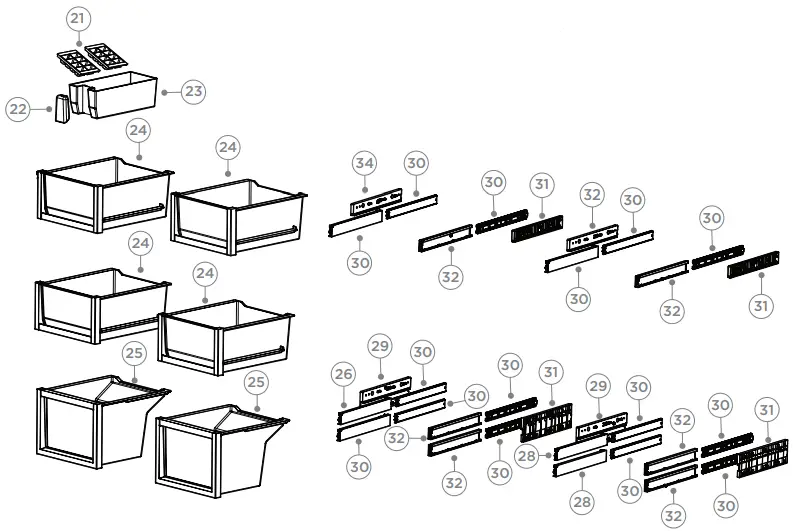

| 21 | H0060240576 | TRAY ICE MANUAL |
| 22 | 836929 | SCOOP ICE |
| 23 | H0060235013 | BIN ICE |
| 24 | H0060851875 | BIN COMMON FC VTZ |
| 25 | H0060851876 | BIN BTM FC VTZ |
| 26 | H0060235656 | COVER SLIDE FC LH |
| 27 | H0060235647A | RETAINER SLIDE BTM FC RH |
| 28 | H0060852711 | SLIDE BIN FC LH |
| 29 | H0060235647 | RETAINER SLIDE BTM FC LH |
| 30 | H0060235656A | COVER SLIDE FC RH |
| 31 | H0060235646 | RETAINER SLIDE TOP FC LH |
| 32 | H0060235646A | RETAINER SLIDE TOP FC RH |
| NI | 860593 | BOTTLE HOLDER SINGLE ASSY |

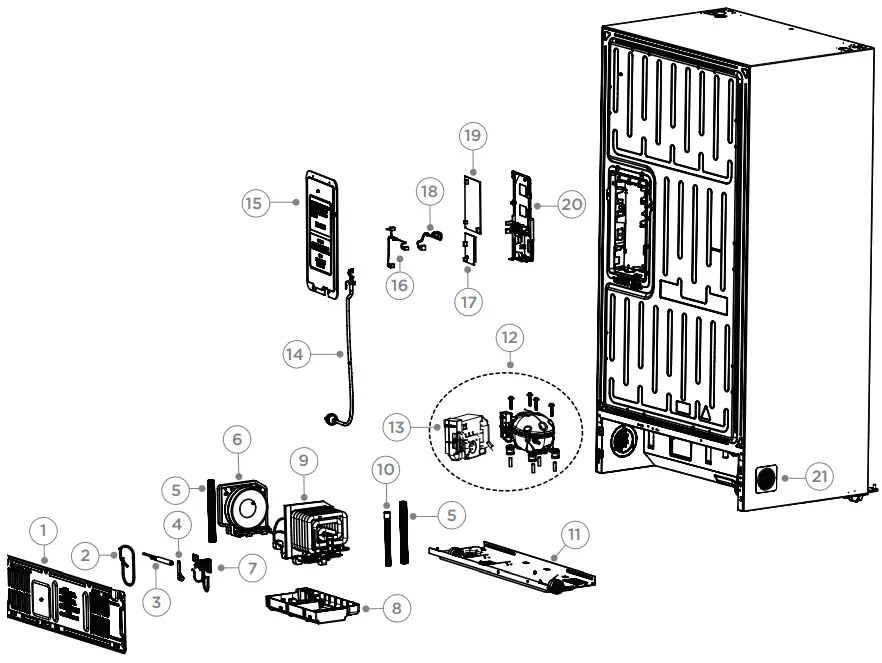

COMPRESSOR COMPONENTS
| REFERENCE | PART NUMBER | PART DESCRIPTION |
| 1 | H0060850056 | COVER UNIT COMPARTMENT |
| 2 | H0060703766 | CONNECTOR SUCTION TUBE |
| 3 | H0060703954A | FILTER DRIER |
| 4 | H0060110934 | CLIP FILTER DRYER |
| 5 | H0060229679 | DRAIN PIPE |
| 6 | H0060852717 | FAN CONDENSER |
| 7 | H0064001912 | VALVE REFRIGERANT |
| 8 | H0060233828 | TRAY EVAPORATING |
| 9 | H0060705764 | CONDENSER |
| 10 | H0060853657 | TUBE DRAIN PC |
| 11 | H0060850071 | BASE PLATE UNIT COMPARTMENT |
| 12 | H0060705946E | COMPRESSOR ASSY |
| includes H0061800484E | INVERTER | |
| includes | SCREWS | |
| includes | POSTS | |
| includes | GROMMETS | |
| 13 | H0061800484E | INVERTER |
| 14 | H0060401749F | CABLE POWER NZ/AU |
| 15 | H0060120992 | COVER CONTROL MODULE |
| 16 | H0060403142A | CABLE LN NON IW |
| 17 | H0061800499 | CONTROL BOARD |
| 18 | H0060403143 | CABLE 12V |
| 19 | H0061800529 | CONTROLLER MAIN |
| 20 | H0060236479 | HOUSING CONTROL MODULE |
| 21 | H0060232956 | COVER AIR VENT SQUARE |
