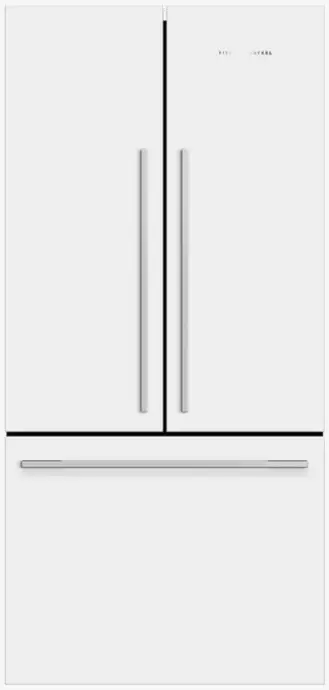

RF522ADW5 790mm French Door Fridge
User Guide
RF522ADW5 790mm French Door Fridge
QUICK REFERENCE GUIDE > RF522ADW5
Freestanding French Door Refrigerator Freezer, 79cm, 487L
Series 7 | Contemporary
White | French hinge
Designed for those who need plenty of flexible space for their cold and frozen food storage, with a classic white finish.
- ActiveSmartTM technology helps keep food fresher for longer by constantly maintaining the ideal temperature.
- A spacious bottom freezer with a full extension drawer gives easy access to frozen goods.

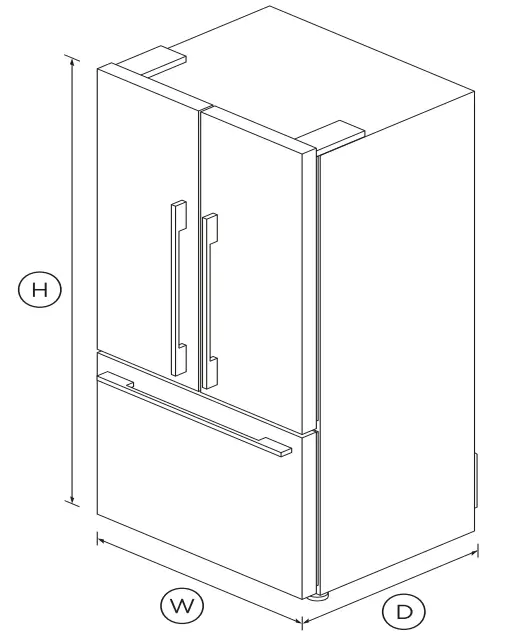

DIMENSIONS
| Height | 1715mm |
| Width | 790mm |
| Depth | 695mm |
SPECIFICATIONS
| Capacity | |
| Total net volume | 487L |
| Volume | 487L |
| Volume freezer | 142L |
| Volume refrigerator | 345L |
| Consumption | |
| Energy consumption | 361kWh/year |
| Energy rating | F |
| Energy usage | 412kWh/year |
| Features | |
| Adjustable glass shelves | 2 |
| Adjustable half-width door | 2 |
| Covered door shelves | 2 |
| Door alarm | • |
| Front levelling feet | • |
| Full extension runners | • |
| Full width door shelves | 2 |
| LED lighting | • |
| Rear rollers | • |
| Single bottle holders | 4 |
| SmartTouch control panel | • |
| Freezer Features | |
| Bottle chill | • |
| Fast freeze | • |
| Freezer bins | 3 |
| Performance | |
| ActiveSmart™ Foodcare | • |
| Adaptive defrost | • |
| Frost free freezer | • |
| Humidity control system | • |
| Inverter controlled compressor | • |
| R600a refrigerant | • |
| Sabbath mode | • |
| Power requirements | |
| Rated current | 10A |
| Supply frequency | 50Hz |
| Supply voltage | 230V |
| Product dimensions | |
| Depth | 695mm |
| Height | 1715mm |
| Height to top of the cabinet | 1715mm |
| Width | 790mm |
| Warranty | |
| Parts and labour | 5 years |
| Sealed system parts only | additional 3 years |
| SKU | 26411 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
