QUICK REFERENCE GUIDE > RF522ADX5
Freestanding French Door
Refrigerator, 79cm, 487L
Series 7 | Contemporary
Stainless Steel | French hinge

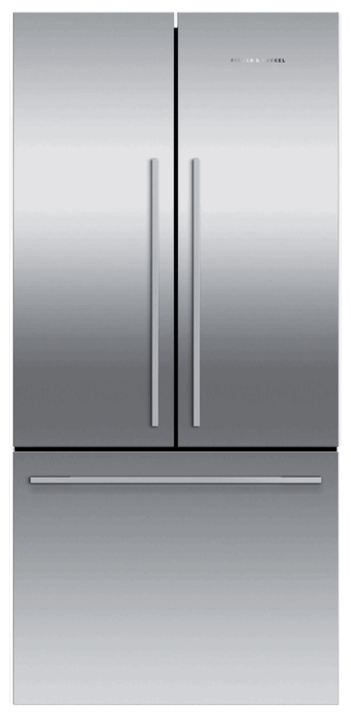

RF522ADX5 Freestanding French Door Refrigerator
Designed for those who need plenty of flexible space for their cold and frozen food storage.
- ActiveSmart™ technology helps keep food fresher for longer by constantly maintaining the ideal temperature.
- Spacious bottom freezer with full extension drawer gives easy access to frozen goods.

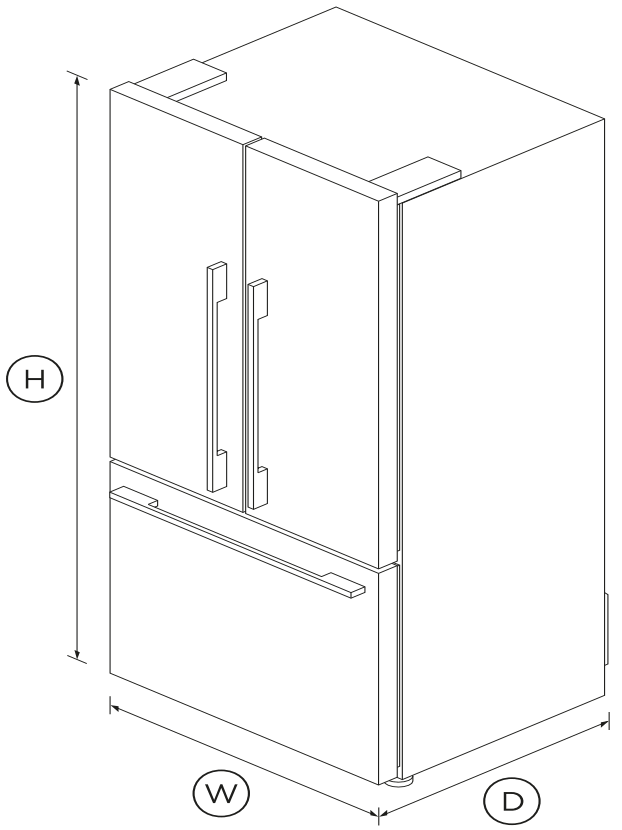

DIMENSIONS
| Height | 1715 mm |
| Width | 790 mm |
| Depth | 695 mm |
FEATURES & BENEFITS
ActiveSmart™ Foodcare
Every time you open your refrigerator, the temperature around your food changes. ActiveSmart™ foodcare adjusts airflow to create a stable temperature, helping your food stay fresher for longer.
Simple storage
This refrigerator is designed to make it simple for you to store, access and remove food. Storage bins give you full access inside when they’re pulled open and can be easily removed to clean.
Our flexible shelving also gives you more storage options.
Humidity control
Your fruit and veges need different environments. The humidity control slides in each storage bin create a microclimate that helps keep food fresher for longer.
Easy cleaning
No more permanent dirty marks with our EZKleen feature for stainless steel refrigerators.
Anti-fingerprint coating means you simply wipe clean any marks. Spill-safe secure glass shelves easily capture any drips or leaks.
Design quality
Our refrigerators are designed and built using quality materials. We use real stainless steel, and solid glass for shelving.
Clever energy
Your refrigerator adapts to daily use by cooling and defrosting only when needed. This means it uses only the energy it needs without compromising on food care.
Complementary design
With their premium handle styling and stainless steel finish, our refrigerators are designed to match the rest of Fisher & Paykel’s kitchen appliance family.
SPECIFICATIONS
| Accessories (sold separately) | |
| Stainless steel surround kit | Part number 25849 |
| Capacity | |
| Freezer | 142L |
| Refrigerator | 345L |
| Total net volume | 487L |
| Consumption | |
| Energy consumption | 361kWh/year |
| Energy rating | F |
| Freezer features | |
| Bottle chill | • |
| Door alarm | • |
| Fast freeze | • |
| Ice bin and scoop | • |
| Ice trays | 2 |
| Large plastic bin | • |
| Small plastic bins | 2 |
| Performance | |
| ActiveSmart™ Foodcare | • |
| ActiveSmart™ technology | • |
| Adaptive defrost | • |
| Frost free | • |
| Frost free freezer | • |
| Humidity control system | • |
| Inverter controlled compressor | • |
| Noise emissions | 42dBA |
| Noise emissions class | D |
| R600a refrigerant | • |
| Sabbath mode | • |
| Power Requirements | |
| Supply voltage | 220 – 240V |
| Product dimensions | |
| Depth | 695 mm |
| Height | 1715 mm |
| Minimum air clearance – each | 20 mm |
| Minimum air clearance – on top | 50 mm |
| Width | 790 mm |
| Refrigerator features | |
| Adjustable door shelves | 6 |
| Adjustable glass shelves | 3 |
| Covered door shelves | 2 |
| Door alarm | • |
| Front levelling feet | • |
| Fruit and vegetable bins | 2 |
| Full extension runners | • |
| Full width door shelves | 2 |
| LED lighting | • |
| Rear rollers | • |
| Single bottle holders | 4 |
| SmartTouch control panel | • |
| Stackable bottle holders | 4 |
| Ultra slim water dispenser | • |
| Warranty | |
| Parts and labour | 5 years |
| Sealed system parts only | 5 years |
| SKU | 26024 |
TEST The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
