BEGA 50 183.2 Ceiling Luminaire

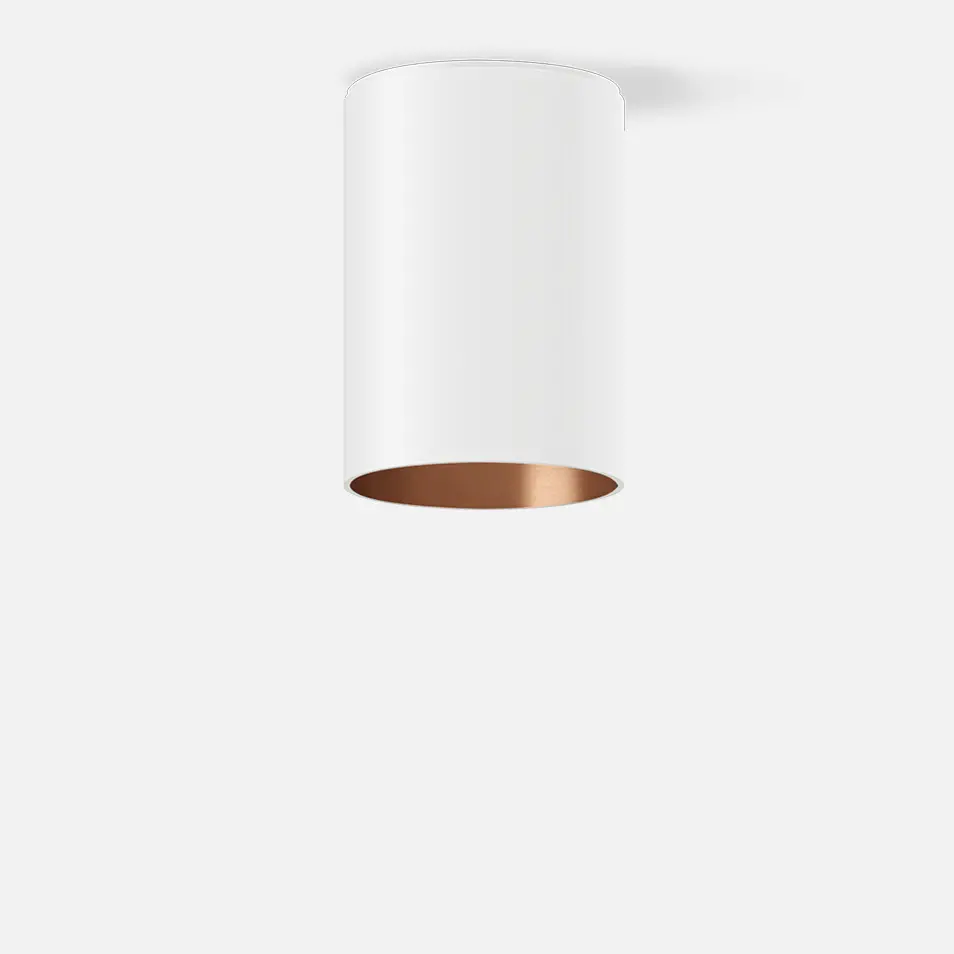

BEGA-50-183-2-Ceiling-Luminaire-PRODUCT

Product Information

ComponentValue
Lamp Module connected wattage8.9 W
Luminaire connected wattage10.6 W
Rated temperature25-40 °C
Ambient temperature25-40 °C
Module designationLED-0623/930
Colour temperature3000 K
Colour rendering index (CRI)>90
Module luminous flux1135 lm
Luminaire luminous flux *446 lm
Luminaire luminous efficiency *42.1 lm/W

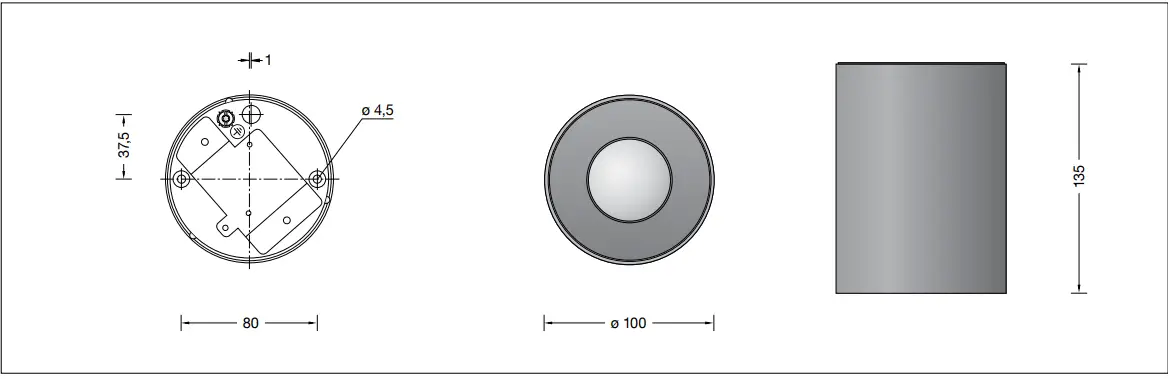

DIMENSION

BEGA-50-183-2-Ceiling-Luminaire-FIG-1

Preliminary data
For more detailed luminaire data, including data for outdoor lighting, street lighting, and indoor lighting, as well as luminaire data in EULUMDAT and IES format, please visit the BEGA website at www.bega.com.

Product Usage Instructions

  1. The installation and operation of this luminaire should be carried out in accordance with national safety regulations.
  2. Installation and commissioning should only be performed by a qualified electrician.
  3. Improper use or installation may result in damage for which the manufacturer accepts no liability.
  4. If any modifications are made to the luminaire, the person responsible for these modifications will be considered the manufacturer.

Spares

The following spares are available:

  • Shield
  • LED power supply unit
  • LED module 3000 K

Product Code: 42 000 029 .1L DEV-0136/500 LED-0623/930

Instructions for use

Application

  • Ceiling luminaire · indoor luminaire with aluminium housing for non-glare light deflected downwards.
  • The used LED technique offers durability and optimal light output with low power consumption at the same time.

Product Description

  • Ceiling luminaire »STUDIO LINE«
  • Aluminium housing shield,
  • Finish Colour velvet black inside hue aluminium matt
  • Light-diffusing silicone lens
  • Mounting plate with 2 fixing holes ø 4.5 mm · 80 mm spacing
  • Connecting terminals 2.5@
  • Earth conductor connection
  • LED power supply unit 220-240 V x 0/50-60 Hz
  • DC 176-280 V
  • Safety class I
    • r – Safety mark
    • c  – Conformity mark
  • Weight: 0.45 kg

This product contains light sources of energy efficiency class(es) E

Safety

  • The installation and operation of this luminaire are subject to national safety regulations. Installation and commissioning may only be carried out by a qualified electrician.
  • The manufacturer accepts no liability for damage caused by improper use or installation. If subsequent modifications are made to the luminaire, the person responsible for these modifications shall be considered the manufacturer.

Lamp

  • Module connected wattage 8.9 W
  • Luminaire connected wattage 10.6 W
  • Rated temperature ta=25 °C
  • Ambient temperature ta max=40 °C

50 183.2K3

  • Module designation LED-0623/930
  • Colour temperature 3000 K
  • Colour rendering index CRI > 90
  • Module luminous flux 1135 lm
  • Luminaire luminous flux * 446 lm
  • Luminaire luminous efficiency * 42,1 lm/Wpreliminary data

Lighting technology
Luminaire data for the DIALux lighting design program for outdoor lighting, street lighting and indoor lighting, as well as luminaire data in EULUMDAT and IES format are available on the BEGA website at www.bega.com.BEGA-50-183-2-Ceiling-Luminaire-FIG-2

Cleaning  Maintenance

Clean luminaire regularly with solvent-free cleansers from dirt.

Replacement of the LED module

  • The designation of the LED module is noted on a label in the luminaire.
  • The light colour and light output of BEGA replacement modules correspond to those of the modules originally fitted. The module can be replaced by qualified persons using standard tools.
  • Disconnect the system.

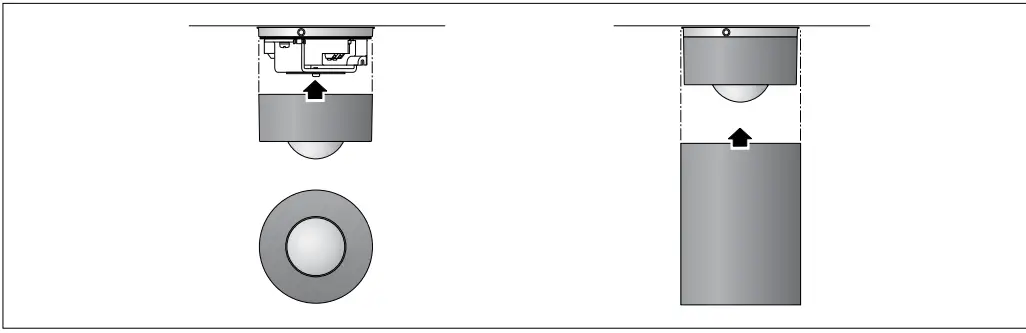

  • Pull housing shield off the mounting plate. Open the luminaire.
  • Please follow the installation instructions for the LED module. Close the luminaire.
  • Pass the housing shield with its inner groove to the front over the LED cover until the housing shield latches in place audibly.

Spares

  • Shield 42 000 029 .1L
  • LED power supply unit DEV-0136/500
  • LED module 3000 K LED-0623/930
