ASE 165 S AUDITOR Speakers
User Manual
With a mounting depth of only 4.8cm, the ASE 165 S component kit is dedicated to invisible installations in vehicles with little available depth in the doors. For nearly 20 years Auditor has benefited from many upgrades and has built its reputation around its reliability and its acoustic qualities which are unique to Focal and offered at a very attractive price. Combined with electronics or directly connected to the vehicle’s original amplifier, this kit will considerably improve the audio experience in any type of cabin.
Key points
- Developed in France by Focal
- Ultra-shallow design
- Easy to amplify loudspeakers
- Black lacquered finish on the tweeter
- Exclusive Focal technologies
- Can be surface mounted or fully integrated
| Type | 2-way shallow component kit |
| Woofer | 165mm |
| Depth | 48.5mm |
| Cone | Polypropylene |
| Maximum power | 110W |
| Nominal power | 55W RMS |
| Sensitivity (2.83V/1m) | 91dB |
| Frequency response | 60Hz – 21kHz |
| Impedance | 4 Ω |
| Voice-coil diameter | 25mm |
| Magnet | Ferrite |
| Suspension | Butyl |
| Tweeter | Inverted dome tweeter |
| Crossover | Crossover box |

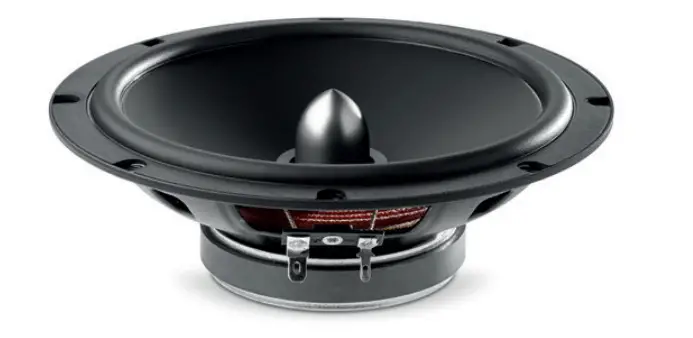

6.5″ Woofer
- PP membrane, natural sound
- Inverted dome Mylar tweeter
- Compact dimensions, easy to install
SPECIFICATIONS
| Nominal power | 70W |
| Maximum power | 140W |
| Sensitivity | 93dB |
| Nom. impedance | 4 Ω |
| Frequency response | 60Hz-21kHz |
| Cone | Polypropylene |
| Surround | Butyl |
| VC diameter | 25mm 1″ |
| Net weight | 750g |

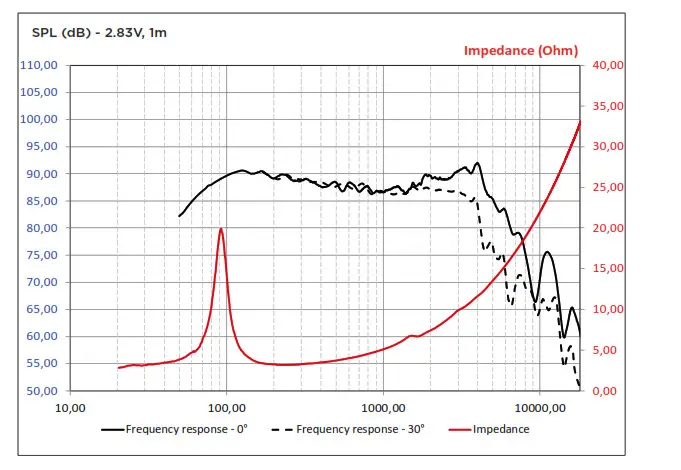

FREQUENCY RESPONSE/IMPEDANCE
PARAMETERS
| Rdc | 2.9 Ω |
| Fs | 90Hz |
| Mms | 14g |
| Cms | 0.23mm/N |
| Vas | 5.8 l |
| Qts | 1 |
| Qes | 1.3 |
| Qms | 7 |
| Bxl | 4.3 N/A |
| Sd | 137cm |

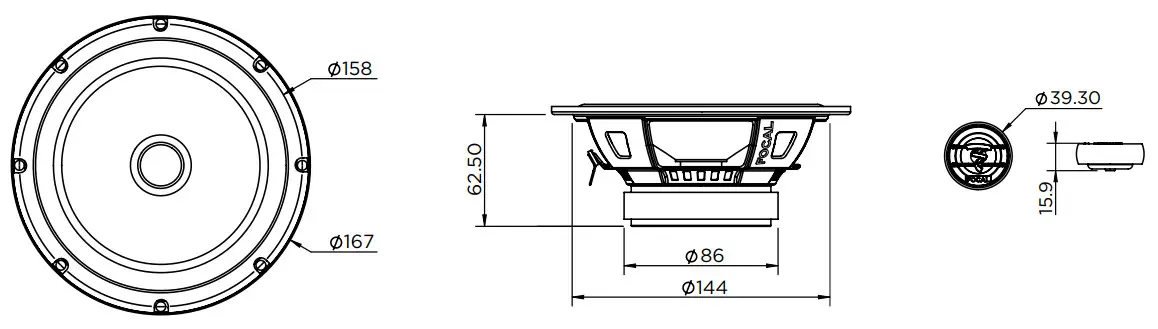

MECHANICAL DRAWING
Focal® is a trademark of Focal-JMLab® – www.focal.com – SCCG – 17/11/2021 – v1
