Focal Auditor Acx 100 Door Dash Coaxial Speakers User Manual

FOCAL AUDITOR ACX 100 Door Dash Coaxial Speakers

READ FIRST!

IMPORTANT SAFETY INSTRUCTIONS!

	The exclamation mark represented in an equilateral triangle is intended to alert users to the existence of important instructions in the user manual relating to the use and maintenance of the device.
Read these instructions. Keep these instructions. Heed all the warnings. Follow all theinstructions. To avoid damaging your hearing, do not listen to loudspeakers at high volumes for long periods of time. Listening to loudspeakers at high volumes can cause damage to the user’s ears and may lead to hearing problems (temporary or permanent deafness, buzzing in the ears, tinnitus, hyperacusis). Exposure to excessive volumes (over 85 dB) for more than one hour can cause irreparable damage to your hearing.	6. If a subwoofer is installed in your vehicle, it is important to secure it firmly. We recommend that you attach the enclosure to the floor or chassis of the vehicle for safety. If the subwoofer is not properly secured, it could become a projectile in the event of an accident. This point is even more important if the subwoofer is installed in a hatchback, a station wagon, a utility vehicle or a van.	7.   If cables or harnesses are provided, use them the proper way (like mentioned in this user manual) without replacing or modifying them. 8. If a fuse is included in the kit or harness, use only same rating one in case of replacement.

Specifications

Please validate your Focal-JMlab warranty, it is now possible to register your product online: www.focal.com/warranty

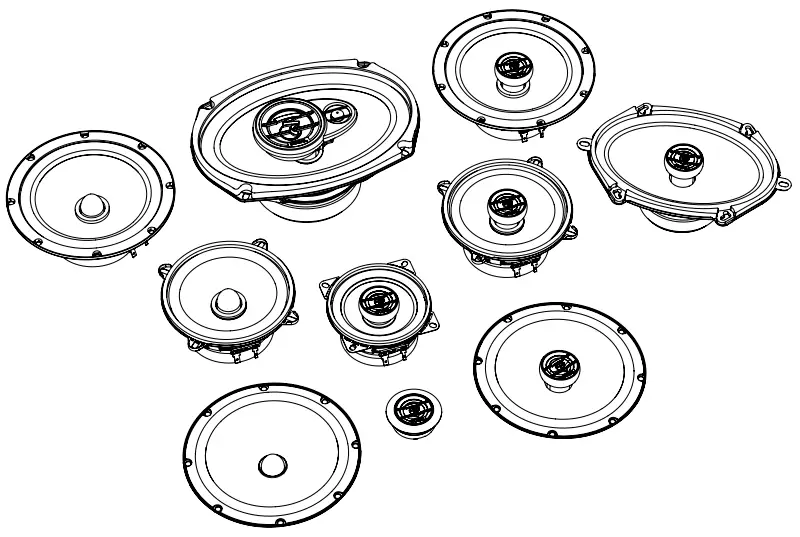

Thank you for choosing Focal kits AUDITOR ACX 100, AUDITOR ACX 130, AUDITOR ACX 165, AUDITOR ACX 165 S, AUDITOR ACX 570, AUDITOR ACX 690, AUDITOR ASE 130, AUDITOR ASE 165, AUDITOR ASE 165 S, and for sharing our passion for sound and for music. Designed using acoustic technologies, these speakers integrate Focal’s perfectionist believes, developing products with high power handling, and unrivalled sound quality. To obtain the best results from this product, we recommend that you follow carefully all the information contained in this user’s manual. If not correctly followed, any fault observed may not be covered by the warranty.

Important recommendations

First of all, check the space available for fitting the speaker drivers (refer to the plans on the packaging) then proceed with the cutting required. If mounted in the factory location, check that there is sufficient space between the speaker driver and the protective grille.

• Clear the speaker drivers of any metal shavings and dust particles.
• Clean carefully before mounting the speaker drivers.

Conditions of warranty

All Focal loudspeakers are covered by warranty drawn up by the official Focal distributor in your country. Your distributor can provide all details concerning the conditions of warranty. Warranty cover extends at least to that granted by the legal warranty in force in the country where the original purchase invoice was issued.

Our policy of continual product improvement means that Focal-JMlab reserves the right to modify the technical specifications of its products without notice. Product may vary from images.

Choosing the location

Before you begin installation, carefully choose where you would like to fit the speaker drivers. The location of each speaker driver will have an impact on the final acoustic rendering.

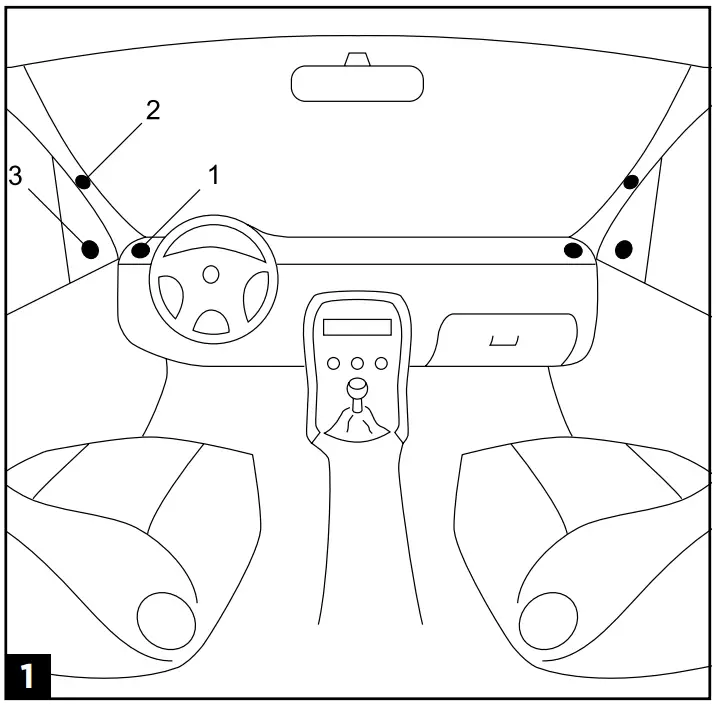

• Place the tweeters in one of the three locations shown in Fig. 1

  (ASE 130 | ASE 165 | ASE 165 S).
  Note: the closer the tweeter is to the listener’s ears, the higher the treble level. Adjusting the treble level on the source can compensate for these variations.

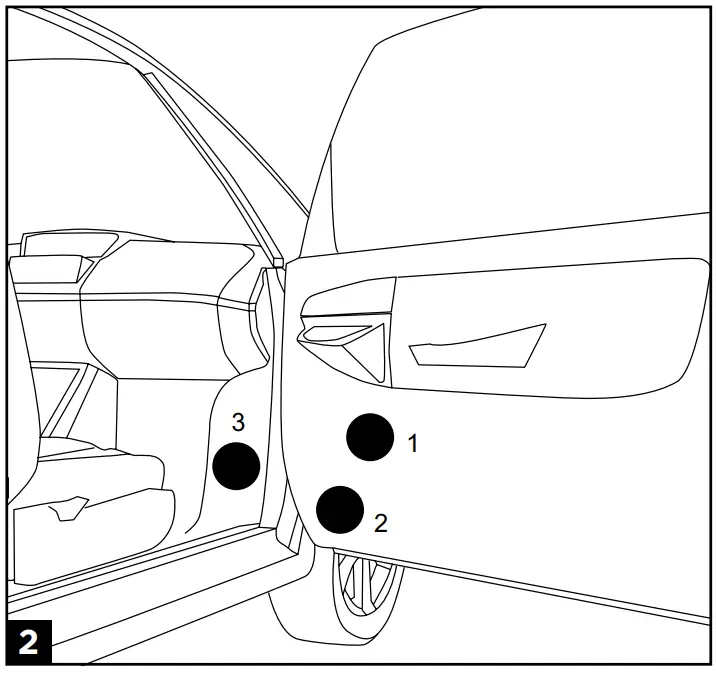

• Place the woofers in one of the three locations shown in Fig. 2.



Fitting the woofers

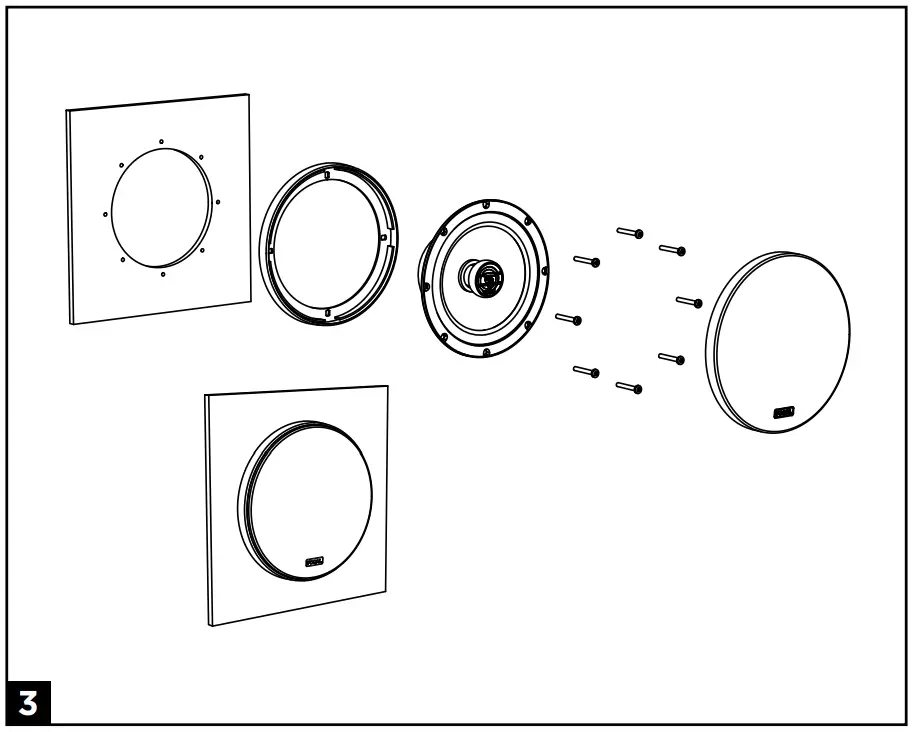

Once you have chosen the speaker driver location, attach it directly to the car door, or to a spacer using the screws provided. If the speaker driver is visible, fit the grille provided as shown in Fig. 3 to prevent any impact that could damage the woofer.

Fitting the tweeters

Once you have chosen the location, you can fit the tweeter in one of two ways

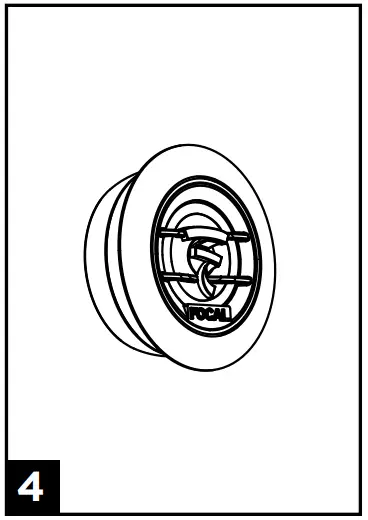

• If you choose to fit the tweeter to the surface, in a location that you have created, use Fig. 4 (Flush mount).

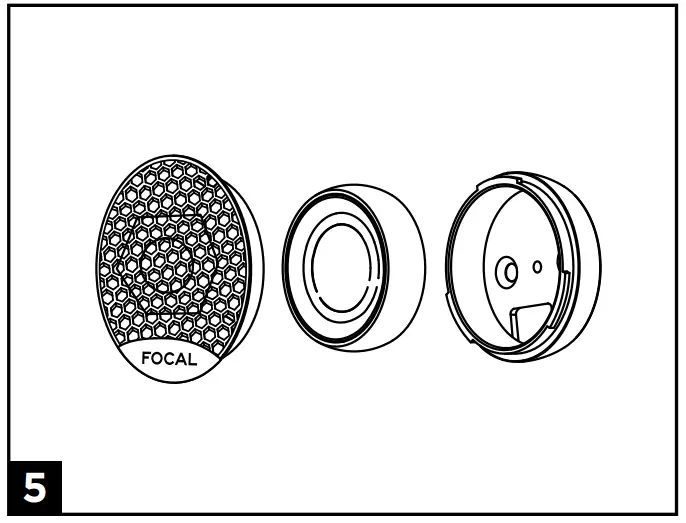

• If you install the tweeter in an existing location, you can remove the front and back to reduce its size and position it more easily (Fig. 5).


Connecting the product

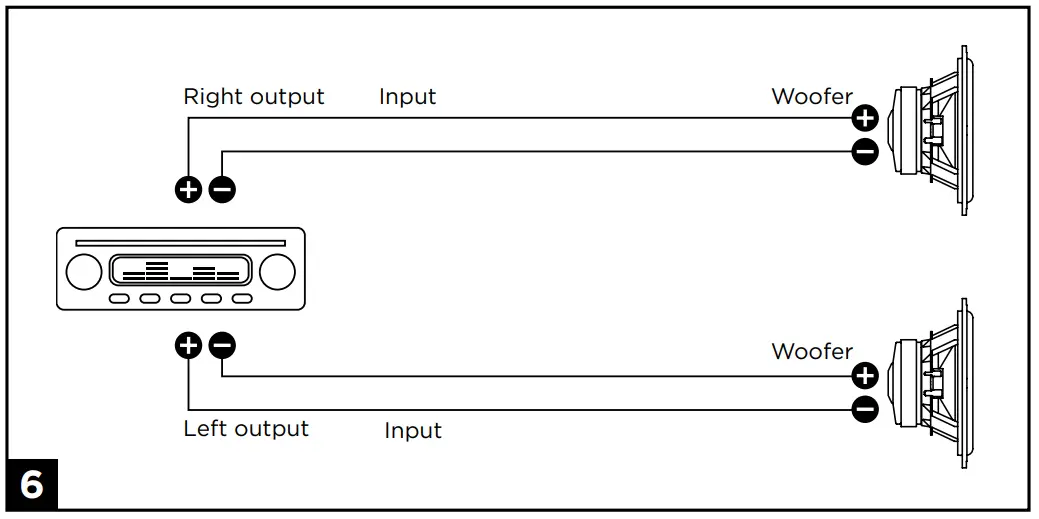

Coaxial kits (Fig. 6).

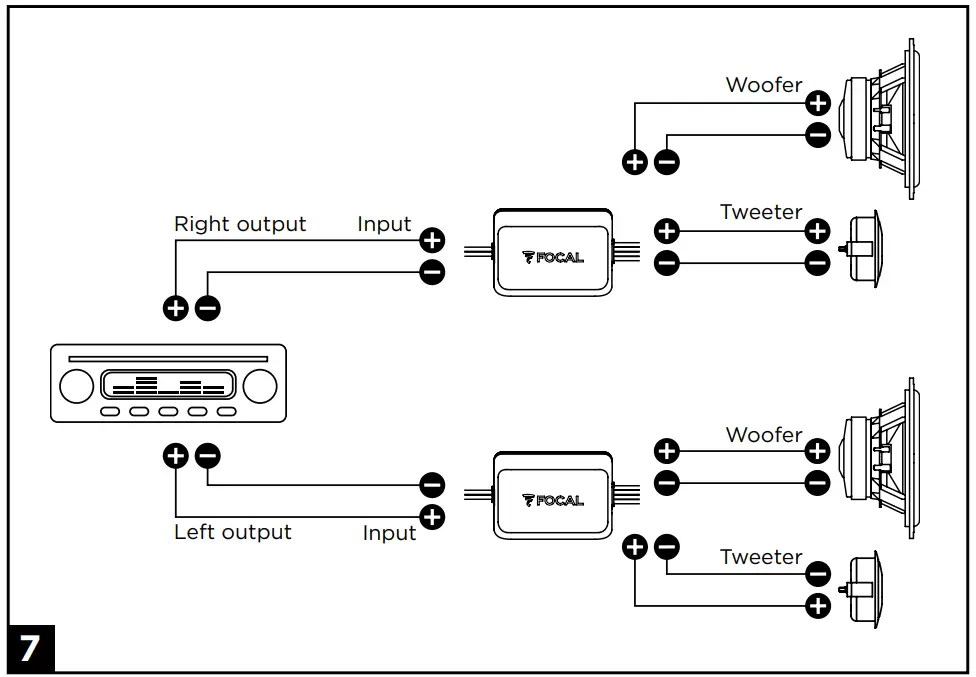

Component kits (Fig. 7).

Correct elimination of this product. This marking indicates that within the EU this product should not be disposed of with other household wastes. To prevent any risk to the environment or human health, please recycle them responsibly to encourage the reuse of material resources. To return your used device, please use the return and collection systems available, or contact the retailer where you purchased the product. They can recycle this product safely.

Focal-JMlab®
– BP 374 – 108, rue de l’Avenir
42353 La Talaudière cedex – France – www.focal.com
Tel. (+33) 04 77 43 57 00 – Fax (+33) 04 77 43 57 04
SCCG – 27/04/2021 – V1 – CODO1697
