Gear Box Breakout
for M81, M888, M98
Instruction Manual

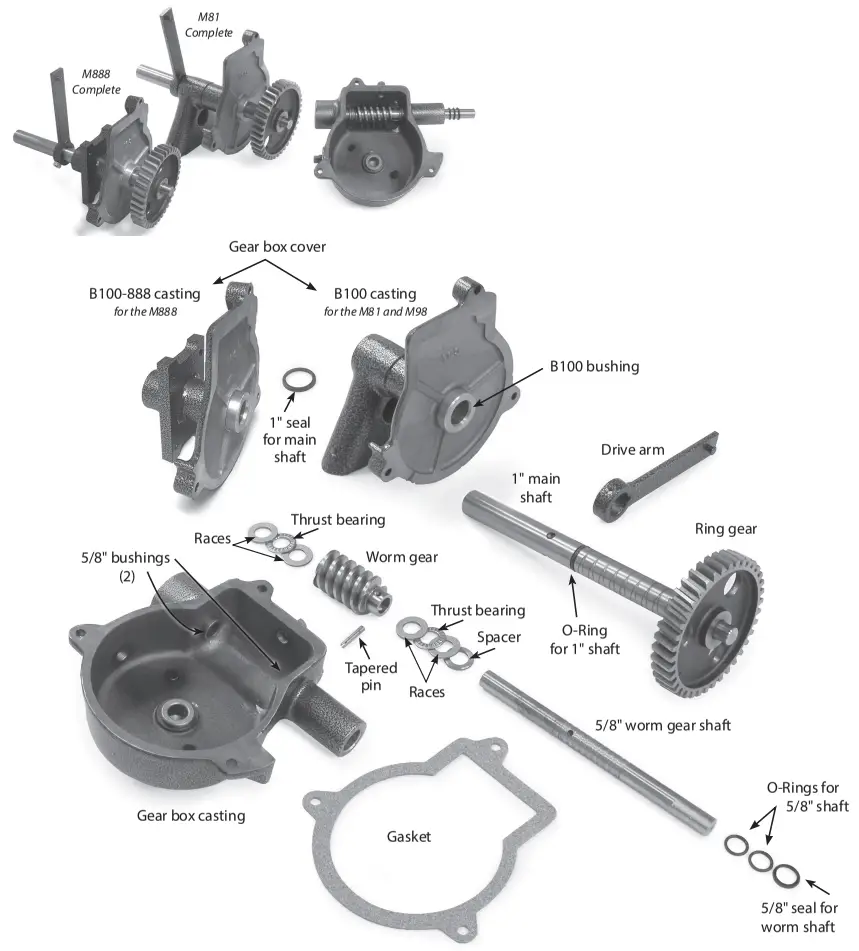

M81 Gear Box Breakout

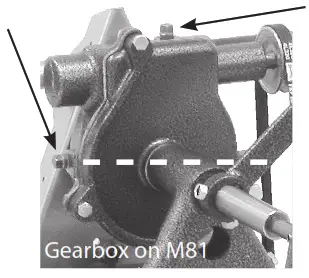

To check the oil level in the gearbox:
| 1. Remove the bolt on the left side of the gearbox. The oil level should be up to the level of this hole. |  | 2. To add oil, remove the bolt at the top of the gearbox and add more in that opening. Add only enough until it comes out the side opening. Don’t fill higher than this level. |
MyTana uses a 140 wt. hypoid gear lube (AGMA ISO 460 EP Industrial gear oil)
