D-Link® DIS-M100G-SW Quick Installation Guide
Industrial Gigabit Ethernet to Fiber Media Converter
About this Guide
This installation guide provides basic instructions for installing the DIS-M100G-SW. For additional information about how to use the media converter DIS-M100G-SW, please see the User Manual, which is available from the D-Link support website.
Package Content
- Gigabit Industrial Unmanaged Media Converter DIS-M100G-SW х1
- 4-pin terminal block х1
- Dust cover (RJ-45) х1
- Dust cover (SFP) х1
- Screw (М3 Х3) х8
- Wall-mounted kit х2
- 25mm DIN-rail kit х1
- Power cable with power jack х1
- Quick Installation Guide х1

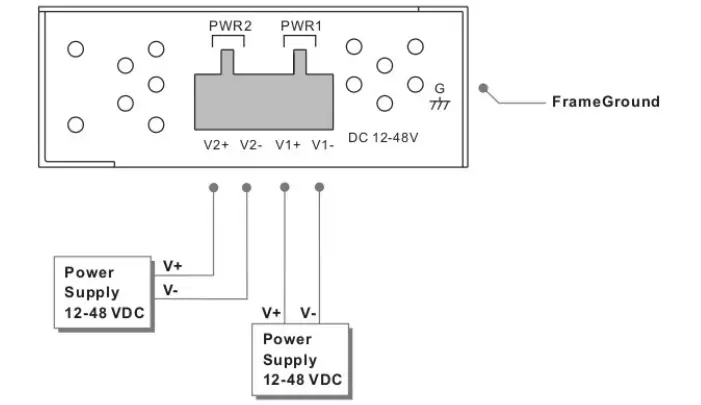

Power Connection

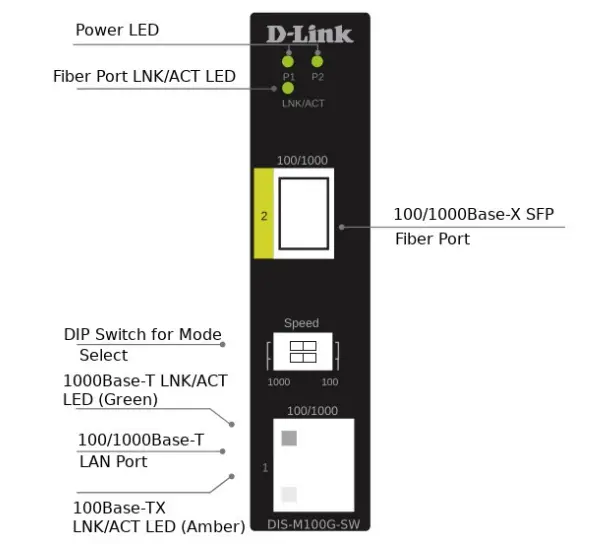

Front Panel
Installation

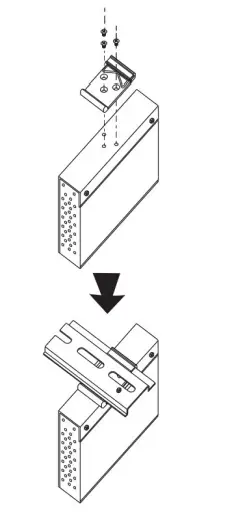

Din-Rail Install
Wall-mounted Install
