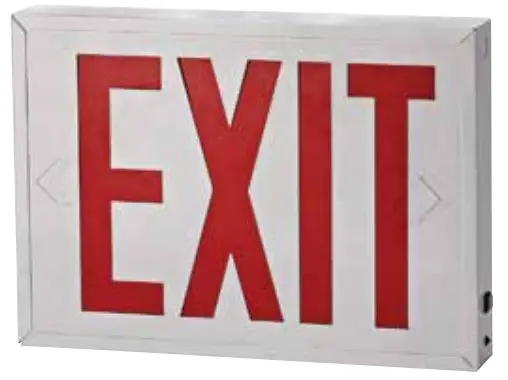

EL-7007RX-NYC LED Emergency Exit Sign
Owner’s Manual
LED EMERGENCY EXIT SIGN
EL-7007RX-NYC
Description
- 20 gauge steel housing in white finish
- 2-sided sign
- Wall, side or ceiling mountable
- Input Voltage: 120/277 VAC, 50/60Hz
- Super bright LED Strip
- Nickel Cadmium Battery 3.6V 600mAh
- Test switch and charge indicator light
- Overcharge & Over-discharge protection
- Backup time: 90 minutes
- Conversion time: <0.2 second
- IP Class: IP20
- Operating Temperature: 41 ºF ~ 95 ºF (5 ºC ~ 35 ºC)
- UL and New York City Approved
- 8″ high letters with 1” stroke
- 100ft viewing distance
- Meets UL924 standards
- Removable chevrons
Features
| Power on AC | 4/5.5W |
| Output Power on Battery | 1W |
| Input Voltage | 120/277 VAC |
| Frequency | 50/60 Hz |
| LED Type | Plug-in LED Strip |
| Battery Type | Ni-cd |
| Working Time | 90 Minutes |
| Charging Time | 24 Hours |

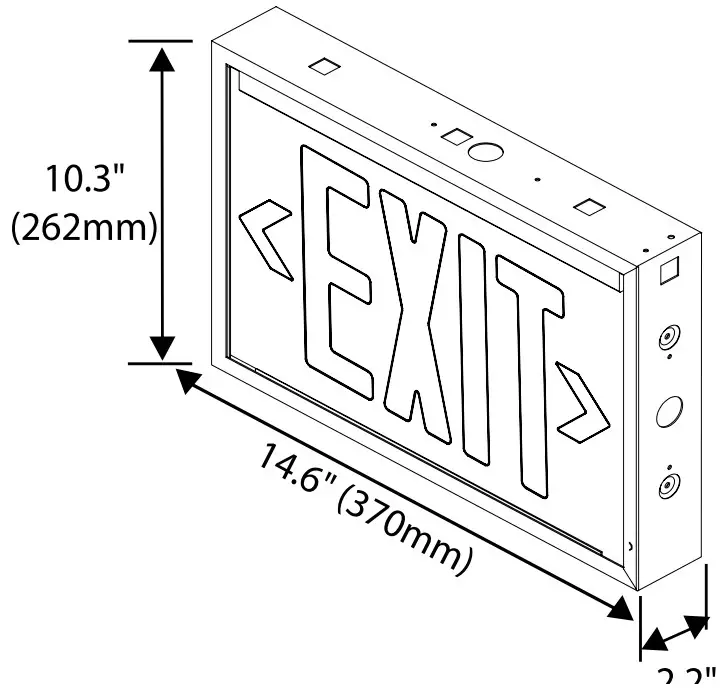

Technical Drawing
NEW YORK CITY APPROVED
Ordering Information
| Model | Description |
| EL-7007RX-NYC | LED Emergency Exit Sign – New York City Approved |
Canada
25 Interchange Way Vaughan, ON L4K 5W3
Telephone: (905) 660-4655 | Fax: (905) 660-4113
U.S.A.
4575 Witmer Industrial Estates Niagara Falls, NY 14305
Toll Free: (888) 660-4655 | Fax Toll Free: (888) 660-4113
www.mircom.com
THIS INFORMATION IS FOR MARKETING PURPOSES ONLY AND NOT INTENDED TO DESCRIBE THE PRODUCTS TECHNICALLY.
For complete and accurate technical information relating to performance, installation, testing and certification, refer to technical literature. This document contains intellectual property of Mircom. The information is subject to change by Mircom without notice. Mircom does not represent or warrant correctness or completeness. All rights reserved. All other trademarks and registered trademarks are properties of their respective owners.
CATALOG NUMBER 4146
Rev. 0
