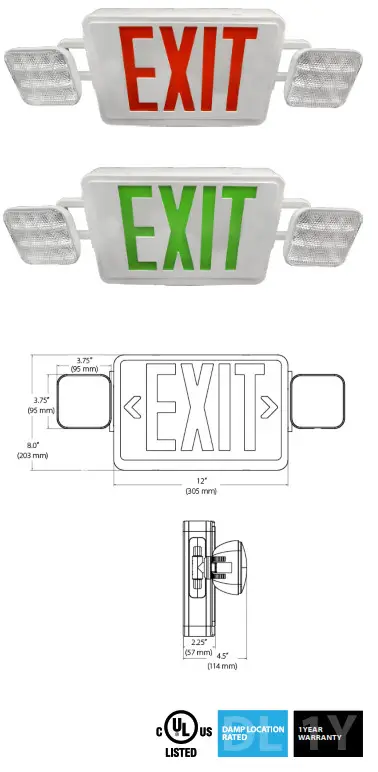

ECL1
LED Emergency Exit Sign Combo
Product Description
The ECL Series LED Emergency Exit Combo features an attractive low profile design to fit any environment.
This series is available in white and offers universal mounting with testing button, Ni-Cad battery with remote capabilities, and is damp location listed.
The ECL Series generates only 1.2 watts per lamp head, making it a perfect energy savings solution.
Construction
- Injection molded thermoplastic ABS housing
- UL-94V-0 flame rating – Flame Retardant
- Red or Green text options available
- 6” Letter Height
- Double Face Configuration
Electrical
- 1.2 Watts per head
- 120-277V Dual Voltage Operation
- LED Indicator Light & Push Button Test Switch
- 90 Min capacity on emergency mode
- Damp Location Rated (0˚C – 40˚C)
Installation
- Universal mounting plate with EZ quick connect
Product Information
| Input Voltage (V): | 120-277 |
| Power Draw (W): | 2.4 |
| Emergency Battery: | 90 minutes |
| Limited System Warranty: | 1 Year |
Compatible NICOR Remote Lamps*
ERL1
ERL2
ERL3
ERL4
*Not a complete list. Check compatibility before installation.
Project…………
Catalog……………
Type………..
Date……………………
Ordering Information
Example: ECL1-10-UNV-WH-R-2
| Series | Version | Voltage | Housing Color | Lettering |
| ECL1 | 10 (1.0) | UNV (120-277V) | WH (white) |  R-2 (red) |
| G-2 (green) | ||||
| R-2-R (red w/remote) | ||||
| G-2-R (green w/remote) |
NICOR, Inc. 2200 Midtown Place NE, Albuquerque, NM 87107 P: 800.821.6283
F: 800.892.8393
www.nicorlighting.com December 10, 2021 4:09 PM ECL1 Page 1 of
