HANECO ESODO IP65 Emergency Exit Signs
Robust vandal and weatherproof construction
ESODO IP65 is a robust vandal resistant LED emergency EXIT sign built for harsh environments. Even though ESODO IP65 has been designed to last, no compromise has been made with regards to maintenance and user friendliness
Features
- High efficiency LED
- IP65 and IK08
- 24m viewing distance
- More than 1.5 hours of discharge time
- LiFePO4 battery compliant with AS2293.3
- Replaceable decals supplied

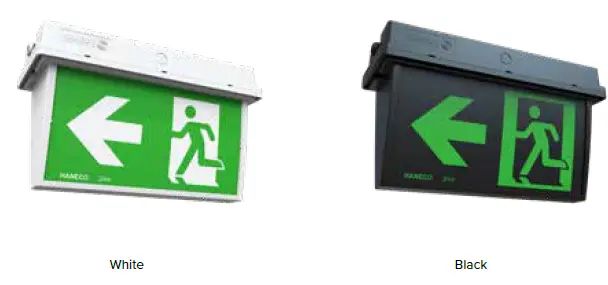

- Also available in black
Benefits
- Long lifetime and low power consumption
- Moisture proof vandal resistant
- Ensured safety throughout the building
- Homogeneously lit sign
- Peace of mind for the end user
- The correct sign for every application
- Suitable for low illuminance applications

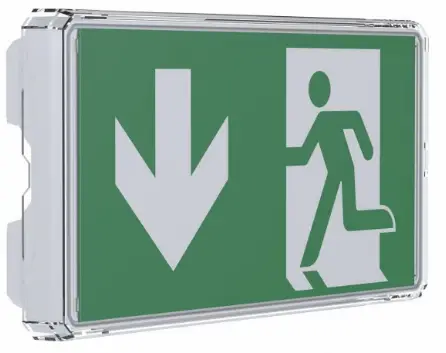

Product Overview
| POWER (Standby) | POWER (Charging) | DISCHARGE TIME | RECHARGE TIME | EMERGENCY CLASSIFICATION | SAP CODE | PRODUCT CODE |
| 1.5W | 3W | >1.5 hours | 16 hours | E6.3 | 2002085 2002174 | ESD24M-IP65 ESD24M-IP65-BK |
SPECIFICATIONS
- Viewing Distance: 24m
- Type: Maintained
- Body Material: ABS Housing
- Colour: White Black
- IP Rating: IP65
- IK Rating: IK10 AS/NZS
- Standards: 60598 / 2293.3
- Driver: Integral Power
- Connection: Screw Terminals
- Input: 220-240V, 50/60Hz
- Electrical Classification: Class 2
- Battery Type: LiFePO4 3.2V 600mAh
- Charger Operation: Continuous
- Battery Test Button: Manual
- Lifespan: >54,000hrs @Ta55ºC (L70)
- Operating Ambient Temperature: 0 to 45°C
APPLICATIONS
Standard Version:
- Schools
- Offices
- Hotels
- Retail
- Galleries
- Factories
- Car Parks
- Stairwells
Black Version:
- Theatres
- Cinemas
- Auditoriums
- Lecture Rooms
- Dark Rooms
ACCESSORIES
Replaceable Pictogram Set: (Supplied with Product)

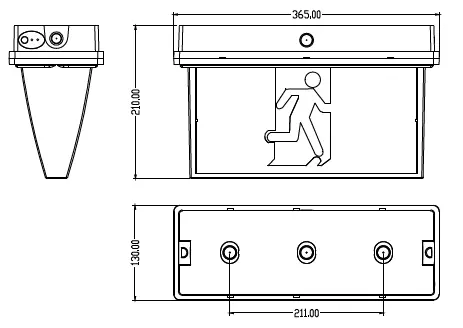

DIMENSIONS
