Product introduction of 8-inch body
temperature measuring all-in-one
machine
Instruction Manual
Product Brief:
Wall-mounted temperature measurement faces recognition access management module, using Rockchip RK3288 high-performance hardware platform, equipped with an industrial-grade binocular camera and face biometric recognition technology, and infrared human body temperature measurement module, is a high-performance, high-reliability product. Support 1:1 and 1:N face comparison and retrieval, support mask recognition, support human body temperature detection, high-temperature warning, and support the expansion of various peripherals such as ID card reader, fingerprint reader, etc., can be applied to access control and attendance to achieve safe and efficient access control for personnel.
Features:
- Using 8-inch IPS full-view LCD display.
- Industrial grade appearance, waterproof and dustproof design, stable and reliable.
- Support 20,000 face database. The 1:1 comparison recognition rate is over 99.7%, the 1:N comparison recognition rate is over 96.7%@0.1% false recognition rate, and the living body detection accuracy rate is 98.3%@1% false rejection rate. The speed of face recognition is less than 1 second.
- Support accurate face recognition and comparison while wearing a mask.
- Using the industrial-grade binocular wide dynamic camera, night infrared, and LED dual photo flood lamp.
- Standard Rockchip RK3288 quad-core processor, Cortex A17, 1.8G, powerful performance.
- Support human body temperature detection and temperature display. 1-meter ultra-distant body temperature detection, the measurement error is plus or minus 0.3ºC. Support automatic alarm of abnormal body temperature, only takes a few seconds for detection, real-time export of attendance temperature measurement data.
- Support various peripheral expansion such as ID card reader, fingerprint reader, IC card reader, QR code reader, etc. but this function is unopened.
- Support system level, APP offline level, APP + background network-level multiple API docking. The documentation is complete and supports secondary development.

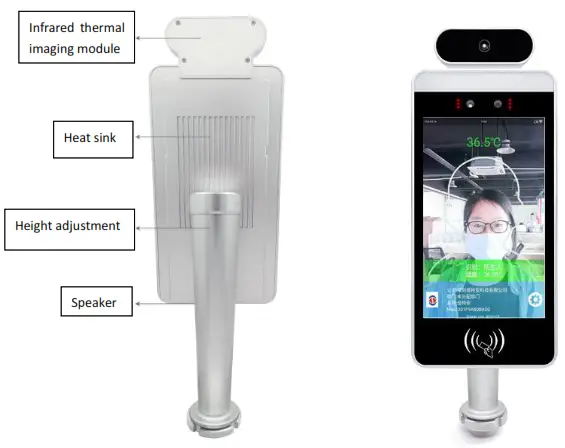

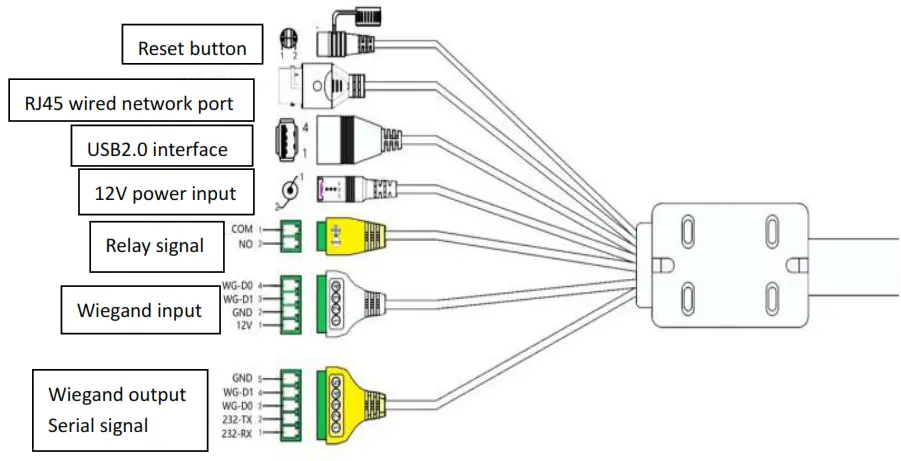

Definition of wire interface
Definition of external terminals for face recognition
Specification：
| System | CPU | 11X3288. Quad Core.Cortex 417.1.86 |
| RAM | 2GB | |
| ROM | 86 | |
| Operating System | Android 7.1 | |
| Screen | LCD display | flinch LCD |
| Resolution | 800’1280 | |
| Contrast | 800:1 | |
| Brightness | 250 cdlm2 | |
| Touch Screen | Non-touch (Touch optional) | |
| screen rag. | .16S | |
| Network | WWI | 802.11b/gIn |
| Ethernet | 100M 11000M RJ45 Port | |
| Bluetooth | Bluetooth to | |
| Camera | Resolution | 200W |
| Types | dynamic binocular camera | |
| aperture | 12. | |
| Focusing distance | 50.150an | |
| White balance | Auto | |
| flash | MR:850nm Infrared LED light | |
| Interface | USBlioax | USB Host 2.0 ‘1 |
| USB-OTG | USB-OTG ‘1 | |
| Wired network interface | Ethernet interface | |
| Serial interface | 1 RS232 serial port | |
| Relay output | 1 door open signal output | |
| Wiegand Interface | Wiegand 26134, one In 8 one out | |
| Upgrade button | Support Uboot Update button | |
| Power jack | DC input | |
| Function | Face Capacity | Max 20k |
| 1: N face recognition | support | |
| 1: 1 face comparison | support | |
| Recognition distance configuration | support | |
| Remote device upgrade support | ||
| UI interlace configuration | suPPort | |
| Device interface | photo management record query. etc. | |
| Deployment method | deployment, LAN use. standalone use | |
| Mask recognition | Supper( | |
| Stranger detection | support | |
| Infrared thermal imaging module | Human body temperature detection | support |
| Temperature detection distance | 1m (The best distance is 0.5 meters) | |
| Temperature measurement accuracy | s 20.31C | |
| Temperature measurement range | 10t-42Z | |
| A visitor’s body temperature is normally release | support | |
| Body temperature over temperature alarm | Support (temperature alarm value can be set) | |
| Media player | Video format | H264.1/P8,RV,WMV,AVS.H.263,MPEG4,etc |
| audio format | MP3.WMA.WAV. APE, FLAC, MC. OGG./A4A,3GPP | |
| Image Format | Picture zoom function | |
| Others | Speaker | 1.5W/4R |
| Microphone | support | |
| Card reader | support | |
| OSD language | Multi-language supported. | |
| Operating temperature | 0_40degree | |
| General parameters | power supply | DC12V 3A |
| Operating temperature | O1C-4010 | |
| Storage temperature | -20’C-60b | |
| Installation method | wall mount! floor stand (optional) | |
| Power consumption | 13.5W (Max) ) | |
The software background supports switching between Chinese and English software settings and supports multiple languages such as simplified Chinese, English, Italian, Polish, German, Russian, Thai, Spanish, French, Arabic, Korean, Vietnamese, Indonesian, Czech Chinese, Romanian, Japanese, Kazakh, Slovak, Dutch, Portuguese, etc.
Support mask mode, mask interception, living body detection, high-temperature alarm, and other functions.

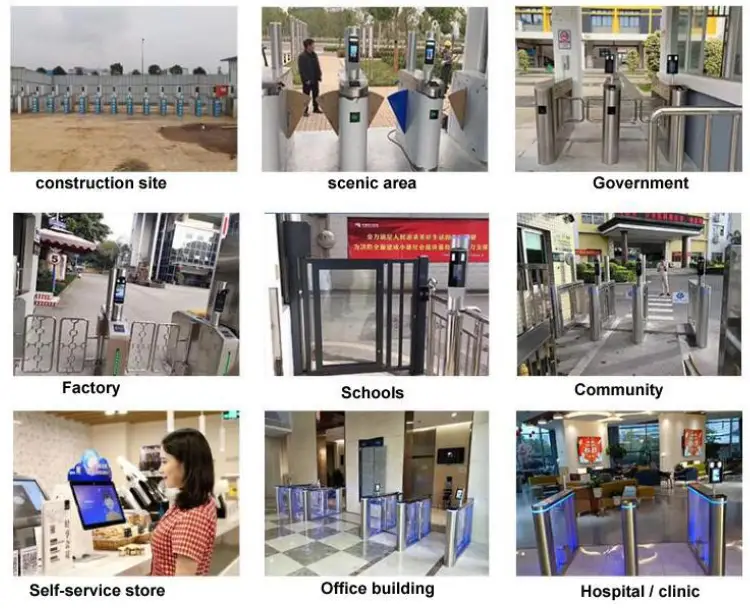

Application scenario:

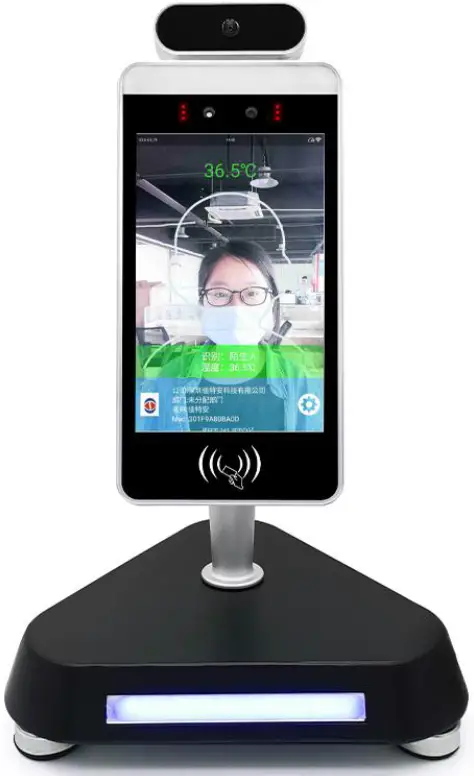

Installation method:
Support wall-mounted, floor-mounted, desktop installation.
