Wichard 2676 Quick Release Snap Shackle 110mm User Guide
Description

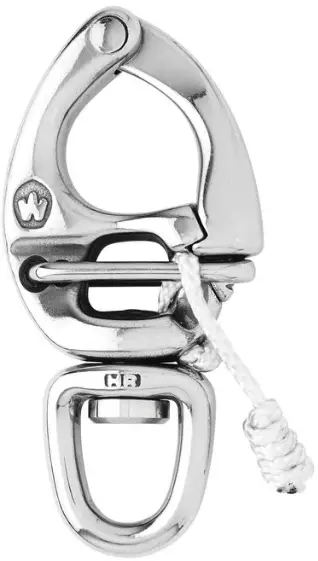

HR forged (17.4 PH) quick release snap shackle with swivel eye
The opening is made by pulling the lanyard
Perfect to attach one sheet or halyard
Outstanding working and breaking loads
Free rotation of the snap shackle thanks to the swivel
Applications
For spinnaker operations
Perfect for spinnaker sheets and halyards

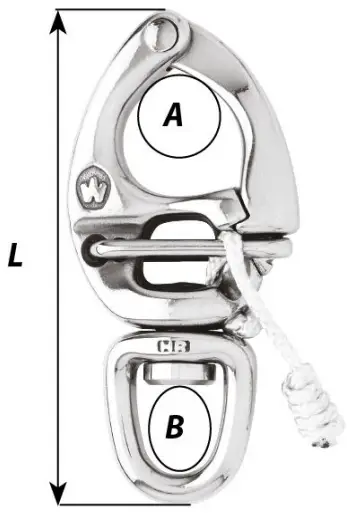

Dimensions
Technical information
| Materials | HR 17.4 PH stainless steel grade |
| Length (inch) | 4 21/64″ |
| Working load (lb) | 5290 |
| Breaking load (lb) | 9250 |
| Weight (lb) | 0.514 |
| A (inch) | 63/64″ |
| B (inch) | 5/8″ |
Caption
 | Working load (WL): for nautical applications |
 | Working Load Limit (WLL): for industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load/5 |
Wichard strives to ensure, to the best of its ability, the accuracy and the update of the information disseminated on this document, and reserves the right to correct at any time and without notice the content, as well as to evolve its products.
In the case of an industrial application, please contact our sales and technical department to validate the use of these products.
The request for certificates can be made directly with the sales department when ordering the products.
Non-contractual pictures.
