Large Coop Run Extension Kit
Instruction Manual

Large Coop Run Extension
Instruction Manual
for Snap Lock Large Chicken Coop Run

Contents hide

Large Coop Run Extension Kit

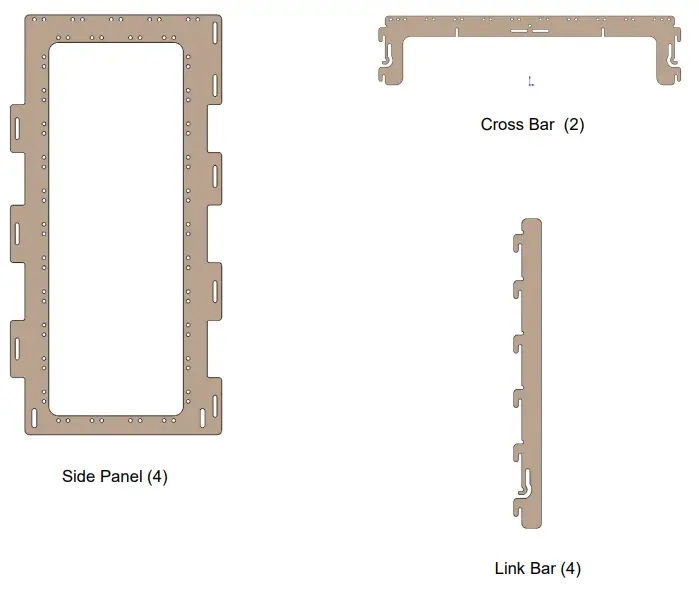

PARTS LIST FOR THE LARGE SNAP LOCK CHICKEN COOP RUN
This kit for the Large Model SNAP LOCK CHICKEN COOP RUN includes the following:

one envelope containing instructions, the warranty
It also includes all the parts listed on this page

LARGE COOP RUN EXTENSION Assembly

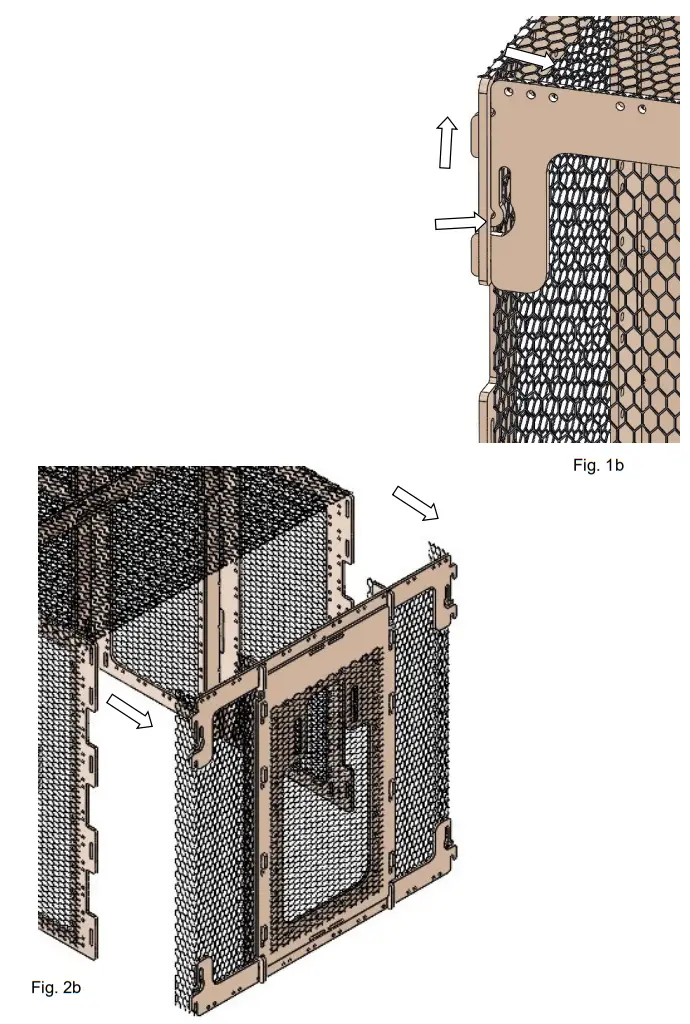

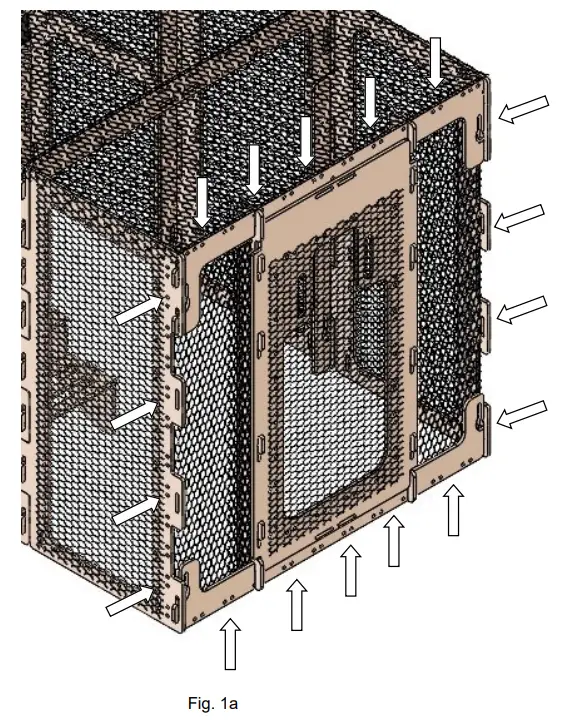

Step 1: First remove the LARGE CHICKEN COOP RUN end assembly. First detach any wire twists or zip ties used to connect the chicken wire along the end section.

Step 2: Then remove first the top bar, followed by the door and door supports, followed by the bottom bar. Set these components aside as they will be used later. To remove the top and bottom bar, first place a screw

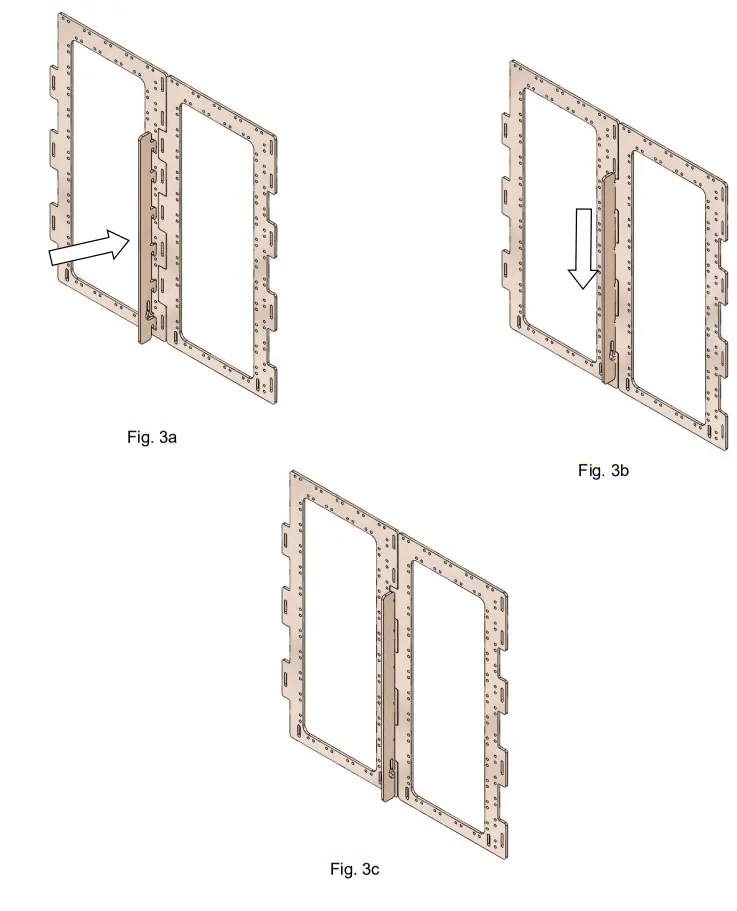

Step 3: Now assemble the extension. Connect the Side Panels together by using the Link Bar as shown. First align the side panels so that the slots on one side align. Then insert the Link Bar into the slots leaving the top two slots open. Press down firmly until the it locks into place.

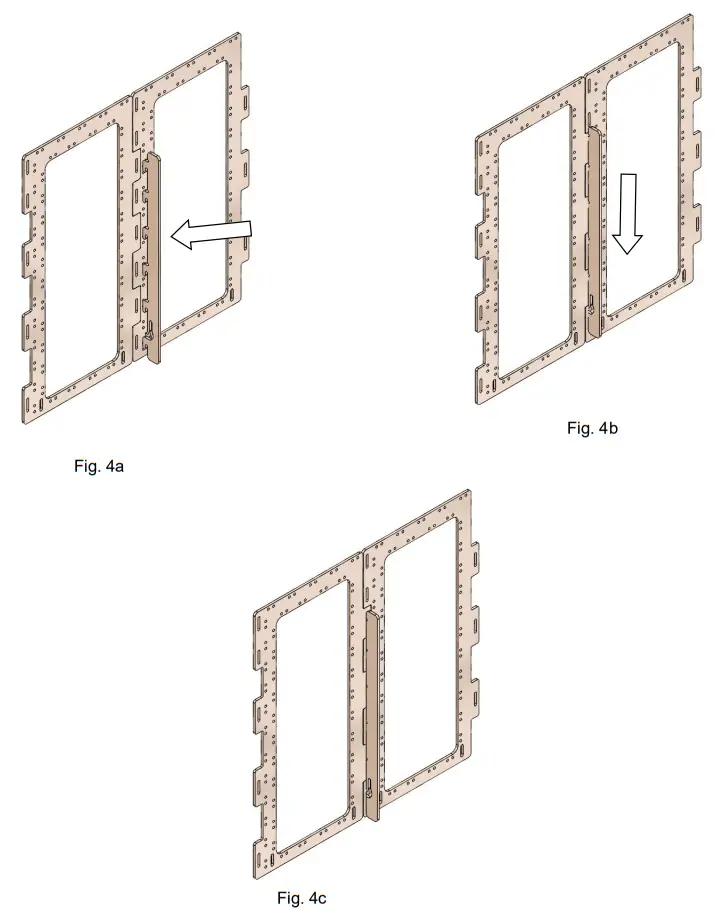

Step 4: Repeat this process with the support bar on the reverse side of the side panels to assemble the second wall of the CHICKEN COOP RUN EXTENSION

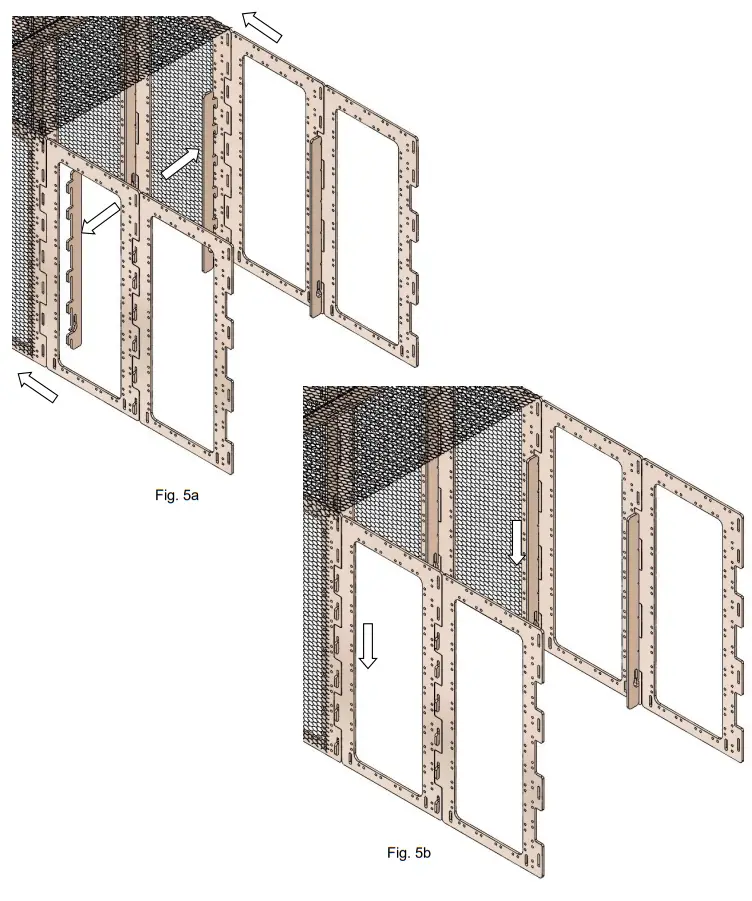

Step 5: Place both side panel assemblies so that the slots align with the open slots on the end of the LARGE CHICKEN COOP assembly. Lock them into place as shown by inserting two Link Bars into the slots, leaving the top two slots on the LARGE CHICKEN COOP assembly open. Press the Link Bars down until they lock into place

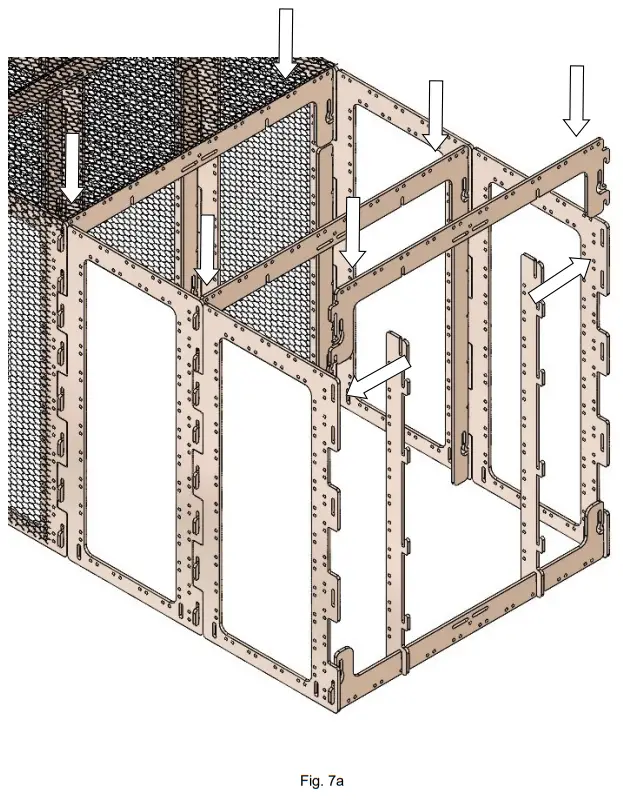

Step 6: Install the Bottom Bar and both Door Frame components from the original LARGE CHICKEN RUN assembly onto the end of the LARGE CHICKEN RUN EXTENSION as shown. Press the side Panels outward to allow the tabs of the Bottom Bar to fit. Press the Bottom Bar down firmly until it locks into place.

Step 7: Now attach the two included Top Bars and the Top Bar removed from the original CHICKEN COOP RUN assembly into the top two slots of the side panels. Press the Side Panels outward to insert the tabs, then press the Top Bars downward until they lock into place.

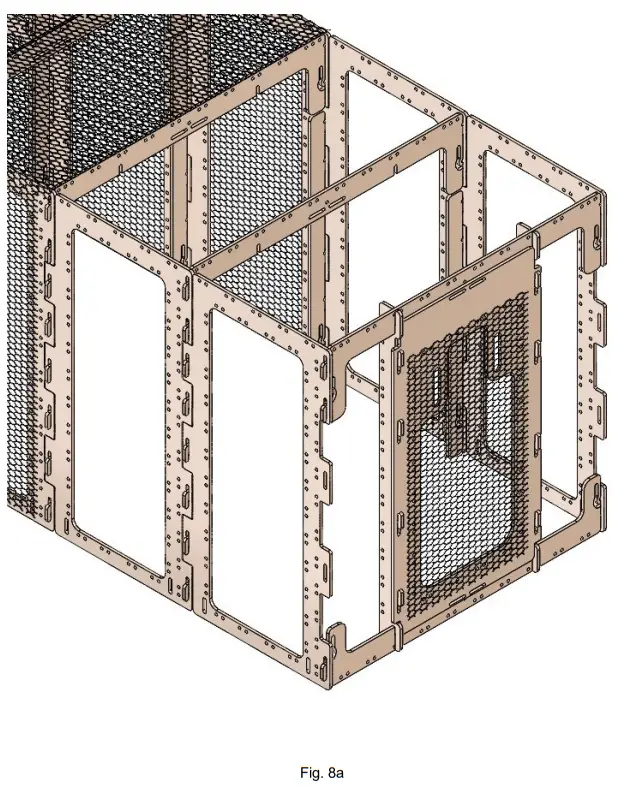

Step 8: Place the End Door from the original LARGE COOP RUN assembly back into place, now at the end of the LARGE COOP RUN EXTENSION assembly

Step 9: The Snap lock Large Chicken Coop Run Extension is compatible with all standard chicken wire. Chicken wire is not included with the Snap lock Large Chicken Coop Run Extension.

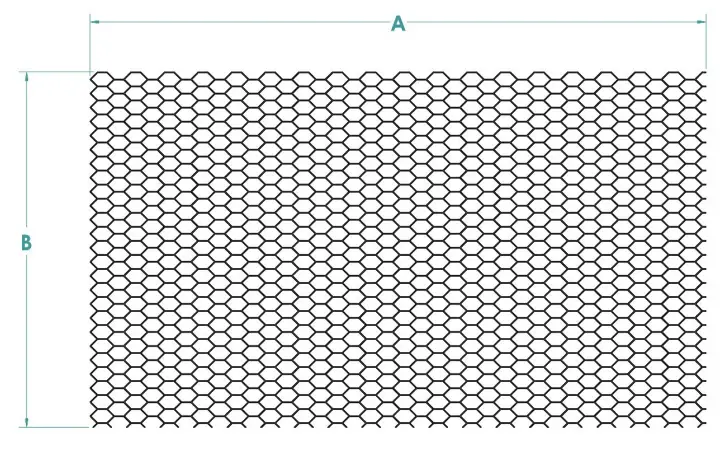

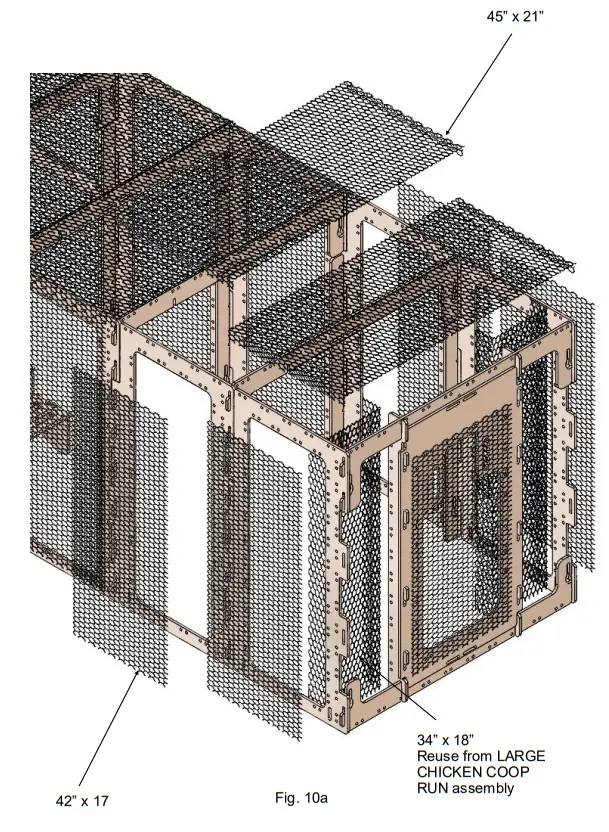

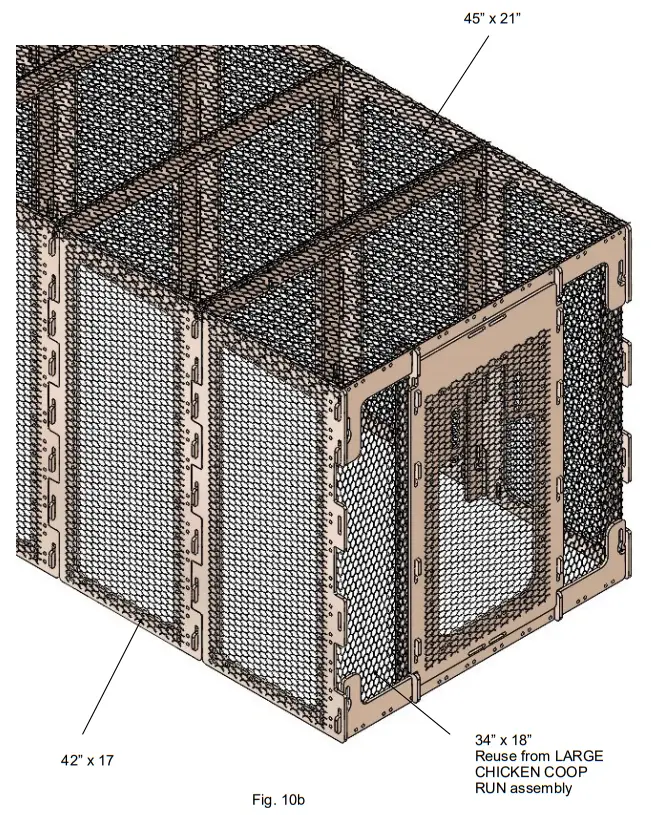

Cut the chicken wire to the following dimensions and quantities
42” x 17” quantity 4
45” x 21” quantity 2Step 10: Use any zip tie or wire twist to attach the chicken wire segments to the large coop run extension as shown
