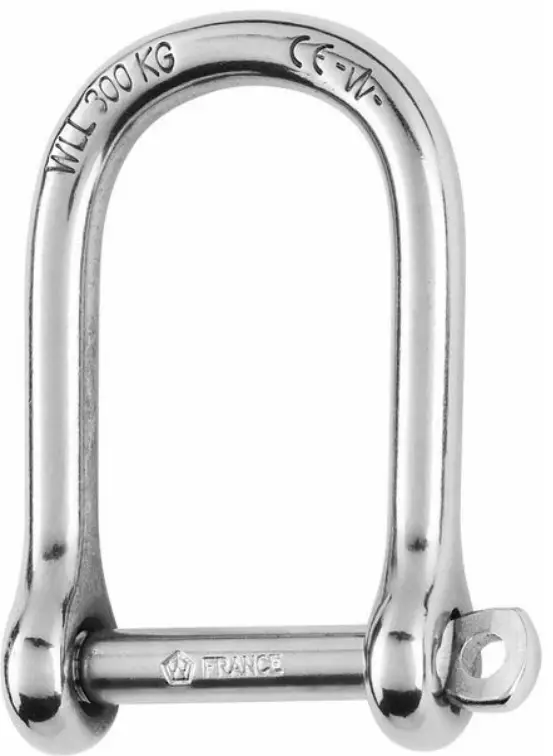

Wichard marine 1264 Self-Locking Large Shackle User Manual
Description
Self-locking large shackle forged in grade 316L stainless
steel The pin is locked into one of the indentations No risks of loose due to vibrations Outstanding working and breaking loads WLL: only for industrial applications (lifting i.e…) CE marking and batch number
Applications
For applications where a large opening shackle is required
Technical information
| Materials | 316 stainless steel grade |
| Working load (lb) | 1780 |
| WLL (lb) | 1190 |
| Breaking load (lb) | 5950 |
Weight (lb) | 0.148 |

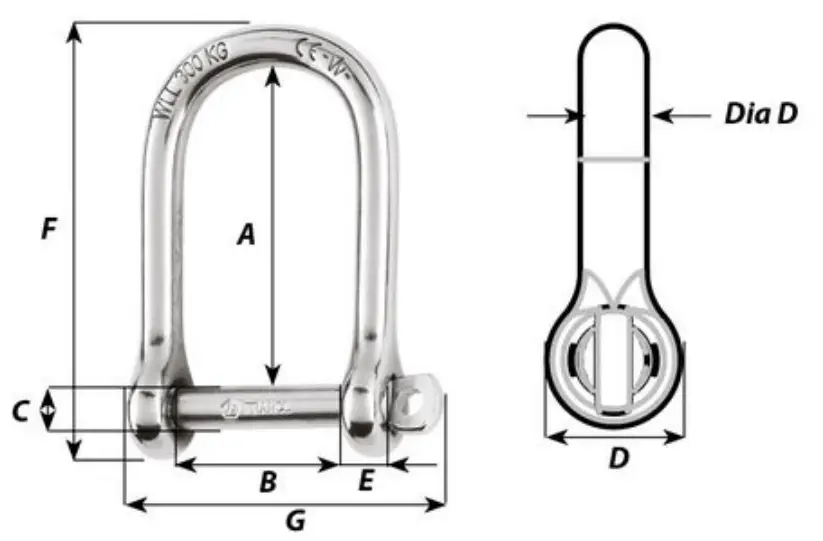

A (inch) | 2 1/4" |
| B (inch) | 1 17/64″ |
| C (inch) | 5/16″ |
| D (inch) | 43/64″ |
| D diameter (inch) | 5/16″ |
| E (inch) | 5/16″ |
| F (inch) | 3 1/32″ |
| G (inch) | 2 1/4″ |
Caption
Working load (WL) : for nautical applications
Working Load Limit (WLL): for industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
Wichard strives to ensure, to the best of its ability, the accuracy and the update of the information disseminated on this document, and reserves the right to correct at any time and without notice the content, as well as to evolve its products. In the case of an industrial application, please contact our sales and technical department to validate the use of these products. The request for certificates can be made directly with the sales department when ordering the products. Non-contractual pictures.
