INSTALLATION INSTRUCTIONS

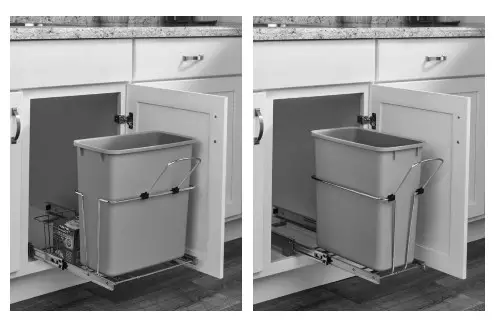

CHROME UNIVERSAL WASTE PULLOUT
TOOLS REQUIRED:
ESTIMATED ASSEMBLY TIME:
15 MIN
CARE AND MAINTENANCE:
Clean with a damp cloth and wipe parts dry.

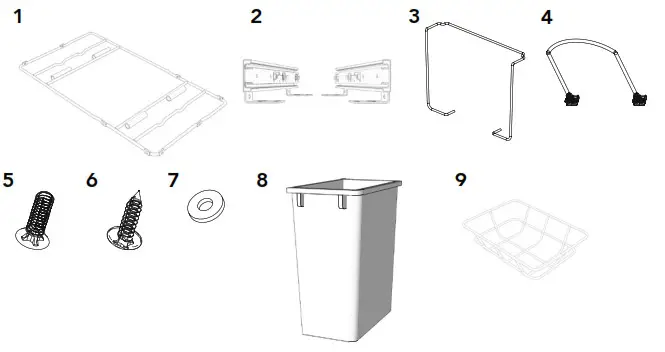

| Parts List | ||
| No. | Description | Qty |
| 1 | Frame | 1 |
| 2 | Slides | 2 |
| 3 | Uprights | 2 |
| 4 | Handle | 1 |
| 5 | #8-32 X 3/8″ Flat Head Machine Screws | 4 |
| 6 | #8 X 3/4″ Truss Head Deep Thread Screws | 4 |
| 7 | #8 Washers | 4 |
| 8 | Waste Container (20 qt or 32 qt) | 1 |
| 9 | Wire Basket* | 1 |
* Dependent on unit purchased. If your unit did not come with a basket, you can call Rev-A-Shelf’s customer service team to order one. Part Number: RV814BB-1-CR
INSTALLATION INSTRUCTIONS: CHROME UNIVERSAL WASTE PULLOUT
I-RUKD-1121
STEP 1

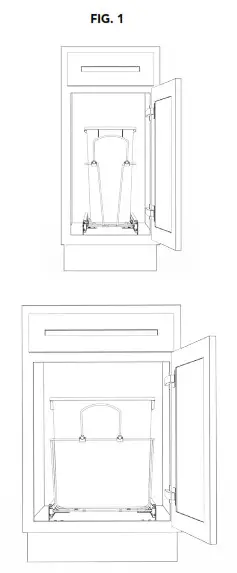

Determine the position you would like to install your waste container, ensuring cabinet frame or hinges does not interfere with the unit (See Figure 1).
STEP 2

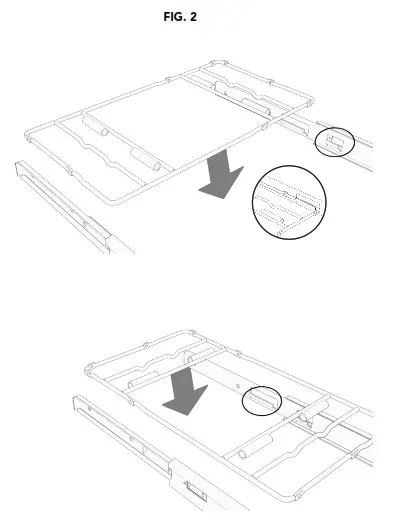

Match the frame hole locations with slide hole locations and snap the frame into the slides (See Figure 2).
STEP 3

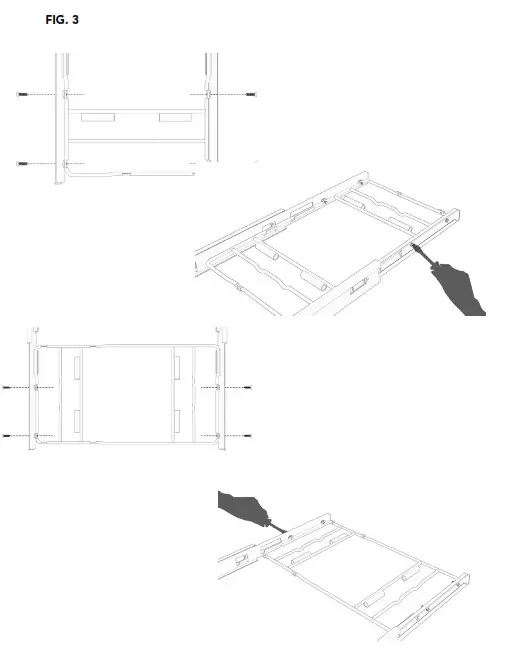

Extend the slides to full extension and use the (4) #8 washers and #8-32 X 3/8” flat head machine screws to secure the frame to the slides (See Figure 3).
STEP 4

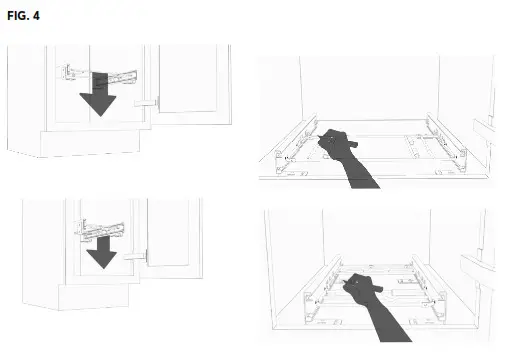

Place frame in desired position (determined in Step 1) inside the cabinet. Mark and pre-drill screw locations using 3/32” drill bit and #8 x 3/4” truss head deep thread screws (See Figure 4).
STEP 5

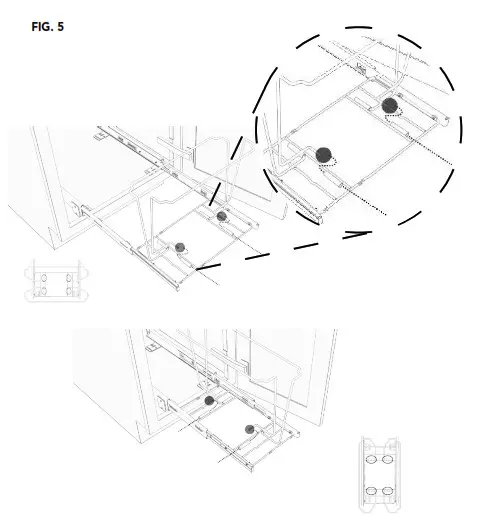

Attach the uprights to the frame and place trash can in the uprights (See Figure 5).
STEP 6

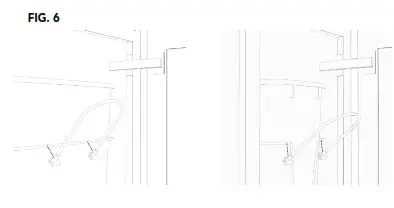

Snap the handle to the front upright. (See Figure 6).
Note: Continue to Step 7 if you have a unit that comes with a rear basket.
STEP 7

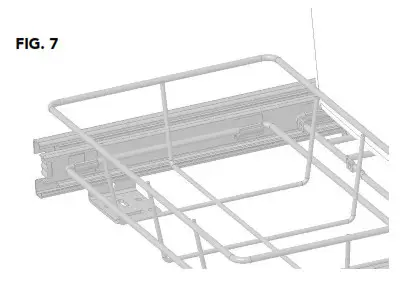

Line up the basket to back clips on the frame and snap into place (See Figure 6).
Note: Not all units come with a wire basket
