BC26 Outback Garden Brushcutter
User Manual
Beginning Serial #: 122020001
IMPORTANT- READ CAREFULLY BEFORE USE AND KEEP FOR FUTURE REFERENCE
Go to http://www.billygoat.com for French-Canadian translations of the product manuals.
SPECIFICATIONS
| BC2601HHFT | BC2601HH | BC2601HEBH | BC2601HEBHFT | |
| Engine Type | Honda GXV390 | Honda GXV390 | Honda GXV390 | Honda GXV390 |
| Model Number | GXV390UT1 DABG | GXV390UT1 DABG | GXV390UT1 DE33 | GXV390UT1 DE33 |
| Displacement | 390 cc | 390 cc | 390 cc | 390 cc |
| Fuel Capacity | 2.2 qt (2.1 L) | 2.2 qt (2.1 L) | 2.2 qt (2.1 L) | 2.2 qt (2.1 L) |
| Oil Capacity | 1.2 qt (1.1L) | 1.2 qt (1.1L) | 1.2 qt (1.1L) | 1.2 qt (1.1L) |
| Unit Weight | 367 lb (167 kg) | 325 lb (147.4 kg) | 335 lb (152 kg) | 335 lb (152 kg) |
| Overall Length | 72 in (1.83 m) 31 in (0.78 m) 48 in (1.21 m) | |||
| Overall Width | ||||
| Overall Height | ||||
| Maximum Operating Slope | 20o | 20o | 20o | 20o |
SAFETY
WARNING
This product can expose you to chemicals including gasoline engine exhaust, which is known to the State of California to cause cancer, and carbon monoxide, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Read the safety rules and follow them closely. Failure to obey these rules could result in loss of control of the unit, severe personal injury or death to you, or bystanders, or damage to property or equipment.
INSTRUCTION LABELS
The labels shown below were installed on your BILLY GOAT® Hydro-Drive Brush Cutter. If any labels are damaged or missing, replace them before operating this equipment. Item numbers from the Illustrated Parts List and part numbers are provided for convenience in ordering replacement labels. The correct position for each label may be determined by referring to the Figure and Item numbers shown.
 |  |  |  |
| PN 100261 (Item 61) | PN 100346 (Item 134) | PN 501502 (Item 85) | PN 400424 (Item 5) |
 |  |  |  |
| PN 810736 (Item 136) | PN 100256 (Item 62) | PN 900327 (Item 20) | PN 500177(Item 135) |
 |  |  |  |
| PN 501504 (Item 139) | PN 501504 (Item 139) | ||
 | Honda | ||
PACKING CHECKLIST
Your BILLY GOAT® BC Self-Propelled Hydro-Drive Brush Cutter was shipped in one carton, completely assembled except for the upper handle assembly and the front guard bar. Mounting hardware for the handle and guard bar is temporarily installed on the lower handle and the front of the deck assembly. The throttle cable hardware is located on the bracket on the right side of the handle NOTE: BC2601HHFT models are shipped completely assembled and will need to have the blade cable attached before gas and oil is added to the machine. A CB18, C50, SC50, or MCB50 series dry or wet battery with a 17.2 Ah rating is required when replacing the battery.
READ all safety instructions before assembling the unit.
WARNING DISCONNECT spark plug wire before assembling the unit.
PARTS BAG & LITERATURE ASSY
Warranty card P/N- 80102772, Owner’s Manual P/N-501530, General Safety, and Warranty Manual P/N- 100296, Declaration of conformity P/N 100502
Boxing Parts Checklist
- Owner’s Manual 501530
- Upper Handle Assembly, P/N 501010, Electric model P/N 501009
- Guard Bar, P/N 501403
- Ty-Wraps P/N 900402 (qty 4)
- Screwcap 3/8” – 16 X 2” P/N 8041054 (qty 4)
- Washer 3/8” flat P/N 8171004 (qty 4)
- Nut Lock 3/8”-16 P/N 8160003 (qty 4)
- Nut lock #10-24 hex P/N 8164005 (qty 2)
- Screw machine flat HD Phil P/N 830514 (qty 2)
- Washer 5/16” flat P/N 8171003 (qty 4)
- Bolt carriage 5/16”-18 x 1 3/4” P/N 8024043 (qty 4)
- Nut Lock 5/18”-18 hex ZP P/N 8160002 (qty 4)
- Starter switch P/N 501286 (Electric start only)
Engine Manual Per Model
- Honda

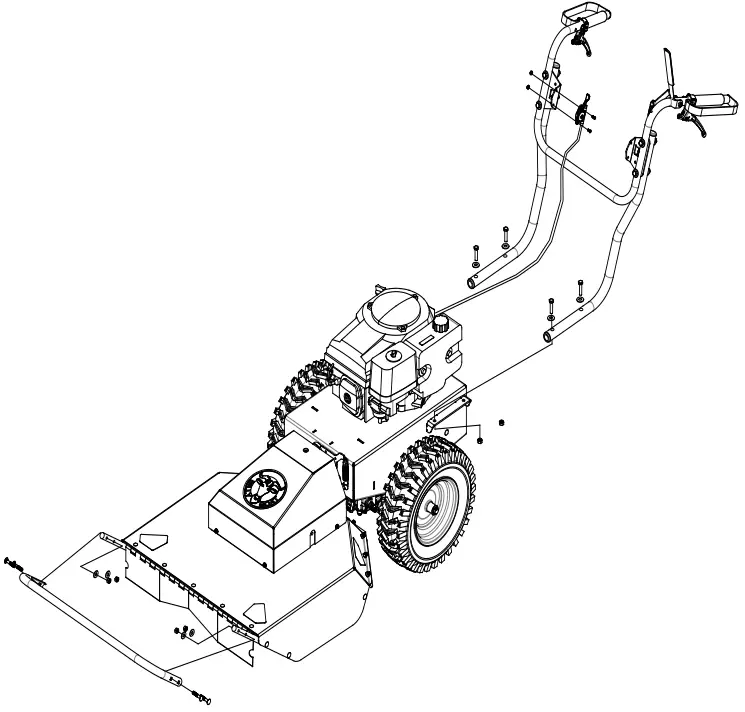

ASSEMBLY

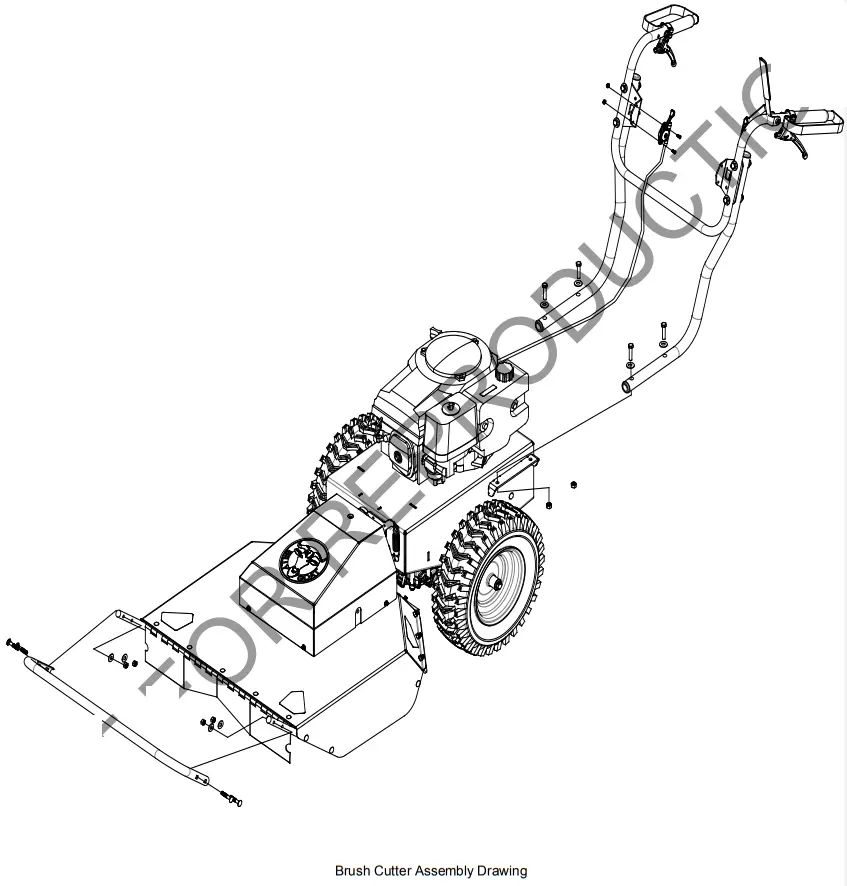

NOTE: Items in ( ) can be referenced in the Parts Illustrations and Parts Lists on pages 15-22.
- REMOVE the unit from the carton and check the contents of the parts bag with the list above.
- REMOVE mounting hardware from the hardware bag.

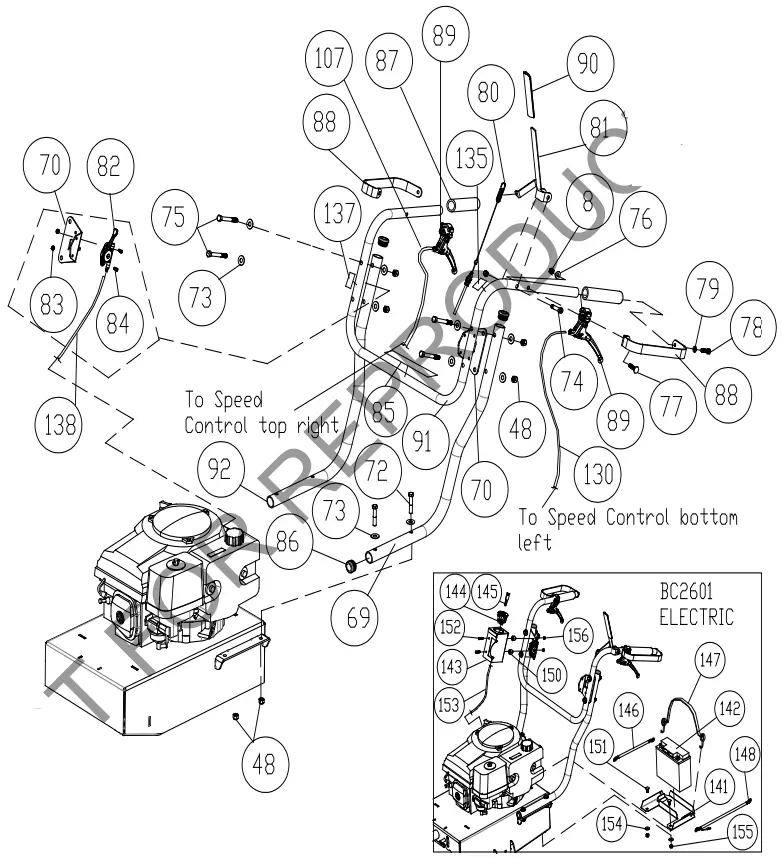

- ATTACH the handle to the engine base with items 72, 73, and 48.
- TIGHTEN mounting hardware on handle braces (items 5 and 6).
- ATTACH the guard bar (item 16) to the Skid bar by installing the side bolts into the top two holes on the skids with items 12, 9, and 8.
- ATTACH the throttle (item 82) to the right-hand bracket (item 70) using hardware items 83 and 84. Tighten securely and make sure the cable isn’t binding. FOR ELECTRIC START MODELS, Attach the throttle to the bracket then remove the starter switch (item 144) from the parts bag. Feed the wire harness (item 153) for the start switch into the box (item 143) through the bottom and attach the starter switch to it. Then press the switch into the hole on the top of the box, making sure it is seated properly. (See parts illustration pg. 23 for assembly)
- ATTACH the Blade drive cable to the lever and seat the plastic insert into the bracket on the left side of the handle.
- SECURE the drive and blade cables with the ty-wraps provided.
- (ELECTRIC START ONLY) For electric start models secure the battery in the battery plate (item 141), hook one side of the strap (item 147) into the hole then stretch the strap across the top of the battery and hook the opposite side into the opposing hole on the plate. Make sure the battery will not move then connect terminals. Replacement hardware to attach the cables to the battery can be found at a local hardware store.
- RECONNECT spark plug wire.
OPERATION

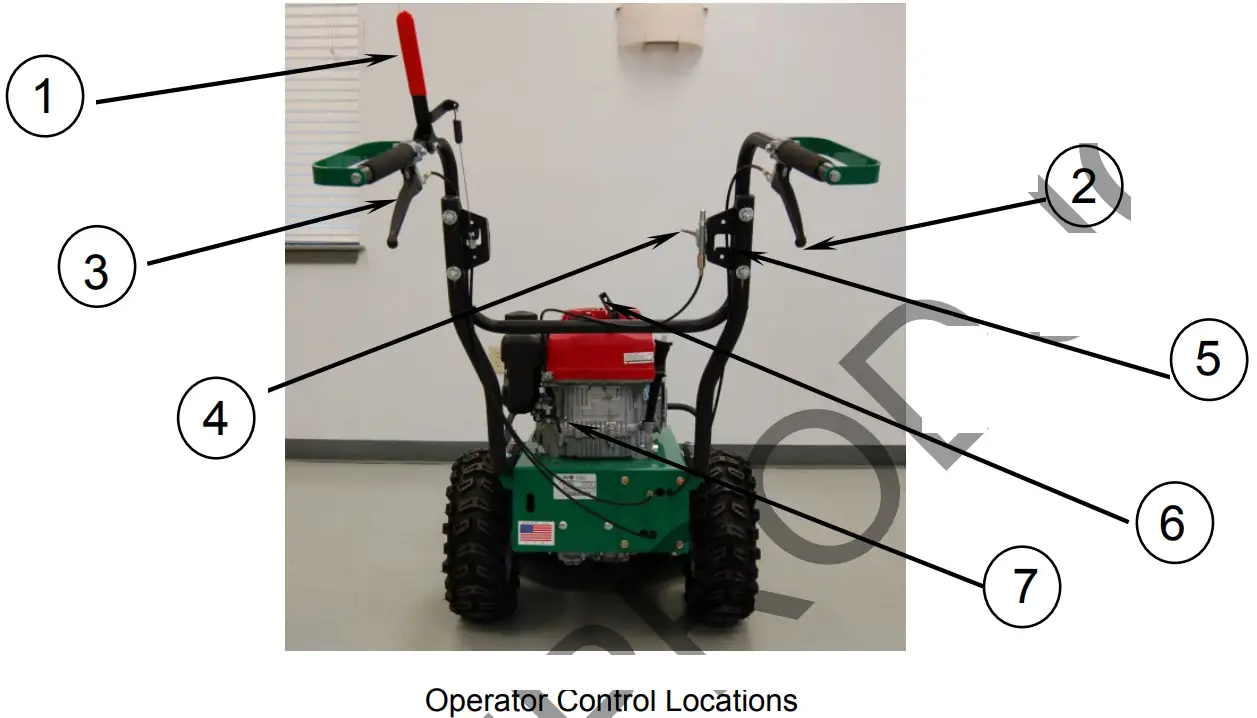

OPERATOR CONTROLS
The operator’s station is at the rear of the machine between the handlebars. The operator should STAND in a position to allow both handlebars to be grasped firmly and which allows sufficient leverage to steer the machine. The operator’s controls are shown below.
- Blade Clutch Lever
- Forward Lever
- Reverse Lever
- Throttle
- Start Switch (Electric only)
- Pull Starter
- Choke
STARTING ENGINE
CHECK engine oil level before operating the machine. WARNING DO NOT START equipment with drive or blade clutch engaged.
- Place equipment on a level, firm surface that is free of rocks or other debris.

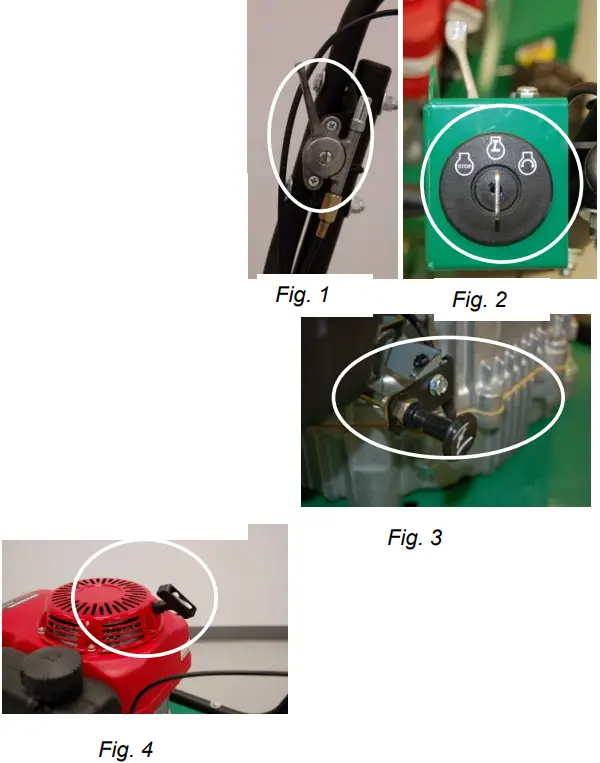

- Place the throttle in the “fast” position. (See Fig. 1)
- Pull choke out (See Fig. 3, Honda engine only).
- Units equipped with electric starters: Turn the switch right until the engine starts, only cranking over the engine for 10 seconds at a time if it does not immediately start. (See Fig. 2)
- Units equipped with manual starters: Pull the starter rope to start the engine. (See Fig. 4)
NOTE: PULL STARTER CORD slowly until resistance is felt. Then pull the cord rapidly to avoid kickback. - Push choke in (Honda engine only).
- Pull the throttle control back and allow the engine to reach the correct operating speed.
CUTTING OPERATION

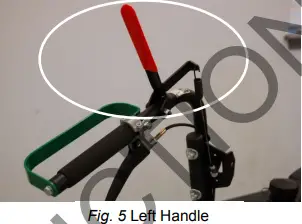

- Press the blade clutch handle down (See Fig. 5) to engage the blade. Allow the blade to spin up to normal operating speed.

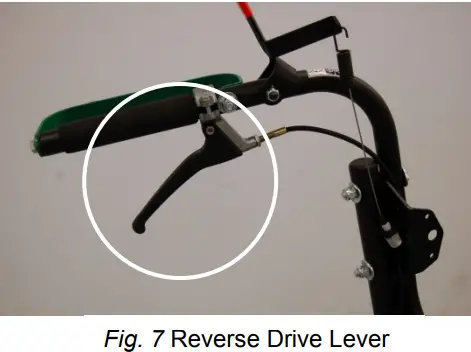

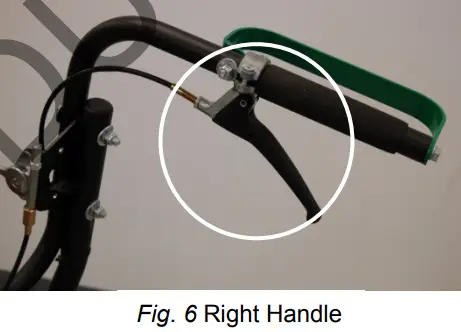

- Pull Forward (See Fig. 6) or Reverse the Drive lever (See Fig. 7) up to engage the transaxle in the desired direction.
CLEARING A CLOGGED DECK WARNING DISCONNECT spark plug wire before servicing unit.
- Shut the engine off and wait for the blade to stop completely.
- Disconnect the spark plug wire.
- Remove clog from cutting deck.
WEAR durable gloves. The clog may contain sharp materials. - Reconnect the spark plug wire.
WEAR durable gloves. The clog may contain sharp materials.SHUT DOWN
- Release the drive lever (Fig. 6/7) to disengage the transaxle.
- Release the blade clutch handle (Fig. 5) to disengage the blade.
- (Non-Electric) Move the throttle to the slowest possible position on the throttle control.
- (Electric start models) Turn the key to the OFF position.
NEUTRAL/FREEWHEEL

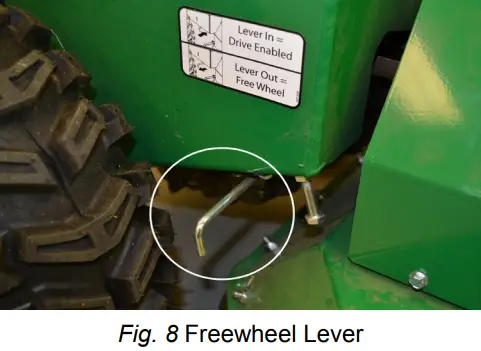

- Identify the freewheel lever located in front of the right front wheel when viewing from the operator’s station.
- Pull the lever to initiate freewheel motion.
- Push the lever in to initiate driver-enabled motion.
*****TIPS*****
The best performance is achieved when cutting in dry conditions. The quality of the cut is directly related to ground speed during cutting. Under most conditions cutting should be done at a slower ground speed. Fast speeds should be reserved for conditions where weeds and brush are thinned out or not very tall. If the quality of the cut is not satisfactory, an attempt at slower speeds.
MAINTENANCE
PERIODIC MAINTENANCE
Periodic maintenance should be performed at the following intervals:
| Maintenance Operation | Every Use | Daily or Every 5 Hours | Every 25 Hours | Every 50 Hours | Every 100-150 Hours |
| Inspect for worn or damaged parts |  | ||||
| Check for excessive vibration | | ||||
| Inspect for loose parts | | ||||
| Sharpen blade. Note: nut will need to be replaced when the blade is removed | | ||||
| Inspect belts for wear | | ||||
| Lubricate throttle control cable and linkage | | ||||
| Check blade clutch cable tension | | ||||
| Inspect the battery for corrosion, damage, or leaks (electric start units only) | | ||||
| Apply anti-seize compound to rear axles | | ||||
| Check battery strap for excessive wear or rips | | ||||
| Replace blade drive and transaxle drive belts | |
If the transmission is topped off or refilled, SAE 10w30 grade, non-detergent oil should be poured through the port covered by the black cap. Approx. 2.2 liters of oil will be needed to reach this level. This is dependent on the amount of residual oil remaining in case after draining. Draining of old oil must be done through the same port (covered with the black plug) by inverting the transaxle
COMMON REPLACEMENT PARTS
- Blade. P/N 501224. Original equipment replacement blade.
- Transaxle Drive Belt. P/N 501268. Original equipment replacement drive belt.
- Blade Drive Belt. P/N 501220. Original equipment replacement drive belt.
- Skid. P/N 501407. Side deck skid.
- Throttle Control Assembly. Throttle control including cable.
- CLEANING
Your BILLY GOAT® Brush Cutter should be cleaned periodically to ensure optimum performance and service life. Clogs and debris should be removed from the blade area and debris should be removed from the engine cooling fins. A garden hose or pressure washer may be used for cleaning.
CAUTION

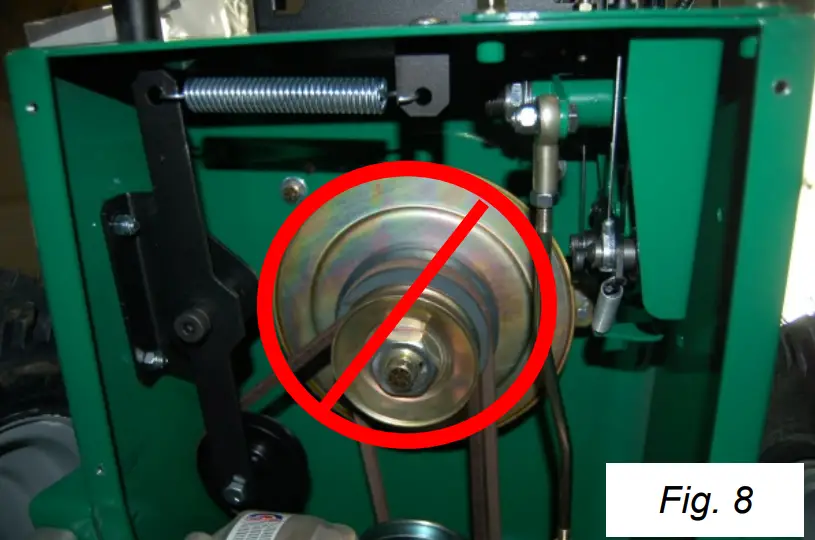

DO NOT SPRAY WATER DIRECTLY ON THE BLADE CLUTCH WHEN USING A POWER WASHER. SEE FIG. 8.
NOTE: Items in ( ) can be referenced in the Parts Illustrations and Parts Lists on pages 15-22.

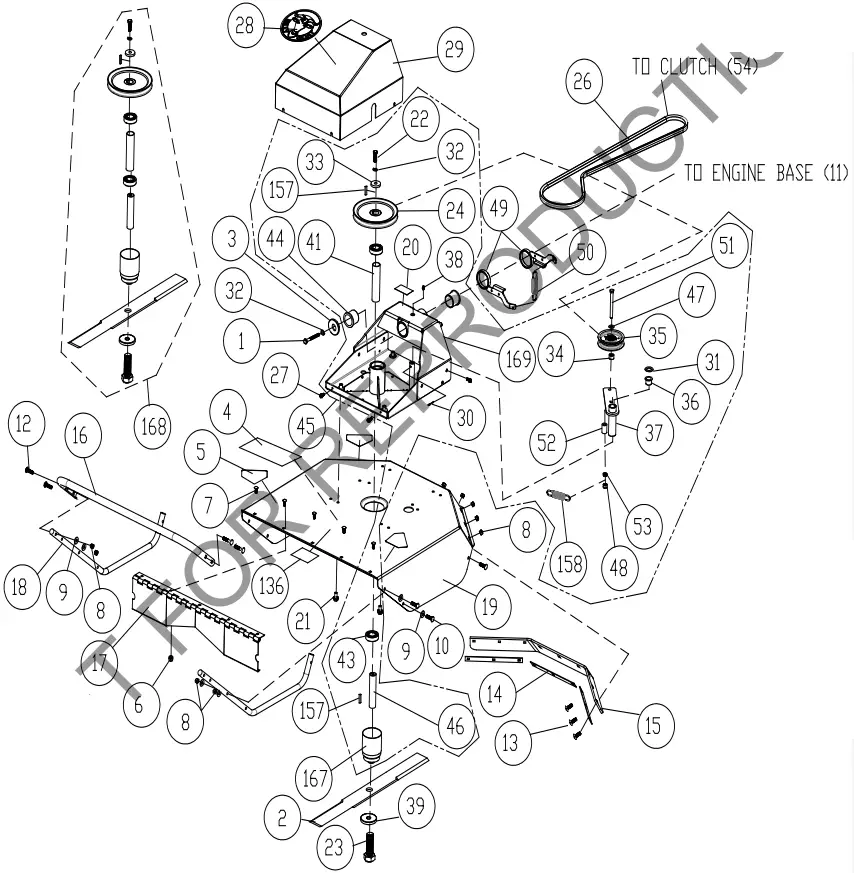

BLADE SHARPENING AND REMOVAL (See pages 15 and 16 for Parts Illustration and Parts List)READ all safety instructions before servicing the unit. WARNING DISCONNECT spark plug wire before servicing unit.
- Disconnect the spark plug wire.
- Lift and support the front of the unit to allow access to the underside.
WARNING THE UNIT IS HEAVY. Make sure support is adequate to support the weight of the machine. - Block the blade to prevent it from rotating during removal.
- Remove the blade bolt (item 23), and friction washer (item 39).
- Remove the blade (item 2) and install a replacement blade. When replacing the blade, only use BILLY GOAT Industries PN 501224. NOTE: When sharpening the blade make sure to sharpen all cutting edges. If the lock nut is removed and replaced more than once, it should be replaced with a new lock nut (P/N 8160009).
- Attach a new blade with a new blade bolt (item 23), and a new friction washer (item 39) removed earlier and included with your new blade. NOTE: Inspect fasteners for wear and replace if necessary.
- Torque blade lock nut to 40 ft-lbs.
- Reconnect the spark plug wire.

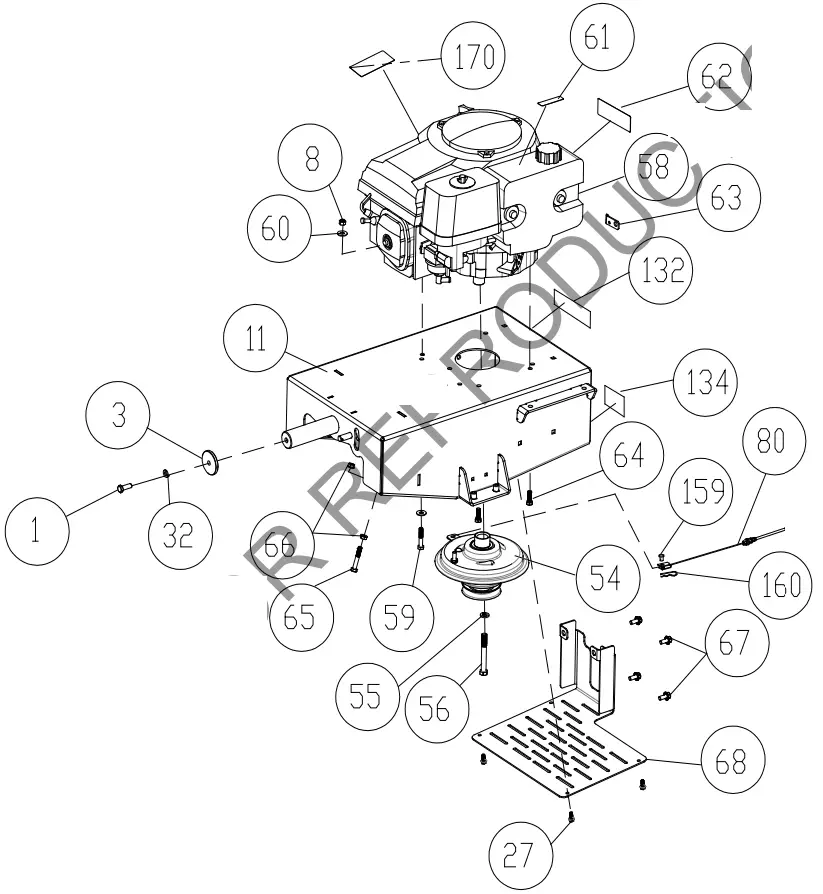

BLADE DRIVE AND TENSION (See pages 15 and 16 for Parts Illustration and Parts List)
NOTE: The Blade Drive belt is under constant tension by the idler arm on the deck WARNING DISCONNECT spark plug wire before servicing unit.
- Disconnect the spark plug wire.

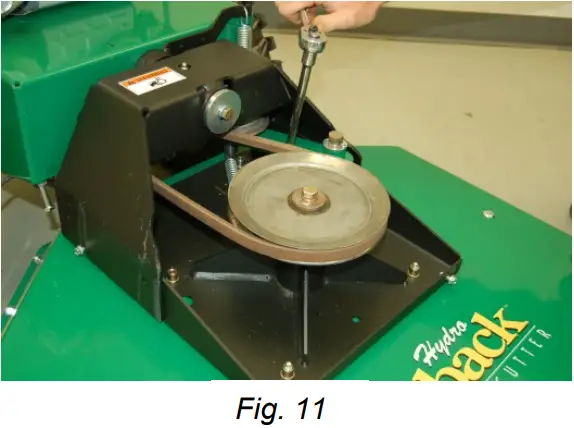

- Loosen four screws (item 27) holding the belt deck cover (item 29) and remove the cover.
- Examine the condition of the belt and the amount of tension on the belt.
- If the idler is not providing enough tension inspect the spring (item 50) attaching it to the spindle base. If not enough tension is being put on the arm, replace the spring.
- Replace the engine base door (item 29) and secure it with screws removed earlier.
- Reconnect the spark plug wire.
- Check belt tension by operating the unit under conditions that caused belt slippage. If the belt continues to slip it may require replacement before the operation can be continued.
BLADE CLUTCH ADJUSTMENT (See pages 17 and 18 for Parts Illustration and Parts List) WARNING DISCONNECT spark plug wire before servicing unit.
- Disconnect the spark plug wire.
- As the clutch/brake wears or begins slipping or squealing, an adjustment may be required to maintain proper cable tension and clutch engagement. A properly adjusted blade clutch should require 10 lbs. of force to depress the end of the clutch lever. The blade clutch cable spring should stretch 1/4” to 3/8” (6.4-9.5 mm).

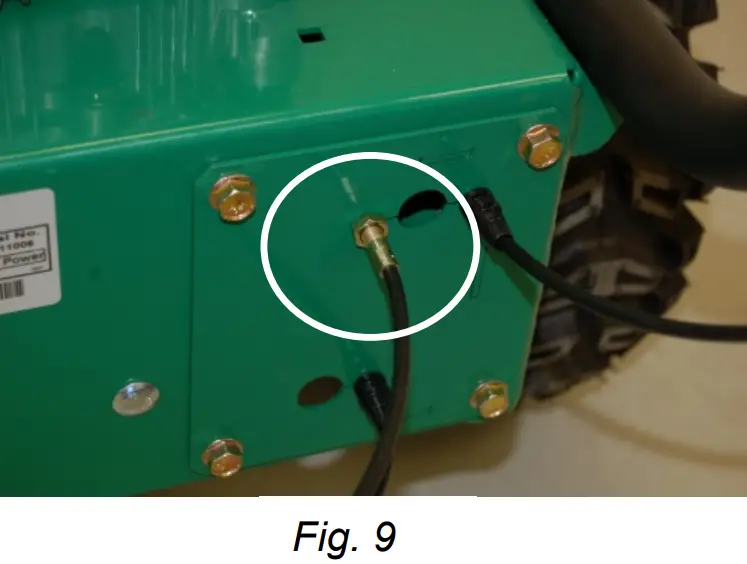

- Adjust cable tension by tightening or loosening the cable adjustment nut on the rear of the engine base (See Fig. 9). Be sure to leave enough slack in the cable to allow the blade brake to engage.
- Reconnect the spark plug wire.
CAUTION If the clutch continues to slip or squeal, do not operate the equipment until adequate adjustment or repair has been performed. Improper adjustment can cause the clutch to overheat and slip, greatly reducing performance and clutch life.

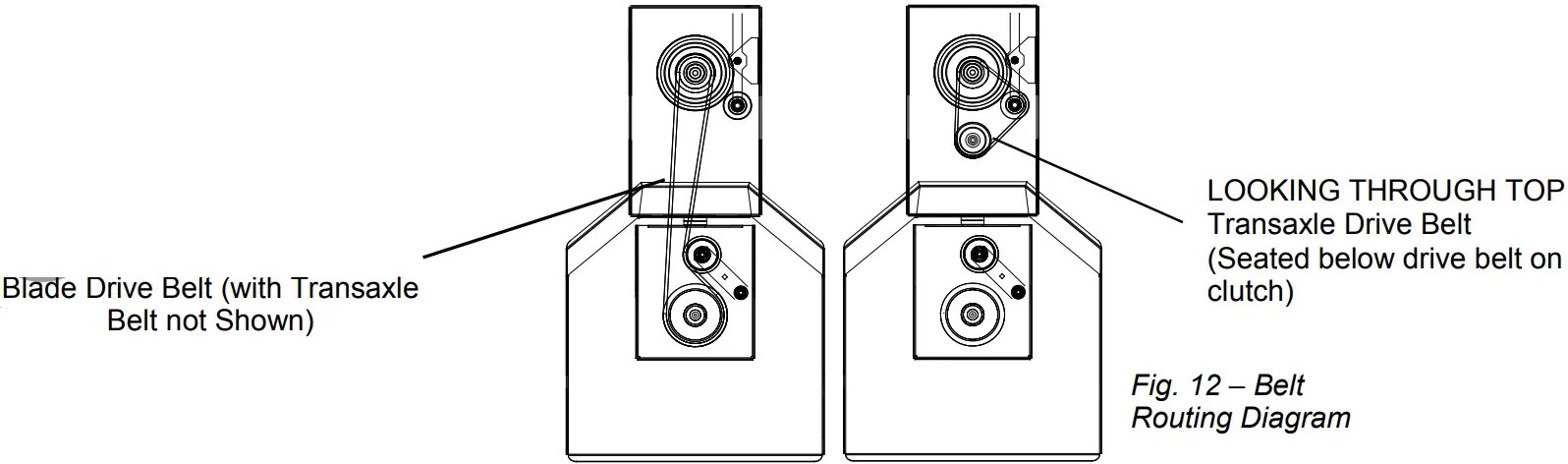

NOTE: See Fig 12 for proper belt routing.

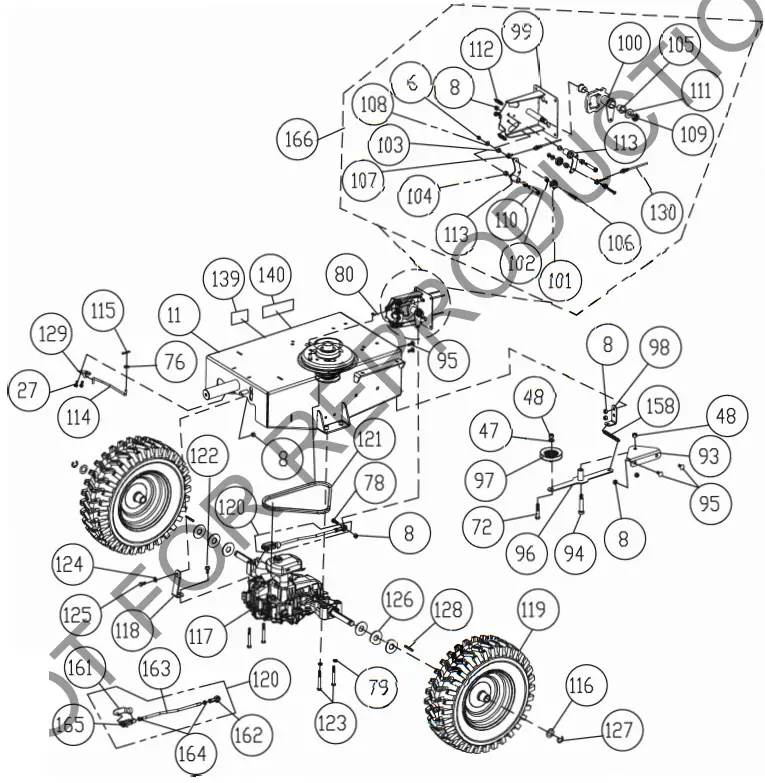

TRANSAXLE DRIVE BELT REMOVAL AND REPLACEMENT (See pages 21 and 22 for Parts Illustration and Parts List) WARNING DISCONNECT spark plug wire before servicing unit.
- Disconnect the spark plug wire.
- Lift and support the rear of the unit to allow access to the underside

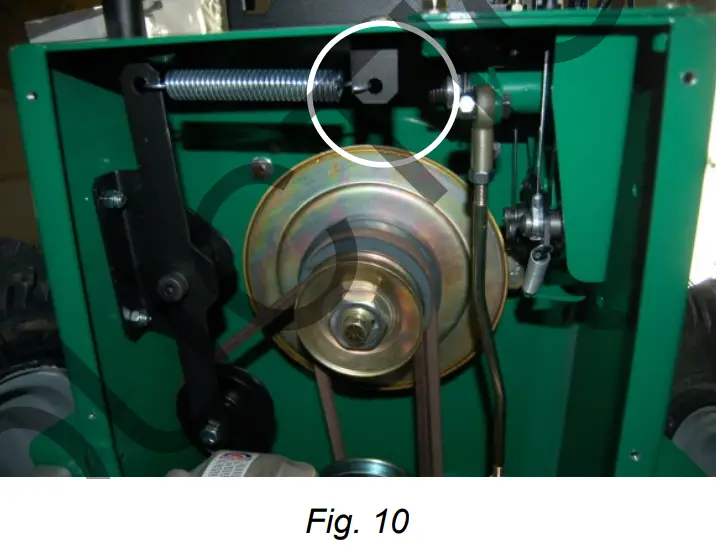

- Detach the spring (item 50) from the bracket (item 98) that is keeping tension on the drive belt. (See Fig. 10)
- Walk the belt (item 121) off of the clutch (item 54) by slowly pulling the engine over. WARNING: use caution not to pinch fingers between the belt and clutch.
- Slip the belt off of the transaxle pulley.
- Replace the belt in reverse order. NOTE: make sure the belt is seated properly in the clutch and transaxle and make sure that it does not bend over the fan blades on the transaxle.
BLADE DRIVE BELT REMOVAL AND REPLACEMENT (See pages 15 and 16 for Parts Illustration and Parts list) WARNING DISCONNECT spark plug wire before servicing unit.
- Disconnect the spark plug wire.
- Lift and support the rear of the unit to allow access to the underside. WARNING THE UNIT IS HEAVY. Make sure support is adequate to support the weight of the machine.
- Loosen the four screws (item 27) holding the deck belt cover (item 29) and remove the cover.
- Follow steps 3 and 4 in the Transaxle drive belt removal section to remove the Transaxle drive belt. NOTE: It may be necessary to pry the idler pulley (item 35) away from its original position to release the belt, using a ratchet with an extension in the square hole on the idler arm should allow the proper leverage to pull it off the belt. (See Fig. 11)
- Relieve the tension on the blade belt by pulling the deck idler arm off of the belt. Then walk the belt off of the deck pulley.
- Feed the belt back to the engine base then slip the belt off of the clutch.
- Install the new belt in reverse order making sure the belt is seated properly in the clutch.
- Reconnect spark plug wire
TRANSAXLE DRIVE ADJUSTMENT WARNING DISCONNECT spark plug wire before servicing unit.
- Disconnect the spark plug wire.

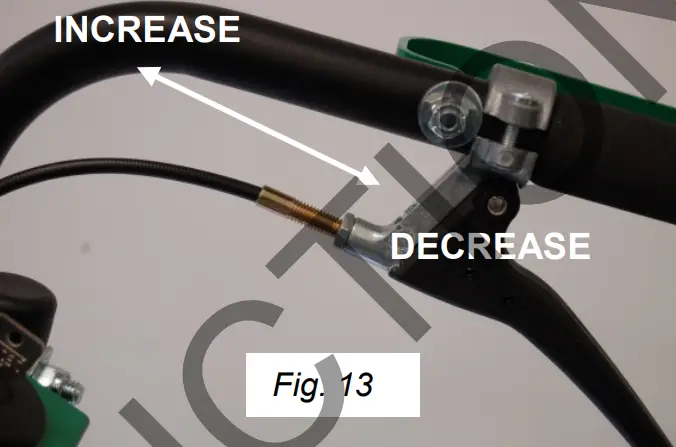

- Adjustments to cable tension are made at the barrel entering the Drive
Control Levers. (See Fig. 13) - Adjust cable tension by tightening or loosening the cable adjustment barrel on the rear of the engine base (see below).
NOTE: Moving the cable adjustment barrel OUT increases tension. Moving the barrel IN decreases tension. Increasing the tension too much will cause the drive to stay engaged whereas not enough will cause it not to engage when the lever is pulled. - Reconnect the spark plug wire.

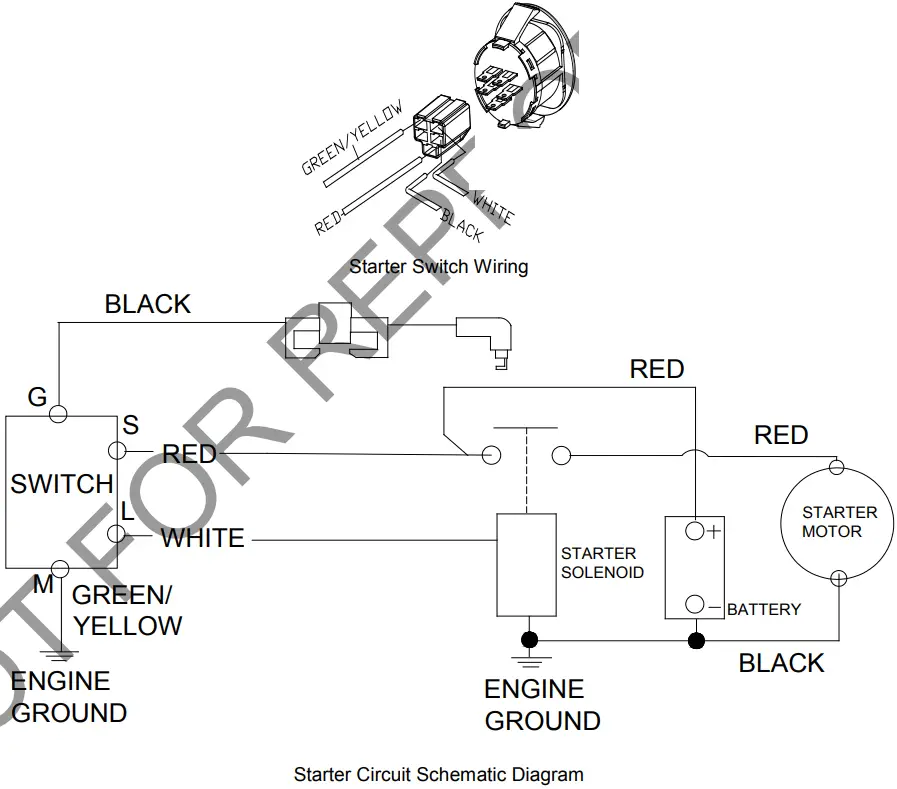

WIRING DIAGRAMS
Battery Care (For Electric-Starting Models)
Proper care can extend the life of a battery. Follow these recommendations to ensure your battery’s best performance and long life:
- Do not allow the battery charge to get too low. If the machine is not used, charge the battery every 4 – 6 weeks. Operate the engine for at least 45 minutes to maintain proper battery charge.
- Store an unused battery in a dry area that does not freeze.
- Do not charge an already charged battery. In theory, you cannot overcharge your battery with a trickle charger; however, when a battery is fully charged and the charger is still on, it generates heat that could be harmful to the battery. A fully charged battery will read 12V-13.2V with a voltmeter.
- Do not continue to crank your engine when the battery charge is low.
Charging the Battery
Operate the engine for at least 45 minutes to maintain proper battery charge. If the battery loses its charge, you will need to use a trickle charger to recharge it. Caution: The charger should have an output of 12 volts at no more than 2 amps. Using a charger with higher amps will cause significant damage to the battery.
- At 1 amp, the battery may need charging for as long as 48 hours.
- At 2 amps, the battery may need charging for as long as 24 hours.
NOTE: Using the Recoil Starter and then running the engine will not recharge a dead or significantly discharged battery.
NOTE: WHEN YOU ARE FINISHED CHARGING THE BATTERY, disconnect the charger from the outlet first, then disconnect the battery charger wires from the battery. If you leave the battery charger wires connected to the battery, the battery will discharge itself back into the charger.
TROUBLESHOOTING
| Problem | Possible Cause | Corrective Action |
| The engine will not start | The throttle is set to a Slow/Stop position. | Move the throttle to a fast position. |
| Out of gasoline. | Fill the gas tank. | |
| Old or contaminated gasoline. | Drain the gas tank and fill it with fresh gasoline. | |
| The spark plug wire disconnected. | Connect spark plug wire. | |
| Dirty air cleaner. | Clean or replace air cleaner. | |
| The starter does not turn (Electric start only) | Battery low or dead. | Charge or replace the battery. |
| Battery cable disconnected or corroded. | Clean and secure battery terminals. | |
| Defective starter switch or wiring harness. | Replace the starter switch or wiring harness. | |
| Defective starter. | Replace starter. | |
| Will not cut or cutting performance is poor | The blade drive cable tension is incorrect. | Adjust blade drive cable tension. |
| Dull blade. | Sharpen or replace the blade. NOTE: a new bolt will need to be installed if the blade is removed. | |
| Clogged deck. | Unclog deck. | |
| Excessive debris built up on or blocked the blade. | Clear debris from the blade area. | |
| Engine RPM set too low. | Check engine RPM. | |
| Abnormal vibrations | Blade loses or is out of balance. | Check the blade for tightness. Rebalance if necessary. |
| Engine loose. | Check engine mounting bolts. | |
| The blade drive belt is worn. | Replace blade drive belt. | |
| Belt slips or smokes | The belt tension is too low. | Adjust belt tension. |
| The belt is worn or stretched. | Replace belt. | |
| Pulleys are worn or damaged. | Replace pulleys. | |
| Clutch slips or squeals | The Clutch cable tension is too low. | Replace the spring on the idler arm. |
| Clutch wore or damaged. | Replace worn or defective clutch assembly parts. | |
| Blade brake will not engage | Inadequate slack in the clutch cable. | Adjust clutch cable. |
| Clutch wore or damaged. | Replace clutch/brake assembly. | |
| The transaxle will not engage | The Clutch lever is not engaging clutch. | Adjust clutch cable. |
| The Clutch cable is defective. | Replace cable. | |
| The belt is worn or broken. | Replace belt. | |
| The transaxle will not disengage | Clutch cable out of adjustment. | Adjust clutch cable. |
| The engine will not turn over | Defective blade clutch. | Replace clutch. |
| Engine problem. | Contact an authorized servicing dealer for your engine. |
BC26 HYDRO-DRIVE DECK PARTS DRAWING
Note: Item No. 169 includes:
- Item No. 44
- Item No. 20
- Billy Goat
Part No. 501101
BC26 HYDRO-DRIVE DECK PARTS LIST
| ITEM # | DESCRIPTION | BC2601HEBH | BC2601HEBHFT | BC2601HH | BC2601HHFT | ||||
| P/N | QTY | P/N | QTY | P/N | QTY | P/N | QTY | ||
| 1 | SCREWCAP 3/8-24 X 1” HCS GR. 8 | 900154 | 1 | 900154 | 1 | 900154 | 1 | 900154 | 1 |
| 2 | BLADE 26” FLAT BC26 | 501224 | 1 | 501224 | 1 | 501224 | 1 | 501224 | 1 |
| 3 | WASHER DECK RETAINING | 501214 | 1 | 501214 | 1 | 501214 | 1 | 501214 | 1 |
| 4 | LABEL BADGING BC26 HYDRO | 501500 | 1 | 501500 | 1 | 501500 | 1 | 501500 | 1 |
| 5 | LABEL DANGER | 400424 | 4 | 400424 | 4 | 400424 | 4 | 400424 | 4 |
| 6 | NUT LOCK 1/4-20 ZP | 8160001 | 5 | 8160001 | 5 | 8160001 | 5 | 8160001 | 5 |
| 7 | BOLT CARRIAGE 1/4-20 X 3/4” HCS ZP | 8024021 | 5 | 8024021 | 5 | 8024021 | 5 | 8024021 | 5 |
| 8 | NUT LOCK 5/16-18 ZP | 8160002 | 19 | 8160002 | 19 | 8160002 | 19 | 8160002 | 19 |
| 9 | WASHER 5/16 FLAT | 8171003 | 16 | 8171003 | 16 | 8171003 | 16 | 8171003 | 16 |
| 10 | SCREWCAP 5/16”-18 X 1 1/2 HCS ZP | 8041030 | 6 | 8041030 | 6 | 8041030 | 6 | 8041030 | 6 |
| 12 | CARRIAGE BOLT 5/16”-18 X 1 3/4” | 8024043 | 4 | 8024043 | 4 | 8024043 | 4 | 8024043 | 4 |
| 13 | CARRIAGE BOLT 5/16”-18 X 1” | 8024040 | 9 | 8024040 | 9 | 8024040 | 9 | 8024040 | 9 |
| 14 | PLATE CLAMP SKIRTING BC26 | 501239 | 3 | 501239 | 3 | 501239 | 3 | 501239 | 3 |
| 15 | DEFLECTOR RUBBER | 501231 | 1 | 501231 | 1 | 501231 | 1 | 501231 | 1 |
| 16 | BAR GUARD BC26 | 501403 | 1 | 501403 | 1 | 501403 | 1 | 501403 | 1 |
| 17 | HINGE DEFLECTOR BC26 | 501211 | 1 | 501211 | 1 | 501211 | 1 | 501211 | 1 |
| 18 | SKID BC26 | 501407 | 2 | 501407 | 2 | 501407 | 2 | 501407 | 2 |
| 19 | DECK BC26 WA W/LABELS | 501600 | 1 | 501600 | 1 | 501600 | 1 | 501600 | 1 |
| 20 | LABEL DANGER GUARD | 900327 | 1 | 900327 | 1 | 900327 | 1 | 900327 | 1 |
| 21 | SCREW SER HEX WASHER FLING | 791080 | 6 | 791080 | 6 | 791080 | 6 | 791080 | 6 |
| 22 | SCREWCAP 3/8”-16 X 1 1/4” HCS ZP | 8041051 | 1 | 8041051 | 1 | 8041051 | 1 | 8041051 | 1 |
| 23 | SCREWCAP 9/16”-18 X 1 3/4” GR 8 | 501345 | 1 | 501345 | 1 | 501345 | 1 | 501345 | 1 |
| 24 | PULLEY 7” OD X 1.000 BORE | 501308 | 1 | 501308 | 1 | 501308 | 1 | 501308 | 1 |
| 26 | BELT 6972 POWERED | 501220 | 1 | 501220 | 1 | 501220 | 1 | 501220 | 1 |
| 27 | SCREW SELT TAP 1/4-20 X 5/8” HWH TYPE F | 890359 | 4 | 890359 | 4 | 890359 | 4 | 890359 | 4 |
| 28 | LABEL PRODUCT DECAL LG CIRCLE | 430303 | 1 | 430303 | 1 | 430303 | 1 | 430303 | 1 |
| 29 | THE COVER BELT DECK WAS BC26 W/LABEL | 501602 | 1 | 501602 | 1 | 501602 | 1 | 501602 | 1 |
| 30 | PIN COTTER 1/8” X 1” | 8197031 | 1 | 8197031 | 1 | 8197031 | 1 | 8197031 | 1 |
| 31 | WASHER .765 ID X 1.25 OD X .06 THK | 850238 | 1 | 850238 | 1 | 850238 | 1 | 850238 | 1 |
| 32 | WASHER LOCK 3/8 S/T MED | 8177012 | 1 | 8177012 | 1 | 8177012 | 1 | 8177012 | 1 |
| 33 | WASHER 1.5 OD X .453 ID X .25 THK | 440153 | 1 | 440153 | 1 | 440153 | 1 | 440153 | 1 |
| 34 | TUBE PIVOT IDLER VQ | 830526 | 1 | 830526 | 1 | 830526 | 1 | 830526 | 1 |
| 35 | PULLEY IDLER 4.00 OD X 3/8” BORE | 500113 | 1 | 500113 | 1 | 500113 | 1 | 500113 | 1 |
| 36 | BUSHING PIVOT FRAME AE | 360183 | 1 | 360183 | 1 | 360183 | 1 | 360183 | 1 |
| 37 | ARM IDLER DECK WA BC | 501103 | 1 | 501103 | 1 | 501103 | 1 | 501103 | 1 |
| 38 | ZERK FITTING GREASE | 610363 | 1 | 610363 | 1 | 610363 | 1 | 610363 | 1 |
| 39 | WASHER BLADE BC26 | 501346 | 1 | 501346 | 1 | 501346 | 1 | 501346 | 1 |
| 41 | SPACER SPINDLE BEARING BC26 | 501245 | 1 | 501245 | 1 | 501245 | 1 | 501245 | 1 |
| 43 | BEARING, BALL 1641 – 2RS-PRX | 501302 | 2 | 501302 | 2 | 501302 | 2 | 501302 | 2 |
| 44 | BUSHING 1.500 ID X 1.5 LONG FLANGED | 501217 | 2 | 501217 | 2 | 501217 | 2 | 501217 | 2 |
| 45 | BRACKET DECK MOUNT WA BC26 W/LABEL | 501604 | 1 | 501604 | 1 | 501604 | 1 | 501604 | 1 |
| 46 | SHAFT BLADE BC26 | 501341 | 1 | 501341 | 1 | 501341 | 1 | 501341 | 1 |
| 47 | WASHER 3/8” SAE | 8172009 | 1 | 8172009 | 1 | 8172009 | 1 | 8172009 | 1 |
| 48 | NUT LOCK 3/8-16 HEX | 8160003 | 1 | 8160003 | 1 | 8160003 | 1 | 8160003 | 1 |
| 49 | ARM RTN WA BC26 | 501116 | 2 | 501116 | 2 | 501116 | 2 | 501116 | 2 |
| 50 | SPRING LIFT ASSISTS WITH TENSION | 351254 | 2 | 351254 | 2 | 351254 | 2 | 351254 | 2 |
| 51 | SCREWCAP 3/8”-16 X 3 3/4” HCS ZP | 8041061 | 1 | 8041061 | 1 | 8041061 | 1 | 8041061 | 1 |
| 52 | BUSHING PIVOT LIFT | 360138 | 1 | 360138 | 1 | 360138 | 1 | 360138 | 1 |
| 53 | NUT LOCK 3/8”-16 LT WT TH ZP | 8161042 | 1 | 8161042 | 1 | 8161042 | 1 | 8161042 | 1 |
| 136 | LABEL WARNING FLYING DEBRIS | 810736 | 1 | 810736 | 1 | 810736 | 1 | 810736 | 1 |
| 157 | KEY 1/4 SQ. X 0.75” | 9201109 | 2 | 9201109 | 2 | 9201109 | 2 | 9201109 | 2 |
| 158 | SPRING IDLER BC | 501261 | 1 | 501261 | 1 | 501261 | 1 | 501261 | 1 |
| 167 | ADAPTER BLADE WA BC26 | 501343 | 1 | 501343 | 1 | 501343 | 1 | 501343 | 1 |
| 168 | BLADE PULLEY AND ADAPTER KIT SERVICE | 501611 | 1 | 501611 | 1 | 501611 | 1 | 501611 | 1 |
| 169 | BRACKET, DECK MOUNT WA W/LABEL | 501101-S | 1 | 501101-S | 1 | 501101-S | 1 | 501101-S | 1 |
BC26 HYDRO-DRIVE ENGINE PARTS DRAWING
BC26 HYDRO-DRIVE ENGINE PARTS LIST
| ITEM NO | DESCRIPTION | BC2601HEBH | BC2601HEBHFT | BC2601HH | BC2601HHFT | ||||
| P/N | QTY | P/N | QTY | P/N | QTY | P/N | QTY | ||
| 1 | SCREWCAP 3/8-24 X 1” HCS GR. 8 | 900154 | 1 | 900154 | 1 | 900154 | 1 | 900154 | 1 |
| 3 | WASHER DECK RETAINING | 501214 | 1 | 501214 | 1 | 501214 | 1 | 501214 | 1 |
| 8 | NUT LOCK 5/16”-18 ZP | 8160002 | 2 | 8160002 | 2 | 8160002 | 2 | 8160002 | 2 |
| 11 | ENGINE BASE WA W/LABELS | 501603 | 1 | 501603 | 1 | 501603 | 1 | 501603 | 1 |
| 27 | SCREW SELT TAP 1/4-20 X 5/8” HWH TYPE F | 890359 | 4 | 890359 | 4 | 890359 | 4 | 890359 | 4 |
| 32 | WASHER LOCK 3/8” S/T MED | 8177012 | 1 | 8177012 | 1 | 8177012 | 1 | 8177012 | 1 |
| 54 | CLUTCH | 501223-S | 1 | 501223-S | 1 | 501223- S | 1 | 501223-S | 1 |
| 55 | WASHER LOCK S/T MED | 8177013 | 1 | 8177013 | 1 | 8177013 | 1 | 8177013 | 1 |
| 56 | SCREWCAP 7/16”-20 X 3 1/2” GR 8 W/PATCH | 440150 | 1 | 440150 | 1 | 440150 | 1 | 440150 | 1 |
| 58 | ENGINE 13 HP HONDA ELEC GXV390UT1 DEX3 | 501362 | 1 | 501362 | 1 | – | – | – | – |
| ENGINE 13 HP HONDA PULL GXV390UT1 DAX | – | – | – | – | 501361 | 1 | 501361 | 1 | |
| 59 | SCREWCAP 5/16”-18 X 1 3/4 HCS ZP | 8041031 | 2 | 8041031 | 2 | 8041031 | 2 | 8041031 | 2 |
| SCREWCAP 1/4″-28 X 1/2″ HCS GR5 ZP | – | – | – | – | – | – | – | – | |
| 60 | WASHER 5/16” FLAT | 8171003 | 4 | 8171003 | 4 | 8171003 | 4 | 8171003 | 4 |
| 61 | LABEL WARNING FUEL | 100261 | 1 | 100261 | 1 | 100261 | 1 | 100261 | 1 |
| 62 | LABEL SPARK ARRESTOR | 100256 | 1 | 100256 | 1 | 100256 | 1 | 100256 | 1 |
| 63 | PLATE CHOKE BC26 | 500325 | 1 | 500325 | 1 | 500325 | 1 | – | – |
| 64 | SCREWCAP 5/16-24 X 1” GR 8 ZP W/PATCH | 400164 | 2 | 400164 | 2 | 400164 | 2 | 400164 | 2 |
| 65 | SCREWCAP 5/16”-18 X 2” HCS ZP | 8041032 | 2 | 8041032 | 2 | 8041032 | 2 | 8041032 | 2 |
| 66 | NUT FLANGE 5/16”-18 ZP | 350346 | 4 | 350346 | 4 | 350346 | 4 | 350346 | 4 |
| 67 | SCREW SER HEX WSHR FLNG 5/16-18 X 3/4” | 351264 | 4 | 351264 | 4 | 351264 | 4 | 351264 | 4 |
| 68 | GUARD REAR HYDRO BC26 | 501295 | 1 | 501295 | 1 | 501295 | 1 | 501295 | 1 |
| 80 | CABLE CLUTCH | 501279 | 1 | 501279 | 1 | 501279 | 1 | 501279 | 1 |
| 132 | LABEL MADE IN USA | 520116 | 1 | 520116 | 1 | 520116 | 1 | 520116 | 1 |
| 134 | LABEL SAFETY PROTECTS READ MANUAL | 100346 | 1 | 100346 | 1 | 100346 | 1 | 100346 | 1 |
| 159 | PIN CLEVIS 0.25 X 0.050 | 440124 | 1 | 440124 | 1 | 440124 | 1 | 440124 | 1 |
| 160 | PIN, RUE RING 0.250″ | 371275 | 1 | 371275 | 1 | 371275 | 1 | 371275 | 1 |
| 170 | LABEL WARNING FUEL EN/SP | – | – | – | – | – | – | – | – |
BC26 HYDRO-DRIVE HANDLE PARTS DRAWING
BC26 HYDRO-DRIVE HANDLE PARTS LIST
| ITEM NO | DESCRIPTION | BC2601HEBH | BC2601HEBHFT | BC2601HH | BC2601HHFT | ||||
| P/N | QTY | P/N | QTY | P/N | QTY | P/N | QTY | ||
| 8 | NUT LOCK 5/16-18 ZP | 8160002 | 3 | 8160002 | 3 | 8160002 | 3 | 8160002 | 3 |
| 48 | NUT LOCK 3/8-16 HEX | 8160003 | 8 | 8160003 | 8 | 8160003 | 8 | 8160003 | 8 |
| 69 | HANDLE LOWER LEFT | 501400-P | 1 | 501400-P | 1 | 501400-P | 1 | 501400-P | 1 |
| 70 | BRACKET THROTTLE BC26 | 501251 | 2 | 501251 | 2 | 501251 | 2 | 501251 | 2 |
| 72 | SCREWCAP 3/8”-16 X 2” | 8041054 | 4 | 8041054 | 4 | 8041054 | 4 | 8041054 | 4 |
| 73 | WASHER 3/8” FLAT | 8171004 | 12 | 8171004 | 12 | 8171004 | 12 | 8171004 | 12 |
| 74 | BOLT SHOULDER 3/8”-16 X 1 1/2” | 501313 | 1 | 501313 | 1 | 501313 | 1 | 501313 | 1 |
| 75 | SCREWCAP 3/8”-16 X 3” HCS ZP | 8041058 | 4 | 8041058 | 4 | 8041058 | 4 | 8041058 | 4 |
| 76 | WASHER 1/4” FLAT | 8171002 | 2 | 8171002 | 2 | 8171002 | 2 | 8171002 | 2 |
| 77 | BOLT CARRIAGE 5/16”-18 X 1 1/2” ZP | 8024042 | 2 | 8024042 | 2 | 8024042 | 2 | 8024042 | 2 |
| 78 | SCREWCAP 5/16”-18 X 1” ZP | 8041028 | 2 | 8041028 | 2 | 8041028 | 2 | 8041028 | 2 |
| 79 | WASHER LOCK 5/16” S/T MED | 8177011 | 2 | 8177011 | 2 | 8177011 | 2 | 8177011 | 2 |
| 80 | CABLE CLUTCH | 501279 | 1 | 501279 | 1 | 501279 | 1 | 501279 | 1 |
| 81 | LEVER CONTROL BLADE | 500312 | 1 | 500312 | 1 | 500312 | 1 | 500312 | 1 |
| 82 | CONTROL THROTTLE | 440013 | 1 | 440013 | 1 | 440013 | 1 | 440013 | 1 |
| 83 | NUT LOCK LT #10-24 HEX | 8164005 | 2 | 8164005 | 2 | 8164005 | 2 | 8164005 | 2 |
| 84 | SCREW MACHINE FLAT HD PHIL #10-24 | 830514 | 2 | 830514 | 2 | 830514 | 2 | 830514 | 2 |
| 85 | LABEL DRIVE DIRECTION | 501502 | 1 | 501502 | 1 | 501502 | 1 | 501502 | 1 |
| 86 | PLUG TUBE INSERT 1.25” OD | 791056 | 4 | 791056 | 4 | 791056 | 4 | 791056 | 4 |
| 87 | GRIP HANDLE | 500267 | 2 | 500267 | 2 | 500267 | 2 | 500267 | 2 |
| 88 | GUARD HAND BC26 | 501215 | 2 | 501215 | 2 | 501215 | 2 | 501215 | 2 |
| 89 | CONTROL MAGURA | 351209 | 2 | 351209 | 2 | 351209 | 2 | 351209 | 2 |
| 90 | GRIP LEVER 0.125” X 1” X 5” RED | 500379 | 1 | 500379 | 1 | 500379 | 1 | 500379 | 1 |
| 91 | HANDLE UPPER | 501402-S | 1 | 501402-S | 1 | 501402-S | 1 | 501402-S | 1 |
| 92 | HANDLE LOWER RIGHT | 501401 | 1 | 501401 | 1 | 501401 | 1 | 501401 | 1 |
| 107 | CABLE SPEED CONTROL RT SERVICE | 501276-S | 1 | 501276-S | 1 | 501276 | 1 | 501276 | 1 |
| 130 | CABLE SPEED CONTROL LFT SERVICE | 351271-S | 1 | 351271-S | 1 | 351271 | 1 | 351271 | 1 |
| 135 | LABEL BLADE ENGAGE | 500177 | 1 | 500177 | 1 | 500177 | 1 | 500177 | 1 |
| 137 | LABEL THROTTLE | 810656 | 1 | 810656 | 1 | – | – | – | – |
| LABEL THROTTLE PULL START BC | – | – | – | – | 501314 | 1 | 501314 | 1 | |
| 138 | CABLE THROTTLE | 440178 | 1 | 440178 | 1 | 440014 | 1 | 440014 | 1 |
| 141 | BATTERY BRACKET REAR BC | 500347 | 1 | 500347 | 1 | – | – | – | – |
| 142 | BATTERY 12V W/LABEL | 520200 | 1 | 520200 | 1 | – | – | – | – |
| 143 | BOX THROTTLE CONTROL | 501250 | 1 | 501250 | 1 | – | – | – | – |
| 144 | SWITCH IGNITION | 501286 | 1 | 501286 | 1 | – | – | – | – |
| 145 | DELTA KEY REPLACEMENT | 501286-S | 1 | 501286-S | 1 | – | – | – | – |
| 146 | CABLE BATTERY BLACK 10” | 790133 | 1 | 790133 | 1 | ||||
| 147 | BUNGEE CORD BLACK 9” STRAP 79 | 790303 | 1 | 790303 | 1 | – | – | – | – |
| 148 | CABLE BATTERY POSITIVE BC26 | 501222 | 1 | 501222 | 1 | – | – | – | – |
| 150 | TUBE PIVOT IDLER VQ | 830526 | 2 | 830526 | 2 | – | – | – | – |
| 151 | BOLT CARRIAGE 5/16”-18 X 3/4” ZP | 8024039 | 2 | 8024039 | 2 | – | – | – | – |
| 152 | SCREWCAP 1/4”-20 X 1” HCS ZP | 8041006 | 2 | 8041006 | 2 | – | – | – | – |
| 153 | HARNESS WIRING BC26 | 501219 | 1 | 501219 | 1 | – | – | – | – |
| 154 | WASHER 5/16” FLAT ZP | 8171003 | 2 | 8171003 | 2 | – | – | – | – |
| 155 | NUT LOCK 5/16”-18 HEX ZP | 8160002 | 2 | 8160002 | 2 | – | – | – | – |
| 156 | NUT LOCK 1/4”-20 HEX | 8160001 | 2 | 8160001 | 2 | – | – | – | – |
BC26 HYDRO-DRIVE TRANS PARTS DRAWING
BC26 HYDRO-DRIVE TRANS PARTS LIST
| ITEM NO | DESCRIPTION | BC2601HEBH | BC2601HEBHFT | BC2601HH | BC2601HHFT | ||||
| P/N | QTY | P/N | QTY | P/N | QTY | P/N | QTY | ||
| 6 | NUT LOCK 1/4”-20 HEX ZP | 8160001 | 2 | 8160001 | 2 | 8160001 | 2 | 8160001 | 2 |
| 8 | NUT LOCK 5/16”-18 | 8160002 | 8 | 8160002 | 8 | 8160002 | 8 | 8160002 | 8 |
| 11 | ENGINE BASE WA W/LABELS | 501603 | 1 | 501603 | 1 | 501603 | 1 | 501603 | 1 |
| 27 | SCREW SELT TAP 1/4-20 X 5/8” HWH TYPE F | 890359 | 2 | 890359 | 2 | 890359 | 2 | 890359 | 2 |
| 47 | WASHER 3/8” SAE | 8172009 | 1 | 8172009 | 1 | 8172009 | 1 | 8172009 | 1 |
| 48 | NUT LOCK 3/8”-16 HEX | 8160003 | 2 | 8160003 | 2 | 8160003 | 2 | 8160003 | 2 |
| 72 | SCREWCAP 3/8”-16 X 2” HCS ZP | 8041054 | 1 | 8041054 | 1 | 8041054 | 1 | 8041054 | 1 |
| 76 | WASHER 1/4” SAE | 8172007 | 1 | 8172007 | 1 | 8172007 | 1 | 8172007 | 1 |
| 78 | SCREWCAP 5/16”-18 X 1” HCS ZP | 8041028 | 1 | 8041028 | 1 | 8041028 | 1 | 8041028 | 1 |
| 79 | WASHER LOCK 5/16” S/T MED | 8177011 | 4 | 8177011 | 4 | 8177011 | 4 | 8177011 | 4 |
| 80 | CABLE CLUTCH | 501279 | 1 | 501279 | 1 | 501279 | 1 | 501279 | 1 |
| 93 | BRACKET IDLER ARM HYDRO BC26 | 501269 | 1 | 501269 | 1 | 501269 | 1 | 501269 | 1 |
| 94 | BOLT SHOULDER 1/2” X 2” | 520031 | 1 | 520031 | 1 | 520031 | 1 | 520031 | 1 |
| 95 | BOLT CARRIAGE 5/16”-18 X 3/4” PLAIN | 9024039 | 4 | 9024039 | 4 | 9024039 | 4 | 9024039 | 4 |
| 96 | ARM IDLER DRIVE HYDRO BC26 WA | 501112 | 1 | 501112 | 1 | 501112 | 1 | 501112 | 1 |
| 97 | PULLEY INSIDE IDLER BC26 | 501216 | 1 | 501216 | 1 | 501216 | 1 | 501216 | 1 |
| 98 | BRACKET SPRING IDLER | 501297 | 1 | 501297 | 1 | 501297 | 1 | 501297 | 1 |
| 99 | BRACKET, SPEED CONTROL WA | 373113 | 1 | 373113 | 1 | 373113 | 1 | 373113 | 1 |
| 100 | WA, SPEED CONTROL CAM, LEFT | 351129 | 1 | 351129 | 1 | 351129 | 1 | 351129 | 1 |
| 101 | BEARING 1/2” ID X 1.125” OD | 351257 | 2 | 351257 | 2 | 351257 | 2 | 351257 | 2 |
| 102 | SPACER STEPPED SPEED CONTROL HYDRO DR | 351347 | 2 | 351347 | 2 | 351347 | 2 | 351347 | 2 |
| 103 | SPACER EYELET SPEED CONTROL | 351348 | 2 | 351348 | 2 | 351348 | 2 | 351348 | 2 |
| 104 | BUSHING 3/8” ID 1/2” OD X 3/8” LONG | 840078 | 4 | 840078 | 4 | 840078 | 4 | 840078 | 4 |
| 105 | BUSHING, .500″ I.D. | 362254 | 2 | 362254 | 2 | 362254 | 2 | 362254 | 2 |
| 106 | SCREWCAP 1/4-20 X 1 3/4 SKT BUT HD | 840199 | 2 | 840199 | 2 | 840199 | 2 | 840199 | 2 |
| 107 | CABLE SPEED CONTROL RT SERVICE | 501276-S | 1 | 501276-S | 1 | 501276-S | 1 | 501276-S | 1 |
| 108 | WASHER 1/4” SAE | 8172007 | 2 | 8172007 | 2 | 8172007 | 2 | 8172007 | 2 |
| 109 | NUT-HEX-NYLK, FLG .375″-16 ZP | 8165003 | 1 | 8165003 | 1 | 8165003 | 1 | 8165003 | 1 |
| 110 | BOLT SHOULDER 3/8” X 1 3/4” | 351258 | 2 | 351258 | 2 | 351258 | 2 | 351258 | 2 |
| 113 | BELLCRANK SPEED CONTROL BC26 | 501114 | 2 | 501114 | 2 | 501114 | 2 | 501114 | 2 |
| 114 | ROD TRANS BYPASS BC26 | 501265 | 1 | 501265 | 1 | 501265 | 1 | 501265 | 1 |
| 115 | HAIRPIN COTTER 1/4” | 900471 | 1 | 900471 | 1 | 900471 | 1 | 900471 | 1 |
| 116 | WASHER .765 ID X 1.25” OD X .06 | 850238 | 2 | 850238 | 2 | 850238 | 2 | 850238 | 2 |
| 117 | TRANSAXLE TUFF TORQ BC26 | 501218 | 1 | 501218 | 1 | 501218 | 1 | 501218 | 1 |
| 118 | BRACKET SUPPORT HYDRO TRANSAXLE | 501267 | 1 | 501267 | 1 | 501267 | 1 | 501267 | 1 |
| 119 | TIRE 16” AG SP | 501275 | 2 | 501353 | 2 | 501275 | 2 | 501353 | 2 |
| 120 | CONTROL ROD ASSY | 501025-S | 1 | 501025-S | 1 | 501025-S | 1 | 501025-S | 1 |
| 121 | BELT HYDRO TRANSAXLE BC26 | 501268 | 1 | 501268 | 1 | 501268 | 1 | 501268 | 1 |
| 122 | SCREW SELF-TAP 5/16” X 3/4” HEX | 8123128 | 1 | 8123128 | 1 | 8123128 | 1 | 8123128 | 1 |
| 123 | SCREWCAP 5/16”-18 X 2 3/4” HCS ZP | 8041035 | 4 | 8041035 | 4 | 8041035 | 4 | 8041035 | 4 |
| 124 | WASHER 5/16” SAE | 8172008 | 1 | 8172008 | 1 | 8172008 | 1 | 8172008 | 1 |
| 125 | SCREWCAP 5/16”-18 X 3/4” HCS ZP | 8041026 | 1 | 8041026 | 1 | 8041026 | 1 | 8041026 | 1 |
| 126 | WASHER 3/4” SAE | 8172015 | 6 | 8172015 | 6 | 8172015 | 6 | 8172015 | 6 |
| 127 | RING RETAINING E 3/4” | 850230 | 2 | 850230 | 2 | 850230 | 2 | 850230 | 2 |
| 128 | KEY 3/16” SQ X 2 1/8” | 9201087 | 2 | 9201087 | 2 | 9201087 | 2 | 9201087 | 2 |
| 129 | BRACKET BYPASS ROD | 501272 | 1 | 501272 | 1 | 501272 | 1 | 501272 | 1 |
| 130 | CABLE SPEED CONTROL LFT SERVICE | 351271-S | 1 | 351271-S | 1 | 351271-S | 1 | 351271-S | 1 |
| 139 | LABEL DRIVE RELEASE | 501504 | 1 | 501504 | 1 | 501504 | 1 | 501504 | 1 |
| 140 | LABEL CHOCK WHEELS | 500168 | 2 | 500168 | 2 | 500168 | 2 | 500168 | 2 |
| 158 | SPRING IDLER BC | 501261 | 1 | 501261 | 1 | 501261 | 1 | 501261 | 1 |
| 161 | SPRING PIN CONTROL ROD | 501262 | 1 | 501262 | 1 | 501262 | 1 | 501262 | 1 |
| 162 | SPHERICAL ROD END MSF-5 | 351278 | 1 | 351278 | 1 | 351278 | 1 | 351278 | 1 |
| 163 | CONTROL ROD | 501260 | 1 | 501260 | 1 | 501260 | 1 | 501260 | 1 |
| 164 | NUT JAM 5/16” NC | 8143002 | 2 | 8143002 | 2 | 8143002 | 2 | 8143002 | 2 |
| 165 | YOKE FEMALE STEEL 5/16” – 24 RH X 2.25” | 501274 | 1 | 501274 | 1 | 501274 | 1 | 501274 | 1 |
| 166 | KIT SPEED CONTROL NO CABLES BC26 | 501607 | 1 | 501607 | 1 | 501607 | 1 | 501607 | 1 |
Specialty Turf Products | Billy Goat
P65Warnings.ca.gov
