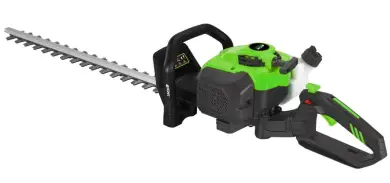

GARDEN JACK GHT26C Hedge Trimmer
Safety Warnings

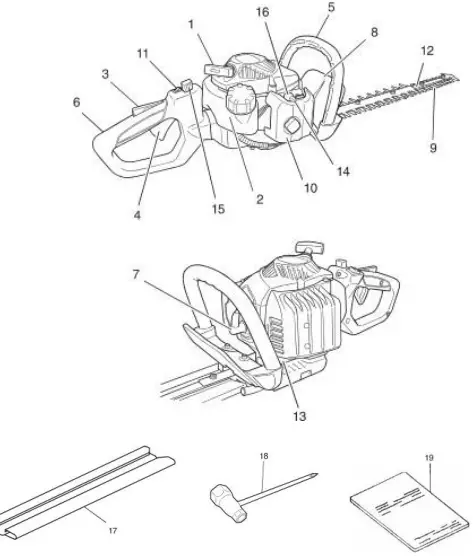

Machine Info & Diagram
- Recoil starter
- Fuel tank
- Throttle lever lockout
- Throttle lever
- Front handle
- Rear handle
- Spark plug
- Hand guard
- Cutting blade
- Air cleaner
- Stop switch
- Blade guide
- Gear case
- Choke lever
- Lock lever
- Priming pump
- Blade case
- Combibox spanner
- Instructions

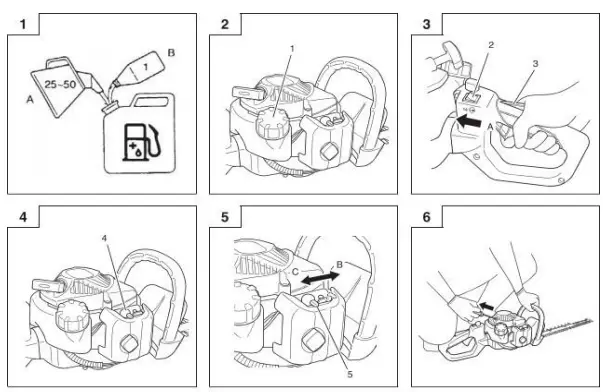

Preparation and Use
The hedge trimmer is equipped with a 2-stroke engine. Always run the engine on fuel, mixed with oil.
Provide good ventilation, when handling fuel.

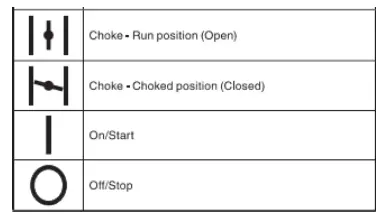

Meanings:
Technical Data
| – Maximum Engine Power | 0.65 kW |
| – Horse Power | 0.9HP |
| – Motor Type | 2 STROKE |
| – Displacement | 26cc |
| – Tank Capacity | 0.32L |
| – Work Life | 120Hrs |
| – Laser Cut | 624mm |
| – Noise Level | 110dB |
| – Fuel Ratio | FD40:1 |
| – Blade Type | Double |
| – Blade Length | 450/550mm |
| – Net Weight | 4.5kg |

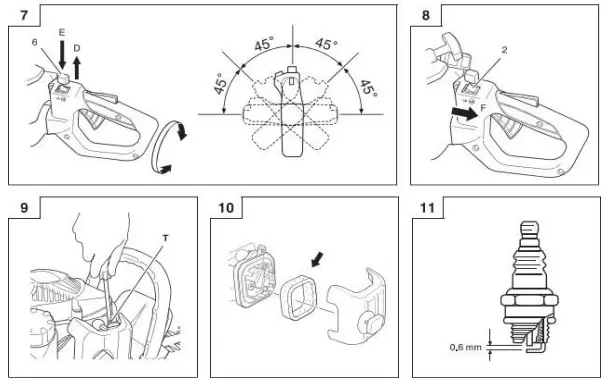

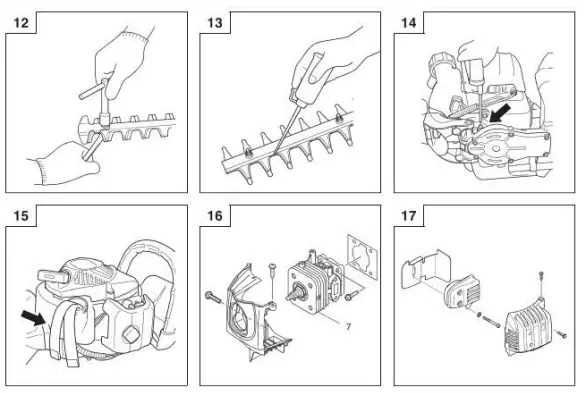

Maintenance
Maintenance Hints
- Only use original replacement parts and original accessories. The use of unapproved accessories and cutting tools increases the risk of accidents.
- Incorrect repair and poor maintenance can shorten the life of the machine and increase the risk of accidents. Do not perform any modifications to the machine as this will endanger your safety.
- The condition of the cutting tool, the protective hood and the shoulder harness must be checked before starting work. Particular attention is to be paid to the cutting tool, which must be correctly sharpened.
- Turn off the engine and remove the spark plug cap when replacing or sharpening the cutting tool, and also when cleaning the cutting tool.
- Never straighten or weld damaged cutting tools.
- Clean the machine at regular intervals and check all screws and nuts are well tightened.
- Never service or store the machine in the vicinity of open flames.
- When cleaning, servicing and storing the machine, always attach the cutter blade protection.
Maintenance after each Operation
ATTENTION! Before cleaning, inspecting or maintaining the motor unit, make sure that the engine has stopped and is cooled down. The engine will heat up during operation. Do not touch the exhaust system. There is risk of burns! Before working on the machine (transport, mounting, dismounting, cleaning and servicing) and if not in use, remove the spark plug cap or disconnect the gear shaft from the motor unit!
Declaration
Toolsave
Unit C, Manders Ind Est.
Old Heath Rd,
Wolverhampton
WV1 2RP
Tel: 01902450470
Declares that the Hedge Trimmer GHT26C
Is in compliance with the regulations including in the directives:2006/95/EC
EC DECLARATION OF COFORMITY
