CyberSense XPP01-E-1433-00 Medical Sensor User Manual
XPP01 ID
Part number

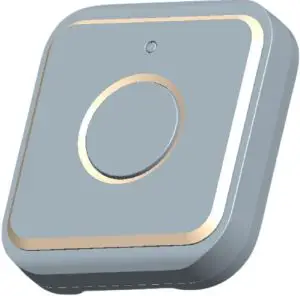

Medical Sensor, White (XPP01-E-1433-00)
Features
- The Sybersense Medical is a safe and reliable way to ensure you have help at the press of a button.
- Emergencies are usually a surprise, and being near your panel or phone to call for help is not a guarantee.
- The Sybersense Medical comes with a “Heartbeat” LED that blinks every minute to assure user. This fully sealed water resistant pendant has a typical battery life of 4-5years.
- Button Function: Press=Fault, Release=Restore
- Supervisory Signals: sent every hour.
- Transmitter frequency: 433.95MHz
Trigger your system
- Press the red button down in an emergency. This pendant can be worn on the wrist or around the neck
- The heartbeat
LED blinks every 60 seconds. The unit will send a low battery signal to notify user.
Specifications
Items | Description |
Wireless signal range | 290 meters (Open Air with Sybersense Security Panel) |
| Transmitter frequency | 433.95 MHz |
Compatibility | Sybersense Panel |
| Encrypted | Yes |
Button | 1 Button ‘Emergency functions |
| LED Indications | 1 LED (Red color) |
Dimensions | 42.6 x 38.6 x 11.6(mm) |
| Operating Temperature | 0 °C to 50 |
Maximum Humidity | 85% non-condensing relative humidity |
| Water Resistance | IP67 |
Replacement Battery | CR2032 x1 (Included). 3.0V Coin cell Lithium battery |
| Nominal Battery Life | 5 years |
| Certifications | FCC/IC |
FCC compliance
FCC ID: 2AVDCXPP01-E-1433
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
- this device may not cause harmful interference, and
- this device must accept any interference received, including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Warning: changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co- located or operating in conjunction with any other antenna or transmitter.
