Rotronic RMS-TCD-S-001 Digital temperature probe Instruction Manual
1 GENERAL DESCRIPTION

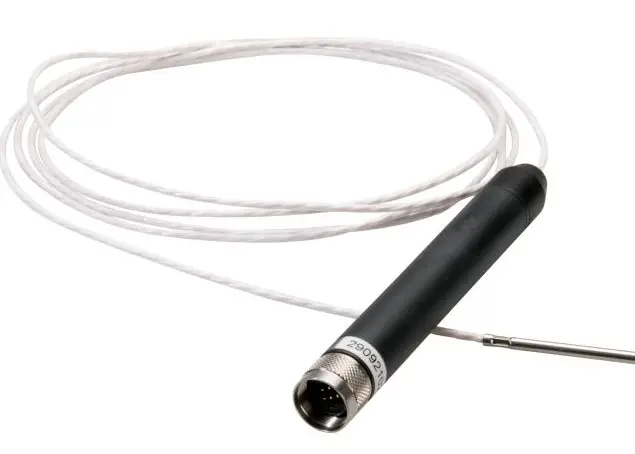

Your Rotronic RMS-TCD-S digital temperature probe is a leading-edge product that meets all established standards. It will work perfectly for years if you follow the assembly and operating guidelines below.
2 CONNECTION
Plug the RMS-TCD-S on the mating connector of the transmitter or connection cable. Make sure that the catches are aligned correctly. Tighten the knurled nut by hand.
Only properly assembled and fixed connection assures the IP protection rating.
3 MOUNTING

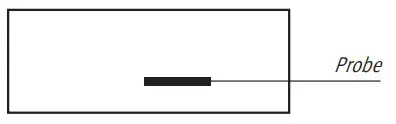

The probe should be completely immersed in the climate that is to be measured. For regulated applications, a temperature mapping may be required to define the perfect location for the probe to be installed.
4 ADJUSTEMENT / CALIBRATION
The probes are adjusted in the factory before delivery. We recommend, depending on the application, a calibration after 1 year of use. We provide calibration and adjustment services or you can do this yourselves on-site with a temperature generator such as our humidity and temperature generator HG2-S. Further information regarding calibration and adjustment can be obtained at Processsensing.com, Rotronic.com or by
contacting us or one of our representatives.
5 TECHNICAL DATA
| Order code | RMS-TCD-S-001 |
| Compatibility | RMS-LOG-L, RMS-LOG-868, RMS-LOG-915, RMS-LOG-L-D |
| Measurement range | -190…200°C |
| Accuracy | ±0,25 °C bei -50…85 °C |
| Long term stability | ±0.5 °C/year |
| T63 | 90 s |
| Electronics details | |
| Temperature range | -40…85 °C |
| Relative humidity range | 0…100 %rh |
| Housing details | |
| Material | Polycarbonate |
| Housing potting | Yes |
| Diameter | Ø15 mm |
| Length | 110 mm |
| IP Rating | IP65 |
| Connector | Standard Rotronic 7-pin connector |
| Sensor details | |
| Temperature sensor | 4 wire PT100 1/3 DIN (DIN EN 60751) |
| Material | Stainless steel – austenitic – 1.4571 (316Ti) bar |
| Sensor potting | Yes |
| Diameter | Ø3 mm |
| Length | 50 mm |
| IP Rating | IP68 |
