10l0l Y149 Steering Wheel Mounting Adapter Instruction Manual

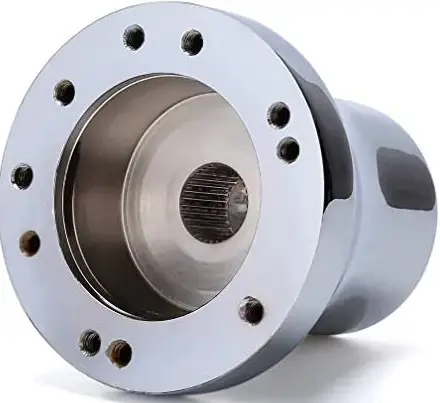

10L0L Y149 Steering Wheel Mounting Adapter

We are striving to build an reliable brand of golf carts parts and accessories. Hope this manual can assist you to easier install. For more technical support, please reach us via

• Website: www.10l0l.com
• Email: [email protected]
• Facebook: zhong zaiyang
• Youtube: 10L0L

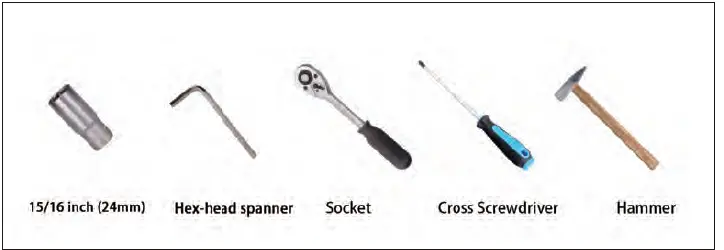

Installation Tools

Installation Steps

1. Park the vehicle on level ground.
2. Turn the key to “OFF” position and remove it from the switch.
3. Make sure the parking brake is set.

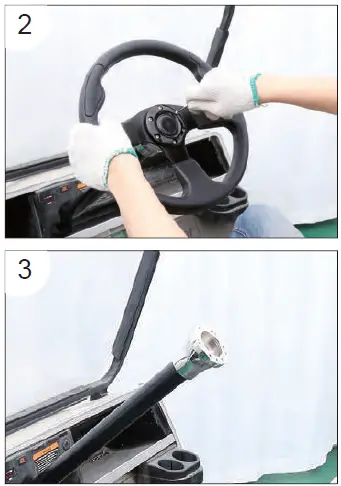

4. Remove the 6 screws with the hex-head spanner. See figure 2
5. Remove the steering wheel. See figure 3

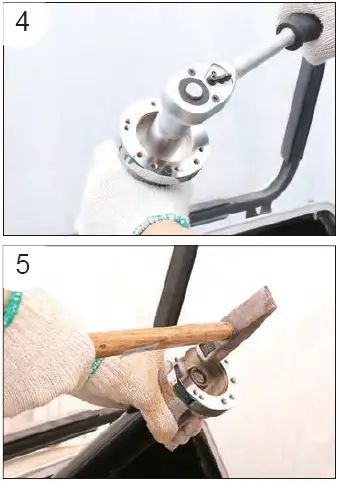

6. Remove the screw on the bar with a 24mm(7/8 inch) socket. See figure 4
7. Use a hammer to gently loosen the bar so that the mounting adapter can be removed smoothly. See figure 5

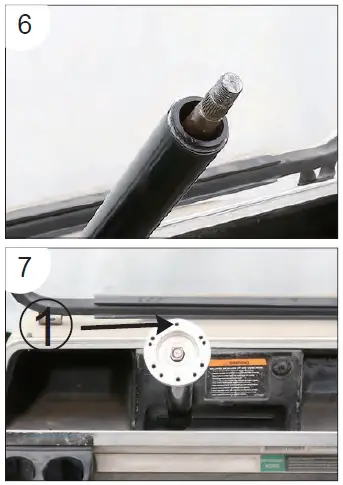

8. Remove the steering wheel mounting adapter. See figure 6
9. Install the mounting adapter. Adjust the steering wheel mounting adapter to keep it in straight direction(Make sure the hole ① is located exactly right ahead. ) See figure 7

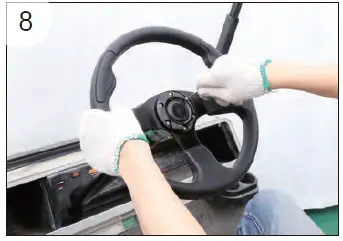

10. Put the steering wheel on the mounting adapter,then install the 6 screws with the hex-head spanner. See figure 8

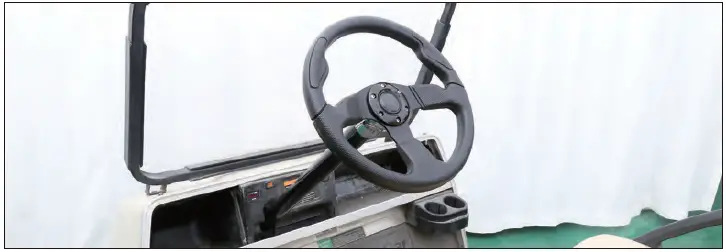

This completes the installation.
