Club Car DS Steering Joint
Installation Instruction
We are striving to build a reliable brand of golf carts parts and accessories. Hope this manual can assist you to easier install. For more technical support, please reach us via
Website: www.10l0l.com
Email: [email protected]
Facebook : zhong zaiyang
Youtube: 10L0L
（See figure 1 ）

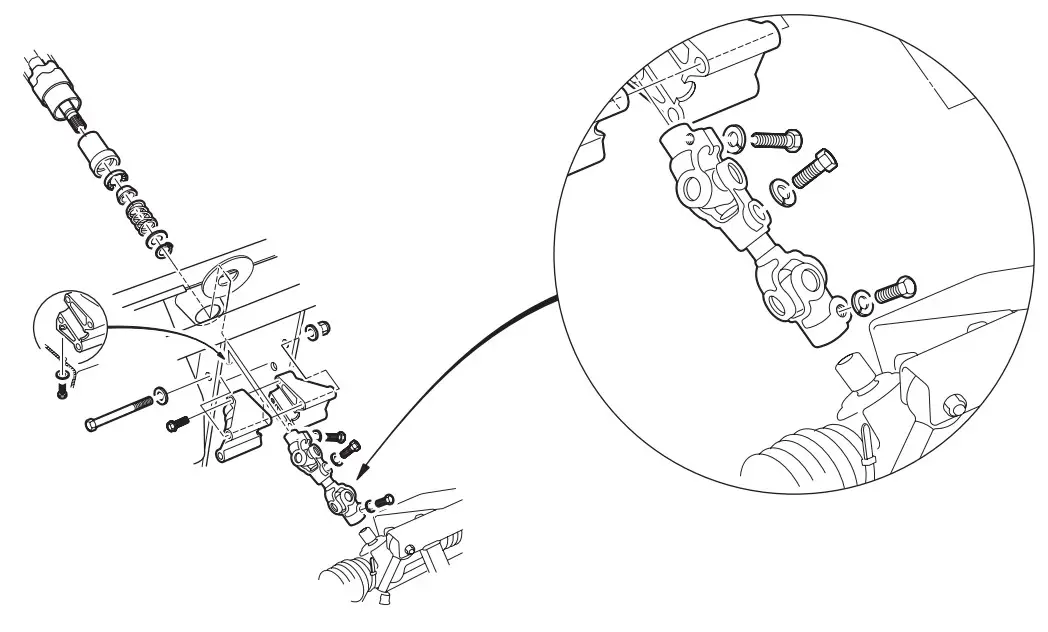

Assembly diagram

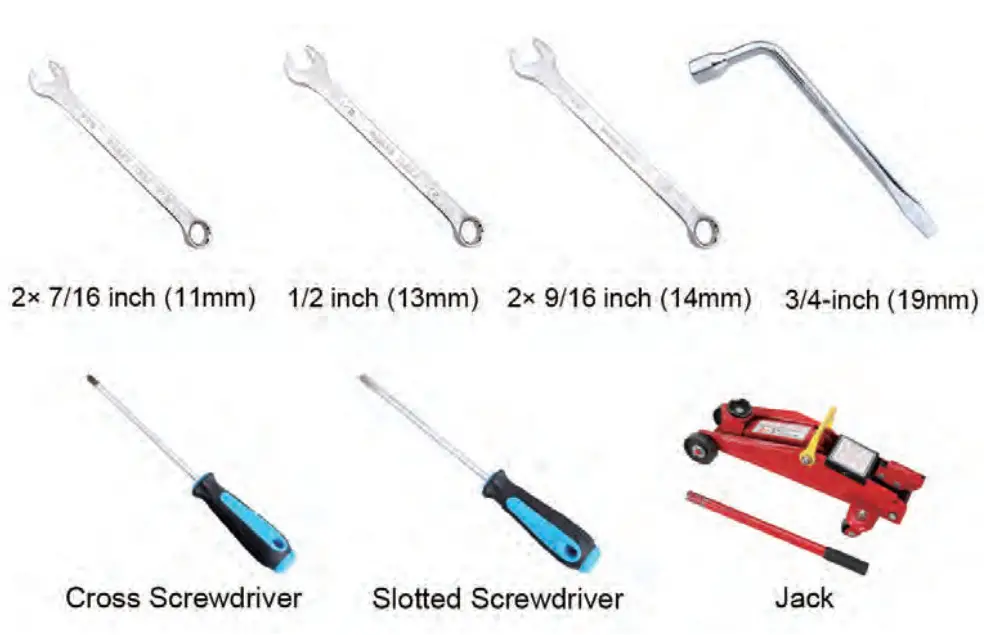

Installation Tools Qty
7/16-inch (11mm) Spanner……………….2
1/2-inch (13mm) Spanner…………………1
9/16-inch (14mm) Spanner……………….2
3/4-inch (19mm) Socket……………………1
Slotted Screwdriver………………………….1
Jack………………………………………………1
Cross Screwdriver……………………………1
Installation Tools
Installation Steps
- Park the vehicle on level ground.
- Turn the key to “OFF” position and remove it from the switch.
- Make sure the parking brake is set.

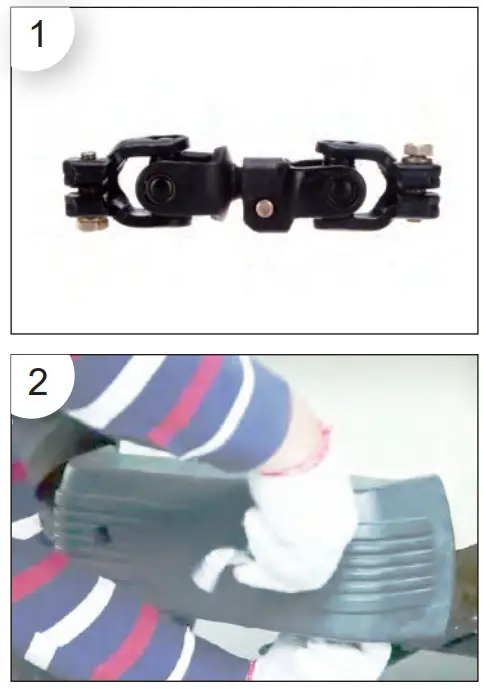

- Remove the push-type blind rivet of the front body with the slotted screwdriver, and remove the front body.
（See figure 2 ）

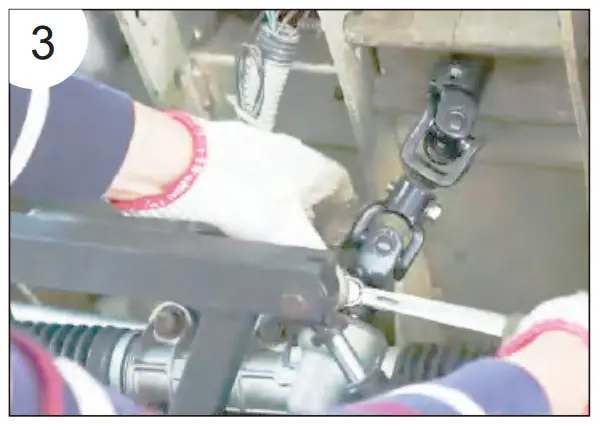

- Remove the screws of the steering joint with the 1/2-inch (13mm) spanner.
（See figure 3 ）

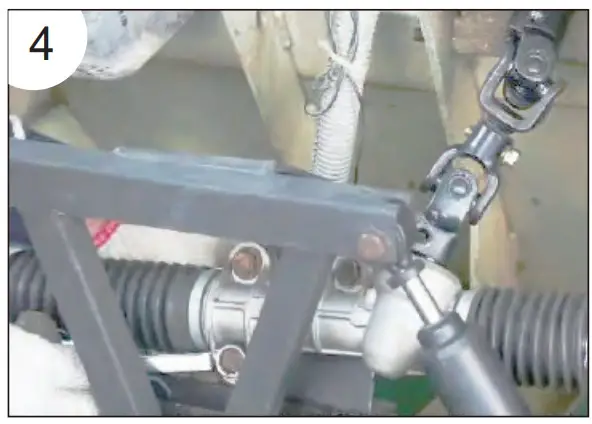

- Remove 3 screws of the steering gearbox assembly with the 9/16-inch (14mm) spanner.
（See figure 4 ）
- Remove the steering joint.
（See figure 5 ）

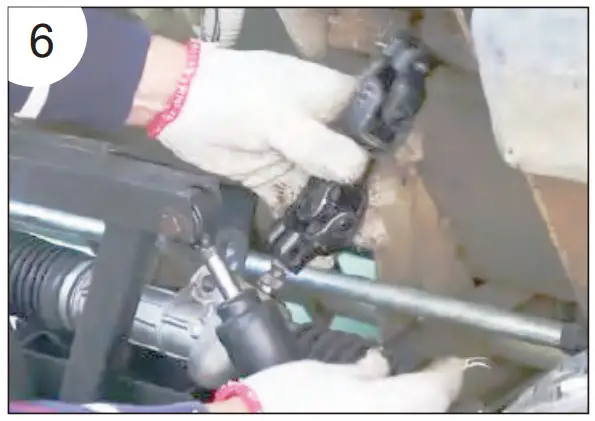

- Install a new steering joint.
（ See figure 6 ）

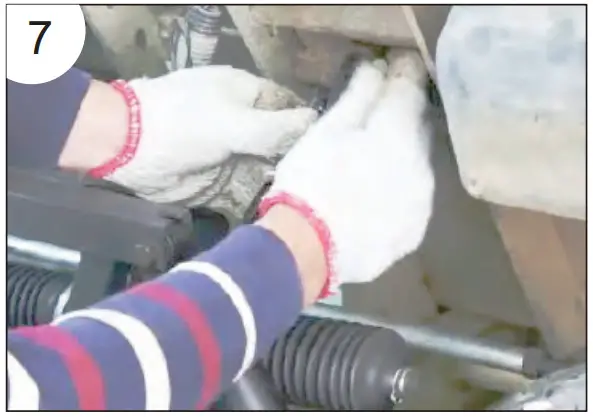

- Install the screws on both ends of the steering joint.
（See figure 7 ）

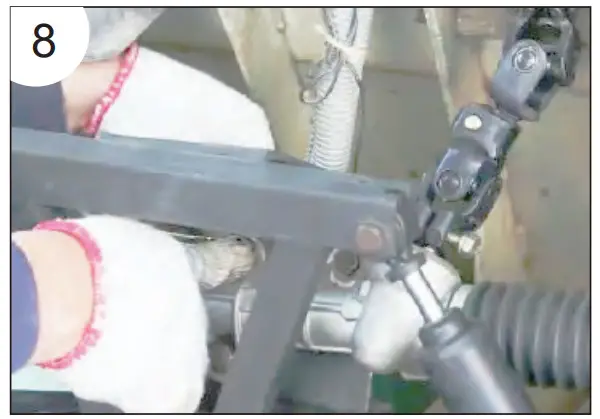

- Install 3 screws of the steering gearbox assembly, and tighten them with the 9/16-inch (14mm) spanner.
（See figure 8 ）

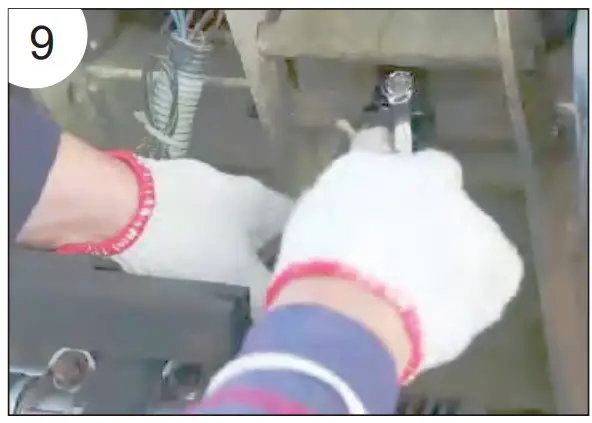

- Tighten the screws on both ends of the steering joint with the 1/2-inch (13mm) spanner.
（See figure 9 ）

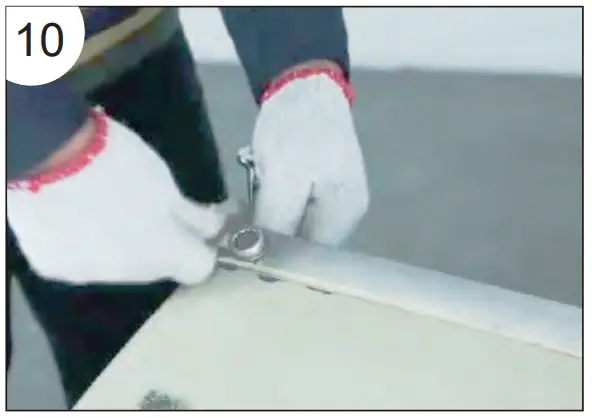

Install the front body and the push-type blind rivet of the front body.
（See figure 10 ）
This all completes your installation.
