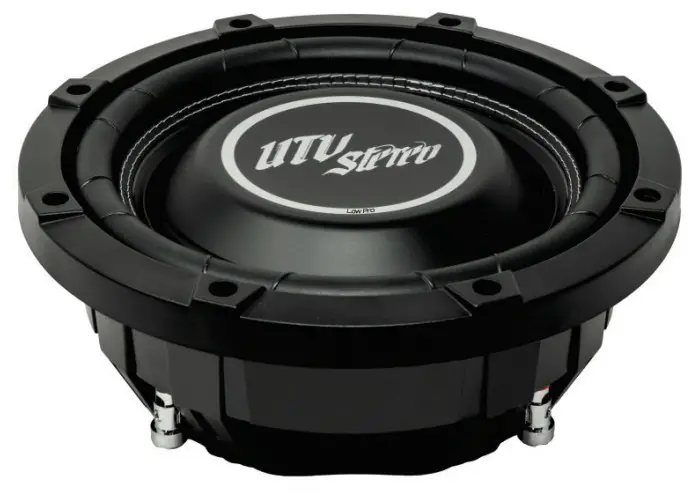

UTVS-10LP 10 Inch Low Profile Subwoofer
User Manual
UTVS-F 1OLP

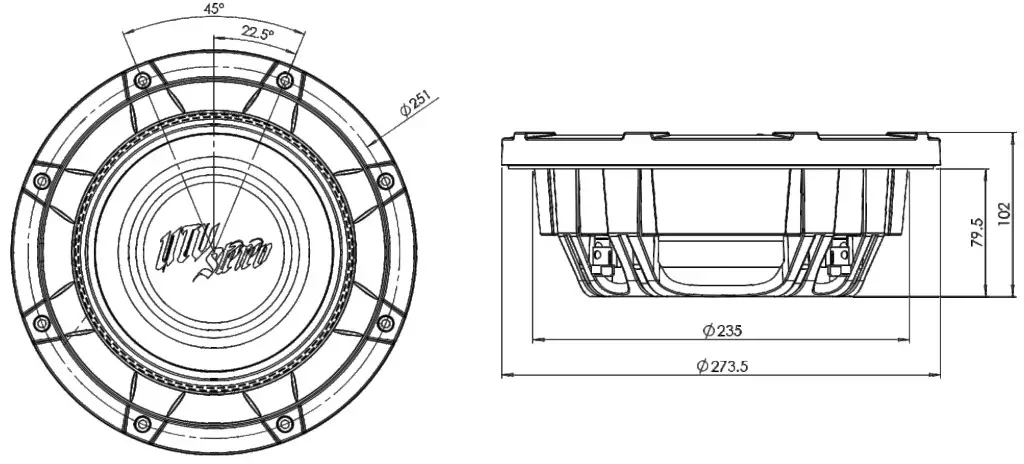

DIMENSIONS
SPECIFICATIONS
Speaker Size: 10 inch low profile subwoofer
Amplifier Power Handling Minimum (RMS): 250W
Amplifier Power Handling Maximum (RMS): GOOW
System Efficiency: 87dB+3dB @1W/1m
Mounting Diameter: 235mm
Mounting Depth: 79.5mm
Options: Dual 1 ohm or Dual 2 ohm
Sealed Enclosure Air Space: Minimum .4 cu. ft. Maximum 1.3 cu. ft.
Ported Enclosure Air Space: Minimum 1.3 cu. ft. Maximum 1.8 cu. ft.
INSTRUCTIONS
Step 1: Pre-drill desired subwoofer enclosure.
Step 2: Connect wires per ohm load wire diagram.
Step 3: Place the subwoofer into the enclosure and mount subwoofer using provided hardware. (For sealed enclosures, make sure enclosure is air tight)
Step 4: Tune stereo system.

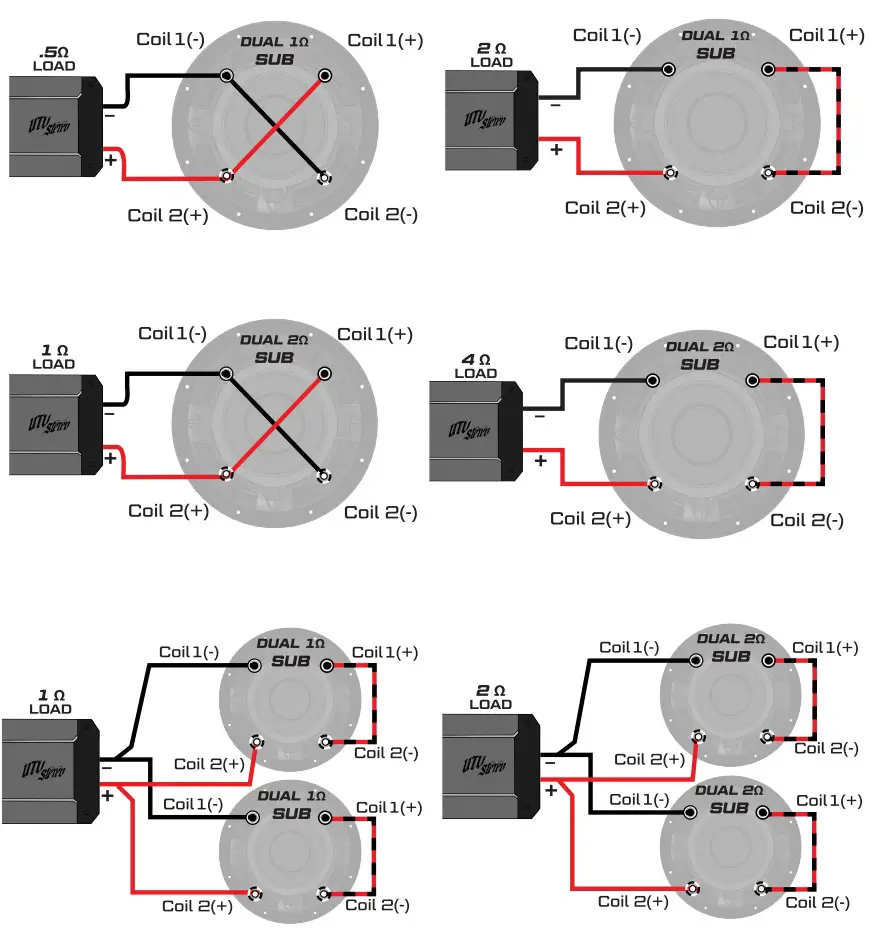

WIRE DIAGRAM (PER OHM LOAD)
CONTACT 480-616-2299
[email protected]
FLEX SERIES
Manual for Models:
UTVS-F1OLP1 AND UTVS-F1OLP2
