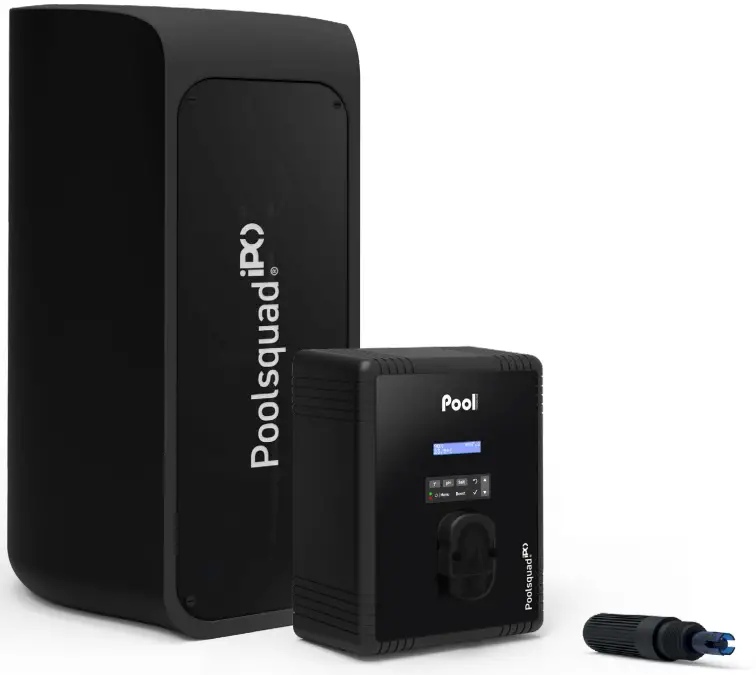

In-situ chlorine generator by saltwater chlorination
+ pH regulator
New 2023
Patented technology
Instructions
BENEFITS
- In-situ technology: chlorine production without adding salt to the pool
- Direct injection of the sodium hypochlorite solution into the pipe
- Easy to install and maintain: factory pre-wired reactor ready to connect to the hydraulic system
- Single unit reactor: salt tank, softened water tank, brine tank, production cell
- Economical salt consumption: only one salt refill per season
- Soft and odourless water
- Environmentally friendly solution
- Ideal for corrosion-sensitive pools
- Salt-free wastewater
- 100% automatic and easy to use
- Bluetooth remote control with e-Pool® app
FEATURES
- Smart Power: current monitoring ensuring stable production
- Intelligent, predictive and proportional pH control in acid (pH-) or basic (pH+) mode according to injection history
- Self-cleaning cell with adjustable polarity inversion
- Low mode to reduce chlorine production with cover or bubble cover instalLED
- Mode Boost: 100% superchlorination for up to 24 hours to overcome an increased need of disincfectant
- Automatic winterization and restart from 15°C
- Multilingual communication interface
- Safeties: lack of water, low salt, cell fault, unreached setpoint, pH setpoint overrun and overfeeding: cause of malfunction indicated by written message
- Display of water temperature and cell life
- Log of events
- Self-diagnosis programme for easy maintenance
| Model | Pool volume (m3) | Chlorine production (g/h) | Reference |
| Poolsquad iPO 8 | 40 | 8 | EPHI23NPSP-G4NM08 |
| Poolsquad iPO 12 | 60 | 12 | EPHI23NPSP-G4NM12 |
| Poolsquad iPO 16 | 80 | 16 | EPHI23NPSP-G4NX16 |
| Poolsquad iPO 23 | 120 | 23 | EPHI23NPSP-G4NX23 |
| Poolsquad iPO 30 | 160 | 30 | EPHI23NPSP-G4NX30 |
| Poolsquad iPO 45 | 200 | 45 | EPHI23NPSP-G4NZ45 |
| Softener | KIT23ADOU4L |

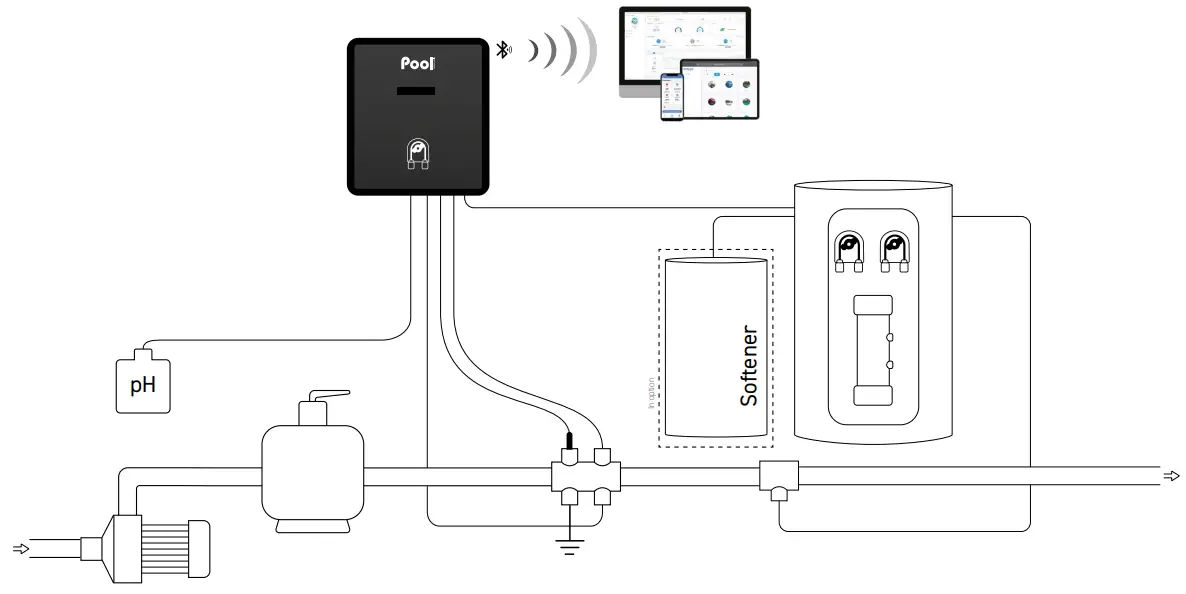

INSTALLATION DIAGRAM
Technical specifications
| Display | LCD 2 lines |
| pH pump flow (l/h) | 1,8 |
| Corrective solution | pH- or pH+ |
| pH pump type | peristaltic |
| pH regulation type | predictive |
| Setpoint adjustment | 6,8 to 7,6 |
| pH probe calibration | 2 points pH 7 and pH 10 |
| pH probe | Black |
| Cell technology | mono or mixte |
| Number of cell plates | 3 to 9 |
| Reverse polarity adjustment | off – 12h – 24h |
| Cell installation | in line |
| Cell orientation | vertical |
| Maximum pressure in the cell (bar) | 2 |
| Reactor pump flow (l/h) | 10 |
| Salt tank volume (l) | 70 |
| Reactor dimensions (mm) | W 450 x H 785 x D 490 |
| Control panel size (mm) | W 267 x H 363 x D 166 |
| Reactor weight (kg) | 18 |
CONTENT
- Control box
- Reactor
- pH Black probe
- Calibration solution pH 7 & pH 10
- Probe holder, injection connector
- Accessories holder with plugs
- Temperature sensor
- Grounding electrode
- Salt and water hardness analysis kit
- Power cable (2 m)
- Collar Ø 63 mm x2
- Wall support (with screws)
- User manual
OPTIONS
- Independent flow switch
- Empty pH can sensor
- e-Pool® Connect connected Pool kit
- Softener
WARRANTIES
2 years
Box + Reactor
2 +2* years
Cell
*See a retailer
3 years
Probe
pH Black years
