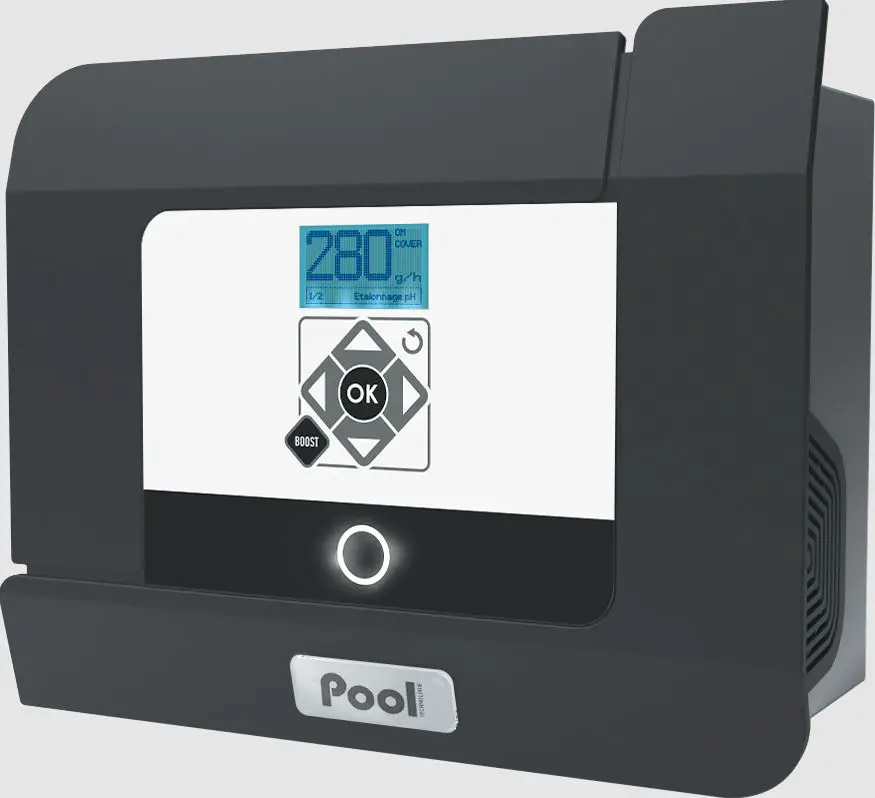

POOL TECHNOLOGIE Pro Salt Inline Chlorine Generator
Inline Chlorine Generator by Saltwater Chlorination for Public Pools
Inline Chlorine Generator by Saltwater Chlorination is a tailor-made solution for public pools. The chlorine produced by saltwater chlorination is a powerful oxidizing disinfectant that eliminates pathogenic micro-organisms such as bacteria, viruses, and algae with great efficiency. It has strong disinfecting power and eliminates almost all chloramines, which are harmful to the health of bathers and cause unpleasant odors.
The product has numerous features that make it easy to use and maintain. It is environmentally friendly and takes up little space, making it a turn-key solution that is easy to install. The product is available in various models, with chlorine production ranging from 50 to 560 g/h. The product has a transparent cell that allows for easy checking of the state of the electrodes.
Usage Instructions
Before using the Inline Chlorine Generator, ensure that the pool has the correct water level and that the chemicals are balanced. Follow these steps to use the product:
- Ensure that the product is correctly installed and connected to a power source.
- Set the chlorine production level according to the needs of your pool.
- Choose any additional control options you require, such as pH regulation, ORP control or amperometric control.
- The generator will produce chlorine automatically, which will disinfect the pool water.
- The product is equipped with Smart Reverse technology which ensures self-cleaning of the cell according to the water hardness without time or parameter settings.
- If required, replace the depleted electrodes in the system.
It is recommended to check the state of the electrodes regularly and to adjust the chlorine production level as required. The product has a long lifespan, thanks to the high-quality electrode coating, ensuring up to 10,000 hours of operation under normal operating conditions.
It is important to keep the product clean and to ensure that it is regularly maintained. The product will alert you if there are any issues such as a lack of water, salt or temperature, or if there is a flow or cover issue (if this option has been chosen).
It is recommended to consult the product manual for further information and troubleshooting advice.
A tailor-made solution by saltwater chlorination for public pools
Pro Salt® independently manages the disinfection of the pool by saltwater chlorination in all circumstances.
Principle: from very slightly salty water (7 times less than sea water), Pro Salt® instantly transforms salt into natural chlorine thanks to its titanium electrodes, (also called hypochlorous acid).
The active chlorine produced is a powerful oxidising disinfectant that eliminates pathogenic micro-organisms (bacteria, viruses, algae, etc) with great efficiency.
Once its disinfectant mission has been accomplished and under UV light, the salt automatically re-combines before being recycled back into chlorine.
Health and Respect for bathers
Strong disinfecting power, eliminating almost all chloramines, which are harmful to the health of bathers and cause unpleasant odours:
- No more eye irritation
- No more skin dryness
- No more chlorine odour
- No more deterioration of swimwear
Savings
- Significant reduction in costs related to transport, storage, and elimination of treatment products
- Low cost of use, salt is half the cost of packaged chlorine, storage in large quantities
- Drastic reduction in delivery times and constraints linked to chemical storage regulations
Easy maintenance, environmentaly friendly
- Eliminates all problems related to transport, storage and handling packaged chlorine: cartridge masks, risks of explosion, containment of the chlorine storage area
- Less dangerous for the people handling the products, the Pro Salt® solution is environmentally friendly
A turn-key solution that is easy to install and takes up little space
- Easy to install in any type of technical room thanks to the solution’s minimal space requirements
Inline chlorine generator by saltwater chlorination for public pools
A tailor-made solution
Pro Salt® is available in 3 compact and stylish sizes and offer a tailor-made solution according to the type of installation

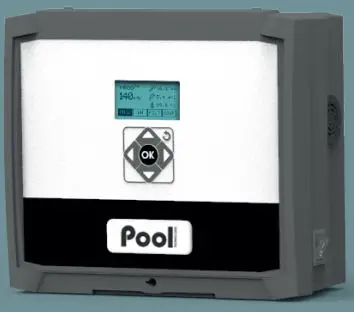

PS50 – PS70 – PS100 – PS140
Chlorine production from 50 to 140 g/h

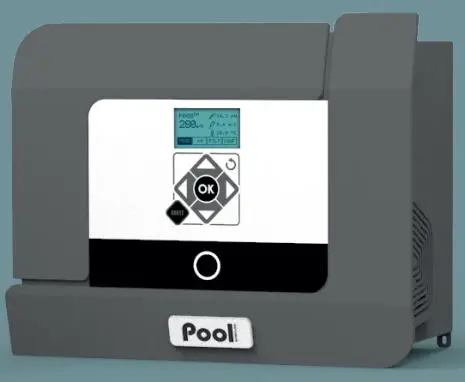

PS210 – PS280
Chlorine production from 210 to 280 g/h

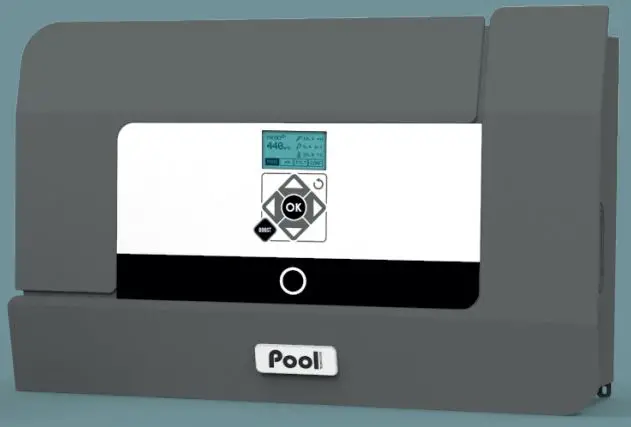

PS420 – PS560
Chlorine production from 420 to 560 g/h
Easy to use
- Intuitive navigation thanks to simple control buttons
- Convenient: LED status indicator for quick external readout (from PS 210):
- Green indicates correct operation of the device
- Red indicates a malfunction

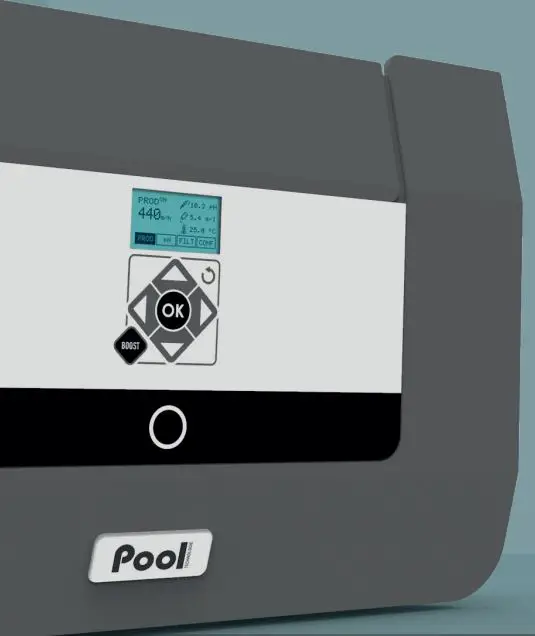

Intuitive interface
- Large, backlit display
Navigation menu available in 6 languages (FR, EN, IT, ES, PT, DE)
Numerous features
- Choice of language
- Boost
- Salt and temperature adjustment
- Clock
- Event history
Options
- pH and chlorine setpoints
- pH and ORP probe calibration
- pH control
- Manual pH injection
Reliable electronics
- Powerful chlorine production: up to 560 g/h
- Cell independence: continuity of disinfection is ensured in the event of a module or cell failure
- Safeguards: Lack of water / No Flow / Low Salt level / Low water temperature / Scaled or worn cell / Freezing fault
Powerful production cells
for intensive use
Smart Reverse (patented)
Self cleaning cell according to the water hardness without time or parameter settings.
Long Lifespan
The high-quality electrode coating ensures a 10,000 hours lifespan under normal operating conditions. Easy maintenance: only depleted electrodes need to be replaced in the system. Transparent cell to easily check the state of the electrodes.
Options
for an evolving device
Several control options are available to make the unit even more efficient
pH Blue probe
ORP Gold probe
Salt chlorine probe
pH regulation
Proportional to the volume of the pool according to a patented principle. More accurate, the diffusion of the corrective agent takes into account the inertia of the pool and optimises the consumption of chemicals.
ORP control
Controls the production of oxidants to avoid the risk of over-chlorination and protects the pool equipment (liners, shutters, etc.).
Amperometric control
Analysis and control using a chlorine probe developed specifically for saltwater.

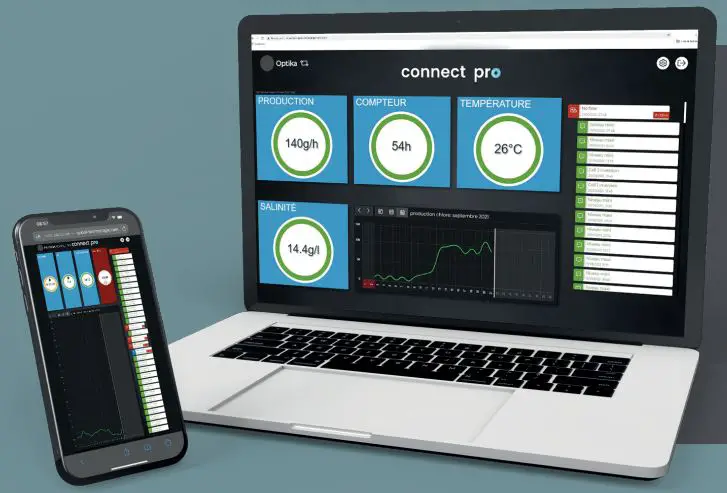

CONNECT PRO OPTION
The Connect Pro web platform allows the operator to :
- Remotely view parameters of his unit
- Be notified of alarms triggered
- Consult event log

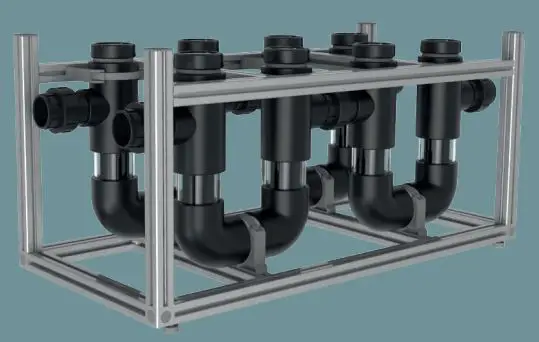

OPTION: Pre-assembled cell frames for easy installation
Modular cell frame for easy installation and maintenance: assembled in factory, cells are ready to use
Tailor-made number of cells: the modular frame allows the number of cells to be adapted according to the needs of the installation (from 1 to 8 cells)

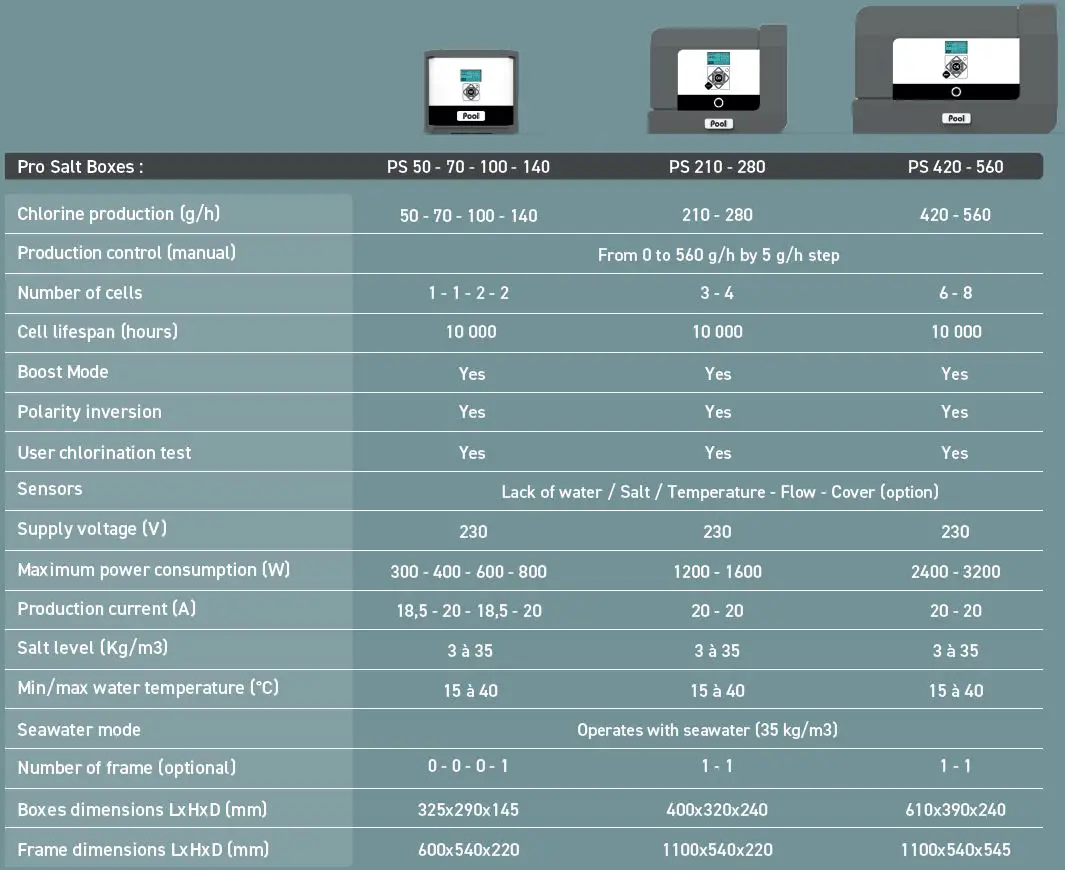

Technical specifications

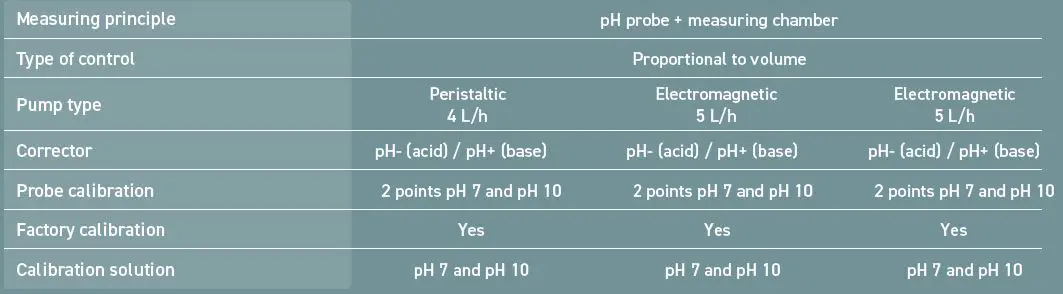

OPTION : pH regulation

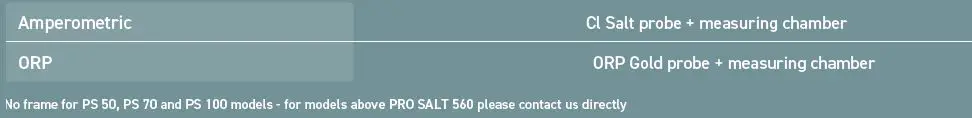

OPTION : chlorine production control

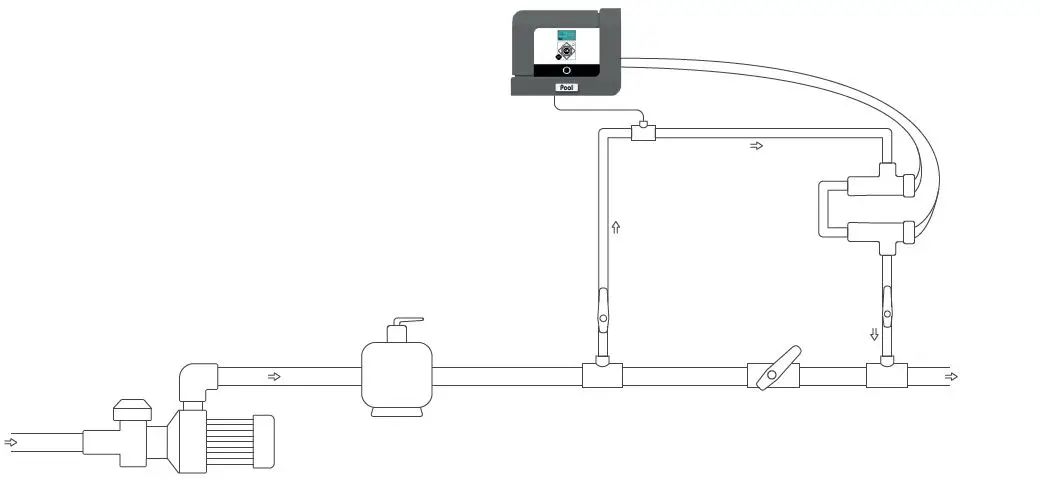

Operation diagram
Warranties
| Electronic box | Warranties | 2 years |
| Cell(s) (up to 10,000 operating hours) | 2 years | |
| pH probe | 1 year | |
| ORP probe | 1 year | |
| Chlorine probe | 1 year |
