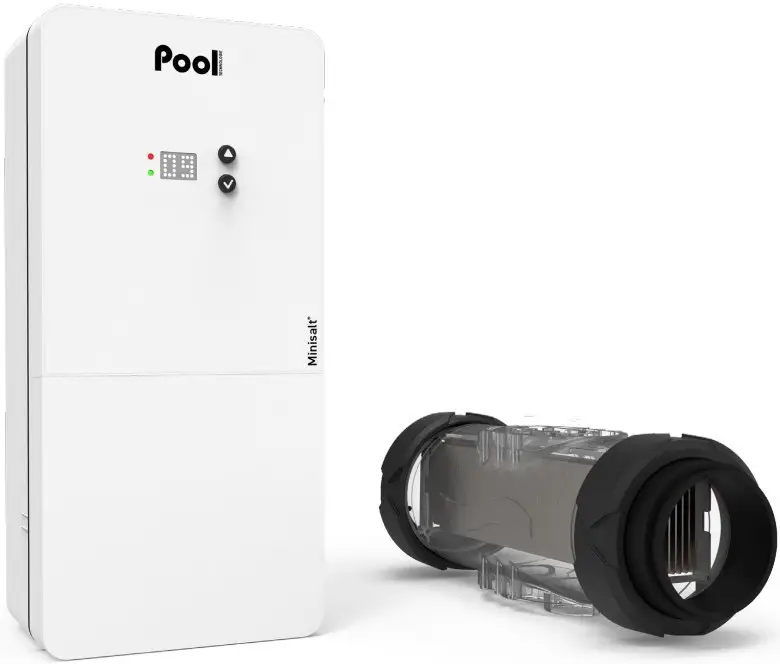

POOL TECHNOLOGIE Minisalt Saltwater Chlorinator User Manual
BENEFITS
- Intuitive navigation on LED display
- Light warning alarm
- High quality self cleaning cell
- Low Salt / Normal Salt mode (depending on model)
- Easy installation and assembly
FEATURES
- Smart Power: current monitoring ensuring stable production
- Self-cleaning cell with memory polarity inversion, adjustable according to water hardness
- Operate at any salt level from 2,5 g/l (NS) and 1,5 g/l (LS) without high limit
- Boost mode: 100% superchlorination for up to 24 hours to overcome an increased need of disinfectant
- Low mode to reduce chlorine production, when cover closed or bubbles cover installed
- Safeties: lack of water, low salt, cell fault
| Model | Pool volume*(me) | Chlorineproduction (g/h), | Reference |
| Minisalt 4 | 20 | 4 | ELLY2ONPSB-GONM04 |
| Minisalt 8 | 40 | 8 | ELLY2ONPSB-GONM08 |
| Minisalt 12 | 60 | 12 | ELLY2ONPSB-G0NM12 |
| Minisalt 16 | NS 80 / LS 60 | NS 16 / LS 12 | ELLY2ONPSB-GOHX16 |
| Minisalt 23 | NS 120 / LS 80 | NS 23 / LS 16 | ELLY20NPSB-GOHX23 |
| Minisalt 30 | NS 160 / LS 120 | NS 30 / LS 23 | ELLY20NPSB-GOHX30 |
*In hot climates, reduce the volume by 20% – NS : Normal Salt (5 g/l) / LS : Low Salt (1,5 g/l)
Technical specifications
| Display | LED display |
| Cell installation | in line |
| Cell orientation | horizontal or vertical |
| Cell length (mm) | 225 |
| Maximum pressure in the cell (bar) | 2 |
| Maximum flow in the cell (m3) | 22 or By-pass |
| Maximum water temperature (°C) | 40 |
| Control panel size (mm) | W 140 x H 300 x D 97 |

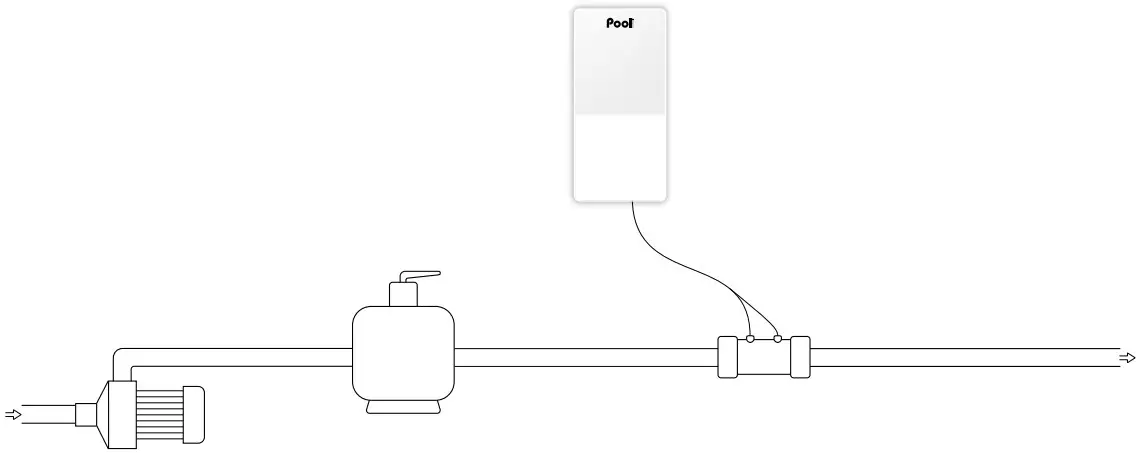

INSTALLATION DIAGRAM
CONTENT
- Control box
- Chlorination cell
- Cell cable (2 m)
- Power cable (2 m)
- Collar Ø 63 mm x2
- Reducer Ø 63/50 mm x2
- Wall support (with screws)
- User manual
OPTIONS
- Independent flow switch
- Grounding kit
- Collar Ø 50 mm x2
WARRANTIES
* see a retailer
