Pool Minisalt UV Saltwater Chlorinator UV Treatment Owner’s Manual
Benefits
- Saltwater chlorinator specially designed for UV system
- Only works with an installed UV treatment system
- Exemption from the use of persistent chemicals (hydrogen peroxide, etc.)
- Ensures the persistence of water disinfection
- Disinfected and disinfecting water without adding chemicals
- Soft and odorless bathing water
- Environmentally friendly disinfection solution
- 100% automatic and easy to use device
- Non-polluting waste water
- Highly reduced maintenance costs
- Easy installation and assembly
Features
- Smart Power: current monitoring ensuring stable production
- Ultra Low Salt® technology: operate at any salt level higher than 0,5 g/l
- Self cleaning cell by memory adjustable polarity inversion according to water hardness
- Boost mode: 100% superchlorination for up to 24 hours overcome an increased need of disinfectant
- Low mode to reduce chlorine production, when cover closed or bubbles cover installed
- Safeties: lack of water, low salt and cell fault
| Model | Pool volume (m3 ) | Reference |
| Minisalt UV NPS 50 | 50 | ELLY21NPSB-G0VX15 |
| Minisalt UV NPS 100 | 100 | ELLY21NPSB-G0VX25 |
| Minisalt UV NPS 150 | 150 | ELLY21NPSB-G0VX35 |
Technical specifications
| Display | led display |
| Cell installation | in T |
| Cell orientation | horizontal or vertical |
| Cell length (mm | 291 |
| Maximum pressure in the cell (bar | 2 |
| Maximum flow in the cell (m3 ) | 22 or By-pass |
| Maximum water temperature (°C) | 40 |
| Control panel size (mm) | W 266 x H 363 x D 167 |

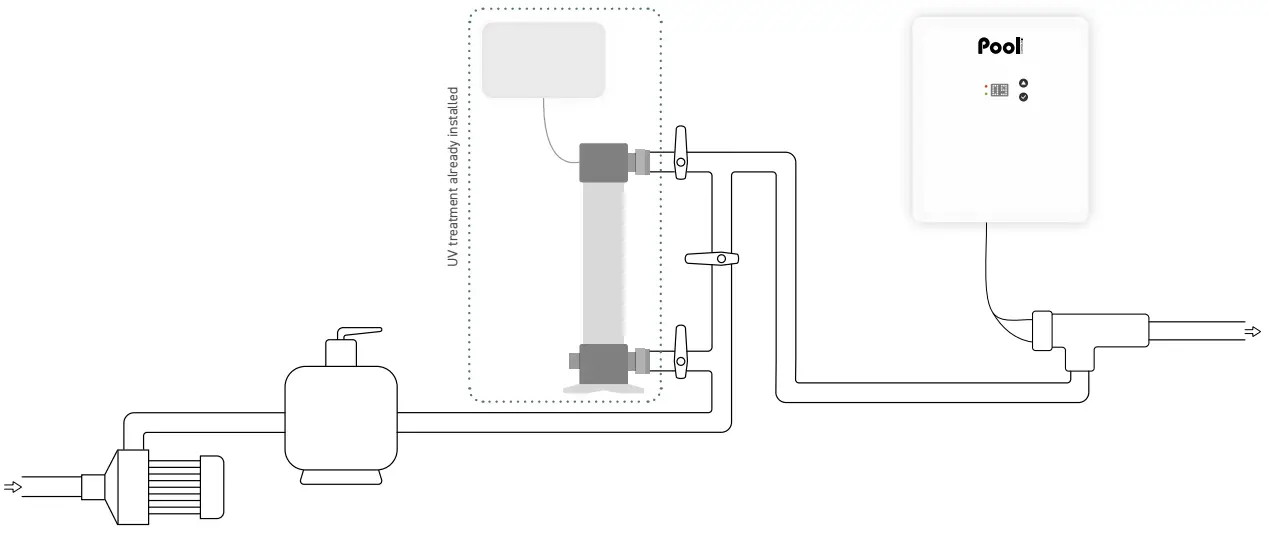

Installation diagram
Content
- Control box
- T chlorination cell
- Cell cable (2 m)
- Power cable (2 m)
- Collar diam 63 mm x2
- Reducer 63/50 mm x2
- Wall support (with screws)
- User manual
Options
- Independent flow switch
- Pool Terre grounding kit
- 2 years warranty extension on cell
- Collar diameter 50 mm x2
Warranties
- 2 Years: Box Warranty
- 2 Years: Cell Warranty
