Spa and Hot Tub Salt Water Chlorine Generators
User Manual
Spa and Hot Tub Salt Water Chlorine Generators
Saltwater purification systems produce small amounts of pure sanitizer derived from natural salt, just enough to purify the water. Salt systems are a desirable alternative to packaged bromine or chlorine and can provide naturally clean, crystal clear, and more pleasant water for bathers. The water actually feels better!
Spa Chlorinator Standard Features
Salt level indication: Low-Normal-High, Operates on a low salt concentration (1500-2000 PPM) 10 Adjustable power levels, no external timer required to set sanitizer production level Input supply voltage: 110 to 220 VAC, low 5.5 Vdc output voltage, 10’ power cord, 10’ cell cable Pure chlorination, up to 30 grams per day to accomodate any spa up to 1000 gallons

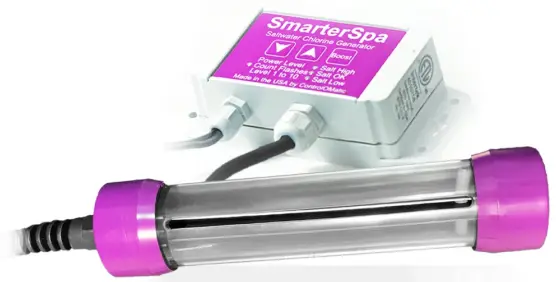

SmarterSpa
The SmarterSpa is the only system of it’s kind that knows when to turn itself on. Sanitizer production automatically starts when the sanitizer drops to a low level! Replaceable electrode, with sanitizer sensor External control box for ease of operation Boost mode for manual control Chlorine sensor integrated into the electrode

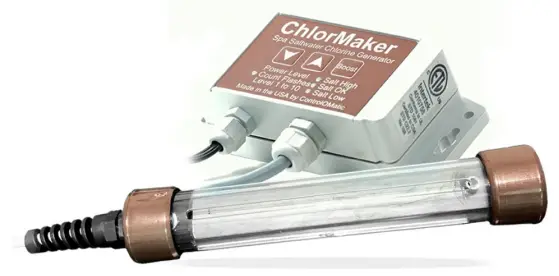

ChlorMaker
The ChlorMaker hangs over the side of the hot tub, into the water, and is very easy to install.
External control box for ease of operation Boost mode for increased chlorine production Easy-to-clean cell 3 Buttons and 4 lights for operation Operates on a 3 hour cycle
MegaChlor Pool and Swim Spa Chlorine Generator
ControlOMatic has taken it’s technological advances and developed a system for above ground pools, in-ground pools and swim spas. Salt level indication: Low-Normal-High, Operates on a low salt concentration (3000-4000 PPM) 10 Adjustable power levels, no external timer required to set sanitizer production level Input voltage: 110 to 220 VAC, low 12.5 Vdc output voltage, 10’ power cord, 15’ cell cable Pure chlorination, up to 110 grams (0.25 lbs) per day to accomodate up to 17,000 gallons Automatic cleaning – helps reduce calcium build-up

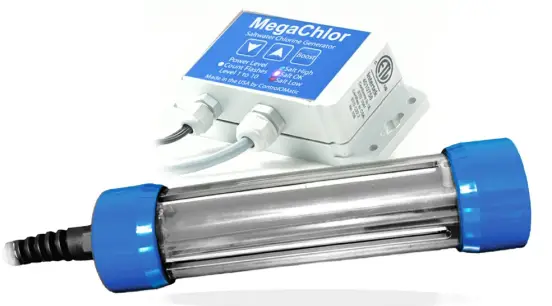

MegaChlor
The MegaChlor’s drape over cell simply hangs over the edge of the pool, into the water, and is very easy to install.
MegaChlor-CD
The CD option replaces the standard electrode with a chlorine detection electrode. The MegaChlor-CD will start a chlorine production cycle when the chlorine is low enough and it will be on based on the power level setting, then it will turn off and wait for the chlorine to drop before turning on again.
Ideal for swim spas and smaller pools Control box supports both electrode types, auto detection & standard Adjustable sanitizer threshold
ControlOMatic Saltwater Chlorine Generators
