SMART HOME LIGHTS
Fitting instructions
This product contains a light source of energy efficiency class <E>.
833386
230V / 50Hz~
1x LED-Board 24V DC / 27W
nicht wechselbar / not changeable

LED | 27 W3.250 lm |
![]() | 33 W 1.150 lm |
| LED-Board | |
t | 20.000 h |
Tx | 2.700-5.000 K |
| 15.000 x | |
| <0,5 s | |
| dimmable with rrc |

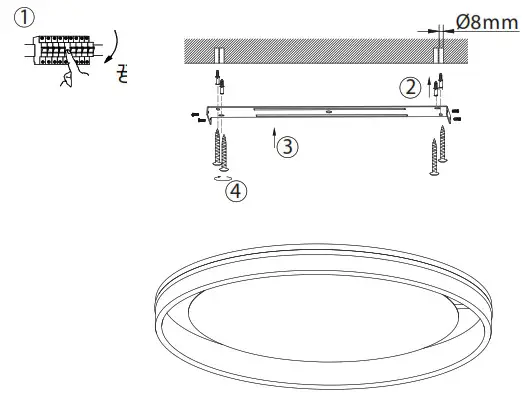

fitting
as ceiling light

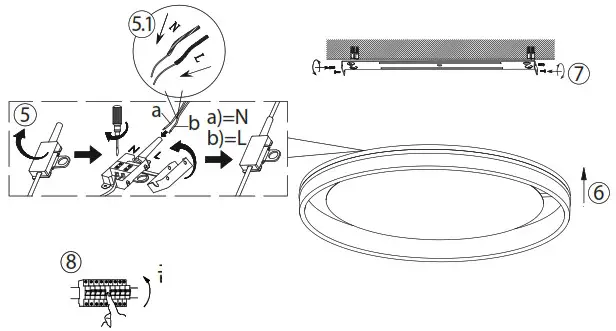

electrical connection
230 voltage / 50Hz – connechtion

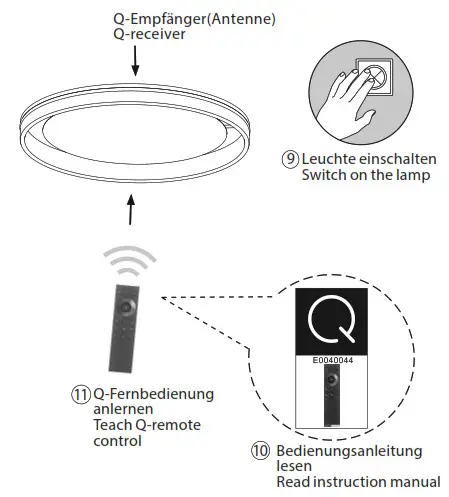

teach remote control
See Q-remote control manual

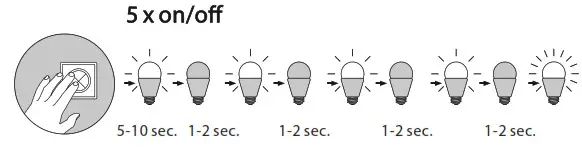

Reset
Reset the lamp, factory new

Paul Neuhaus
Paul Neuhaus GmbH Olakenweg 36 • 59457 Werl Germany
Telefon: +49 (0)2922-9721-0
Telefax: +49(0)2922-9721-9120
https://scm.paul-neuhaus./public/conformity/
