Fitting instructions
829074
230 / 50Hz-2x LED-Board 24V DC/ 12,5W/ not changeable
2,4 GHz .17 10 dBm
 | 12,5 W 1.260 lm |
 | 31,5 W 1.270 lm |
 | LED- Board |
| t | 25.000 h |
| Tk | 2.700-5.000 k |
 | 15.000 x |
 | < 1s |
 | dimmable with rrc |

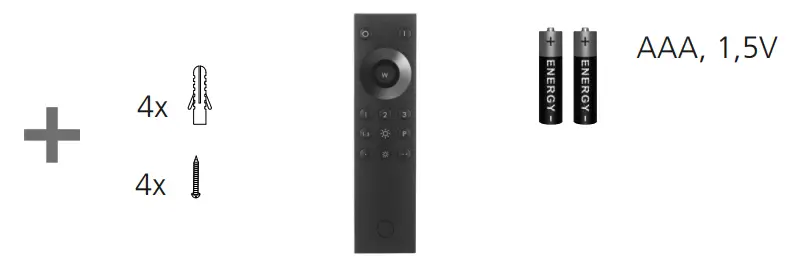

Incl. radio remote control

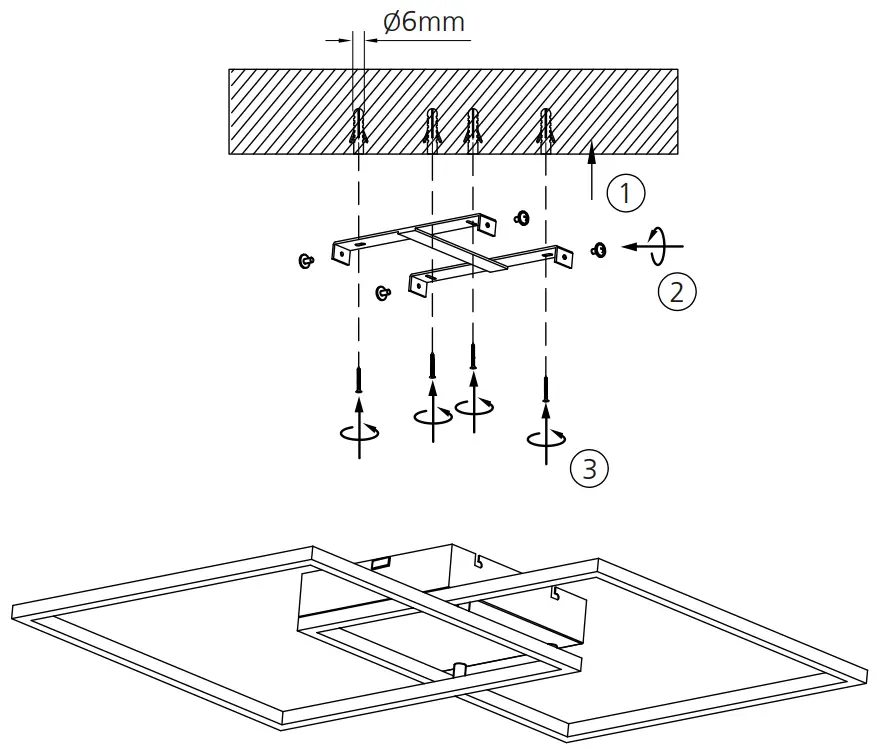

fitting
as ceiling lamp

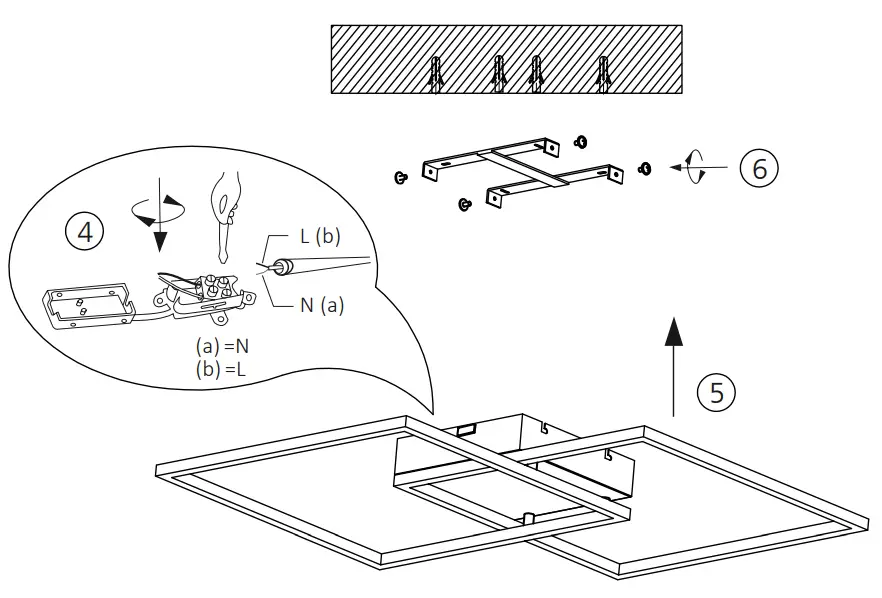

electrical connection
230 voltage/50 Hz connection

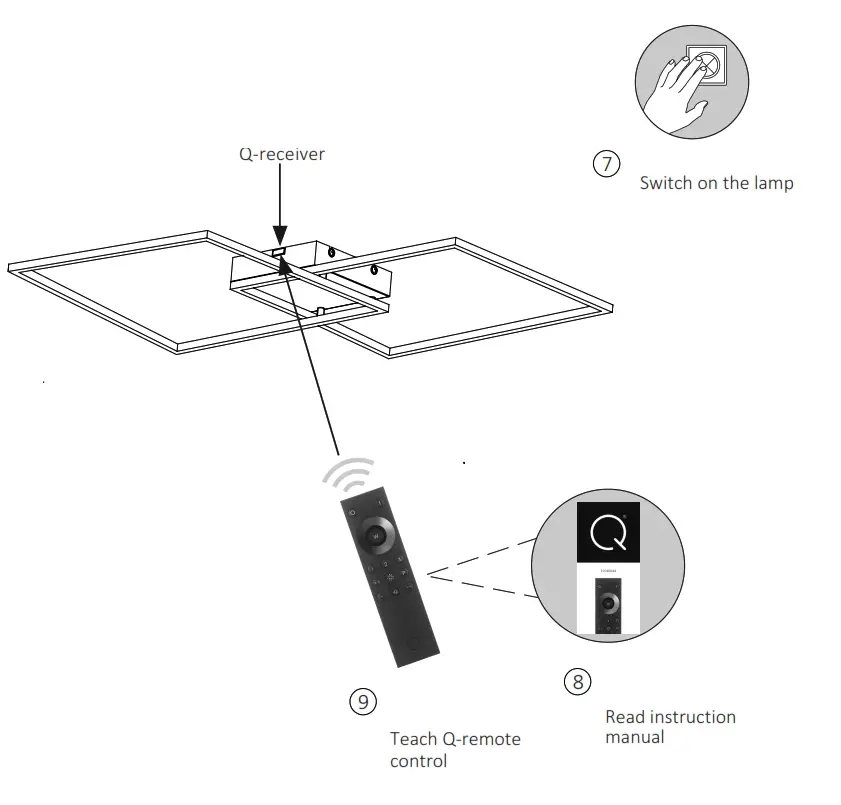

teach remote control
See Q-remote control manual
 |  |
| https://www.paul-neuhaus.de/cms-wAssets/img/Videos/Q/Q-Funktionsfilm_DE.mp4 | http://q.paul-neuhaus.de/ |

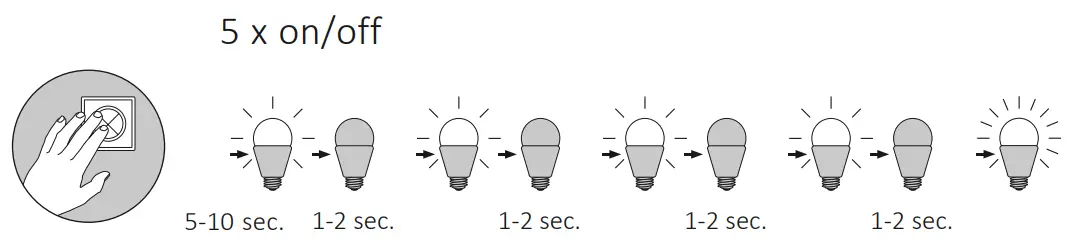

Reset
Reset the lamp, factory new
This device fulfils the fundamental requirements of Directive 2014/53/EU (Radio Equipment Directive) of the European Parliament and of the Council of the European Union dated 16.04.2014 on items of radio equipment. The full declaration of conformity can be accessed at the Internet address given below.
Paul Neuhaus GmbH
Olakenweg 36 • 59457 Werl Germany
Telefon: +49 (0)2922- 9721- 0
Telefax: +49 (0) 2922-9721-9120
E-mail: [email protected]
https://scm.paul-neuhaus.de/public/conformity/
26.08.15 13:36
