Paul Neuhaus 8416-13-55 Led Ceiling Light Instruction Manual

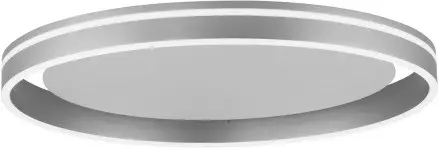

8416-13-55 LED Ceiling Light
Instruction Manual

SMART HOME LIGHTS

This product contains a light source of energy efficiency class <E>.

230V / 50Hz~
1x LED-Board 24V DC / 38W not changeable

	38 W 4.570 lm
	44 W 1.550 lm
	LED-Board
t	20.000 h
	2.700-5.000 K
	15.000 x
	<0,5 s

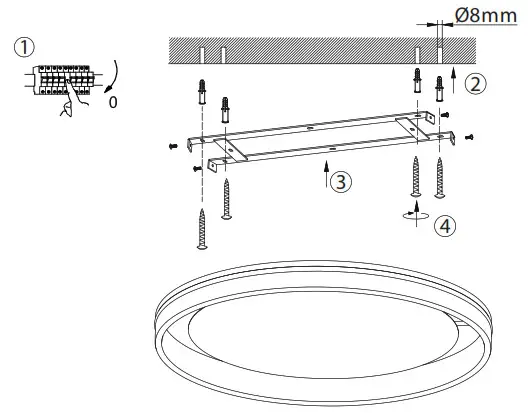

Fitting

As ceiling light

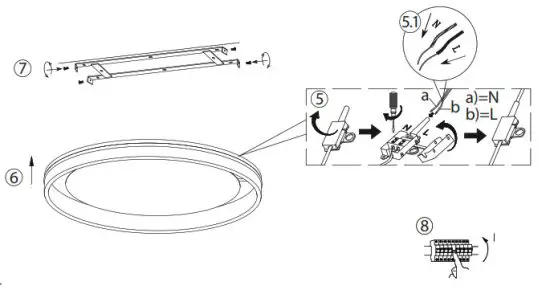

Electrical connection

230 voltage / 50Hz – connechtion

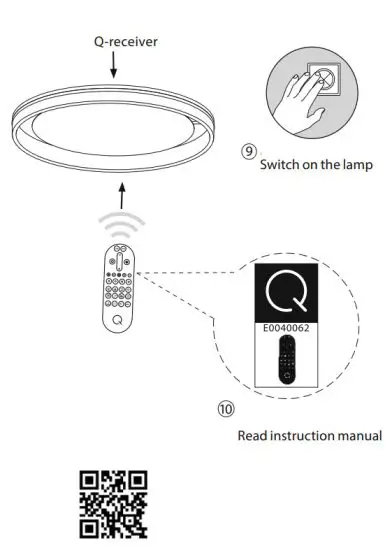

Teach remote control

See Q-remote control manual

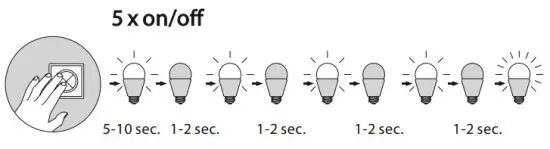

Reset

To integrate the lamp into a ZigBee network, reset the lamp to the factory setting.
