Paul Neuhaus 8196-55 Led Ceiling Light Instruction Manual

8196-55 LED Ceiling Light
Instruction Manual

SMART HOME LIGHTS
This product contains light sources of energy efficiency class <E>.

832182

230V/50 H z∼
3x LED-Board 24V DC / 16,5W not changeable

	16,5 W 1.980 Im
	55 W 3.000 Im
	LED-Board
t	25.000 h
	2.700 – 5.000 K
	15.000 x
	< 0,5 s
	dimmable with rrc

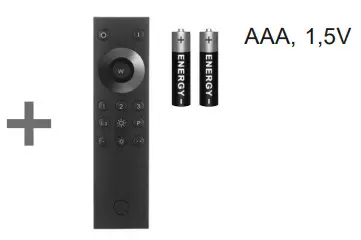

Incl. radio remote conterol

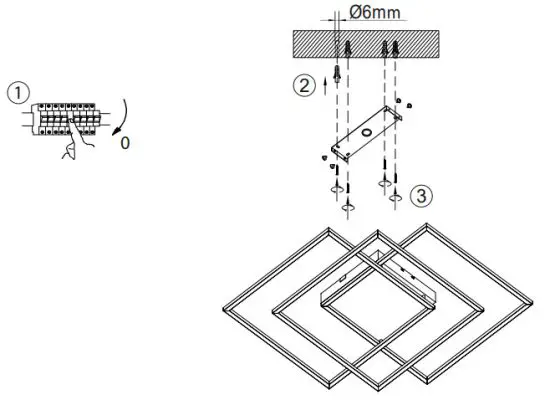

Fitting

AS ceiling

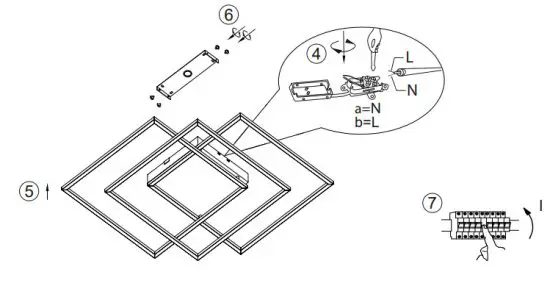

Electrical connection

230 voltage /50 Hz Connection

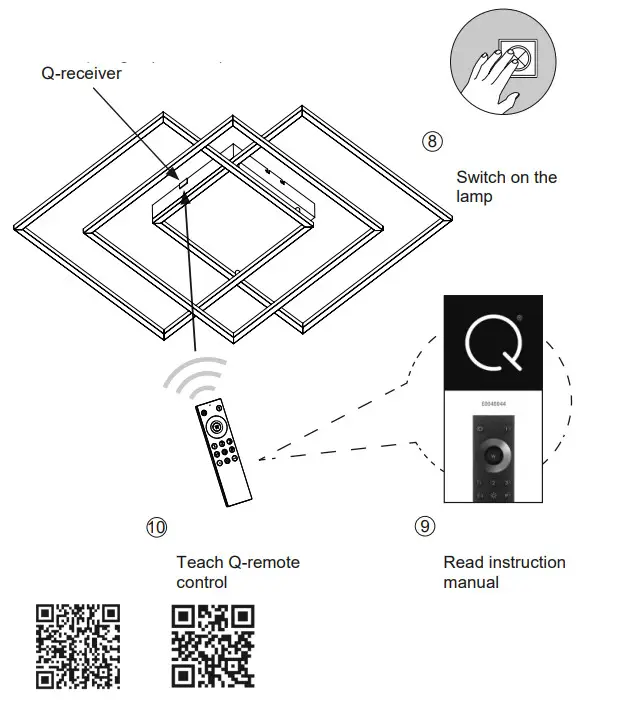

Teach remote control

See Q-remote control manual

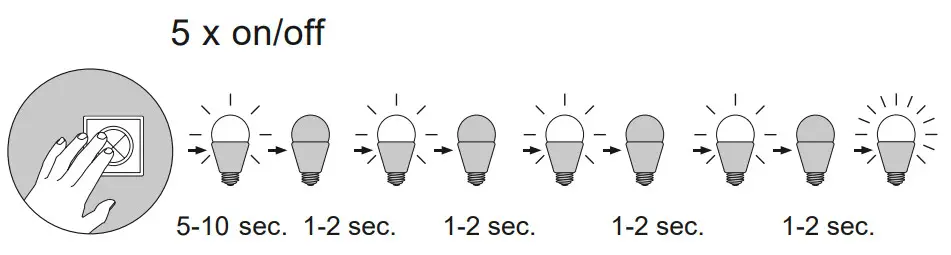

Reset

Reset the lamp, factory new

Paul Neuhaus GmbH
Olakenweg 36. 59457 Well
Germany
Telefon: + 49 (0) 29 22-97 21- 0
Telefax: + 49 (0) 29 22-97 21- 9120
E-mail: [email protected]
https://scm.paul-neuhaus.de/public/conformity/
