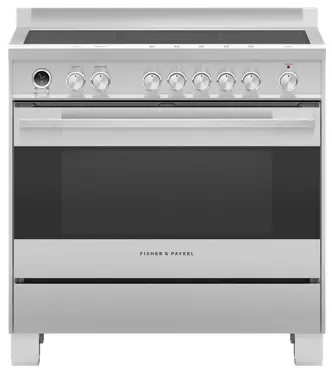

OR90SDI6X1 Freestanding Range Cooker, Induction, 90 cm, 5 Zones
User Guide
Series 9 | Contemporary
Stainless Steel

Contents hide

1 OR90SDI6X1 Freestanding Range Cooker, Induction, 90cm, 5 Zones

2 FEATURES & BENEFITS

3 SPECIFICATIONS

4 Documents / Resources

4.1 References

5 Related Posts

OR90SDI6X1 Freestanding Range Cooker, Induction, 90cm, 5 Zones

Contemporary styling with a large capacity oven, this is the perfect choice for those who love to cook.

Five cooking zones that can be paired to form Smart Zones
Convection oven with 140 L total capacity, and nine functions plus Rotisserie
Non-tip full-extension shelves for safe removal of hot dishes
High-temperature self-cleaning oven cycle breaks down food residue for an easy clean

DIMENSIONS

Height	898 – 946 mm
Width	897 mm
Depth	600 mm

FEATURES & BENEFITS

MULTI-SHELF COOKING
Our AeroTech™ system circulates air evenly throughout the entire oven so dishes on the bottom shelf turn out just as perfectly as food cooked on the top shelf.
QUALITY AND DURABILITY
Every detail has been carefully crafted. The solid, perfectly balanced soft-close door and chromed cast zinc dials add up to an exceptional, premium range cooker.
POWER AND CONTROL
Instant and immediate control from the highest to the gentlest heat. The finely tuned hob controls let you sear, stir fry or simmer a delicate sauce to perfection.
EASY CLEANING
Your hob simply needs a quick wipe to keep it looking good as new. The pyrolytic self-clean oven cycle breaks down food residue at a very high temperature, leaving a light ash that’s easily removed with a damp cloth.
COMPLEMENTARY DESIGN
With clean lines and complementary tonal contrasts, the timeless aesthetic of this Contemporary style range cooker supports a considered kitchen design.
LARGE CAPACITY OVEN
The generous 140 L total capacity oven gives you plenty of space to cook multiple dishes at once.

SPECIFICATIONS

Accessories
Flat wire shelf	1
Full Extension Telescopic	2 sets (part 578744)
Full extension sliding shelves	2 sets (part 578744)
Grill rack	•
Kick strip, stainless steel	KICKOR90X1
Roasting dish	1
Rotisserie set	1 set
Step down wire shelf	•
Capacity
Shelf positions	6
Total capacity	140 L
Usable capacity	120 L
Cleaning
Acid resistant graphite enamel	•
Drop down grill element	•
Flat easy clean glass surface	•
Pyrolytic proof shelf runners	•
Pyrolytic self-clean	•
Removable oven door	•
Removable oven door inner	•
Removable shelf runners	•
Consumption
Energy rating	A
Controls
Audio feedback	•
Automatic cooking/minute	•
Automatic pre-set	•
Celsius/Fahrenheit	•
Electronic clock	•
High resolution display	•
Laser etched graphics	•
Precise electronic temperature	•
Sabbath mode	•
Toughened fused glass	•
Turned stainless steel clock	•
Turned stainless steel clock	•
Turned stainless steel dials	•
Oven features
AeroTech™ technology	•
Automatic rapid pre-heat	•
Electronic oven control	•
Full extension telescopic	•
Internal light	4 x 25 W halogen (2 side & 2
Soft open/close door	•
True convection	•
Twin cavity fans	•
Warming drawer	•
Oven functions
Bake	•

Fan bake	•
Fan forced	•
Fan grill	•
Grill	•
Number of functions	9
Pastry Bake with Pizza mode	•
Rapid proof	•
Roast	•
Rotisserie	•
True convection	•
Oven performance
Cool Touch door	Quadruple glazed
Warming drawer power	202 W
Power requirements
Amperage	68 A
Supply frequency	50Hz
Product dimensions
Depth	600 mm
Height	898 – 946 mm
Width	897 mm
Hob Features
Auto heat reduce	•
Dual colour display	•
Gentle heat	•
Heat settings	9
Induction cooking technology	•
Smart Zone	1
Zone bridging	•
Hob Performance
Centre	2300 W
Left front zone rating	1600 (1850)W
Left rear zone rating	2100 (3000)W
Number of cooking zones	5
Power Boost	•
Power Boost all zones	up to 3000 W
Right front zone rating	1600 (1850)W
Right rear zone rating	2100 (3000)W
Safety
Advanced cooling system	•
Anti-tilt bracket	•
Balanced oven door	•
Catalytic venting system	•
Child lock	•
Cool Touch door	•
Full extension telescopic	•
Non-tip shelves	•
Pan detection system	•
Safety time out	•
Spillage auto off	•
Surface hot indicators	•
Warranty
Parts and labour	5 years
SKU	82227
