QUICK REFERENCE GUIDE > OR90SDI6X1
Freestanding Cooker,
Induction, 90cm, 5 Zones with
SmartZone, Self-cleaning
Series 9 | Contemporary
Stainless Steel

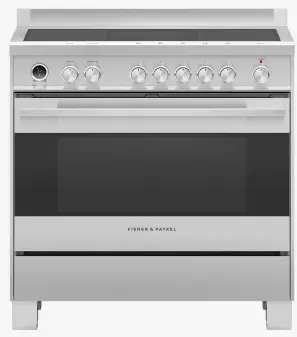

OR90SDI6X1 5 Zones Freestanding Induction Cooker
With a large oven and cooktops that can be paired to create an expansive cook zone, this is the perfect choice for those who love to cook.
- Five cooking zones, with the ability to pair zones to create SmartZones
- Convection oven with 140L total capacity and nine oven
- functions including Pastry Bake with pizza mode and rapid proof for making bread
- Non-tip full-extension shelves for safe removal of hot dishes
- Pyrolytic self-clean breaks down food residue at a very high temperature, leaving a light ash that’s easily removed with a damp cloth

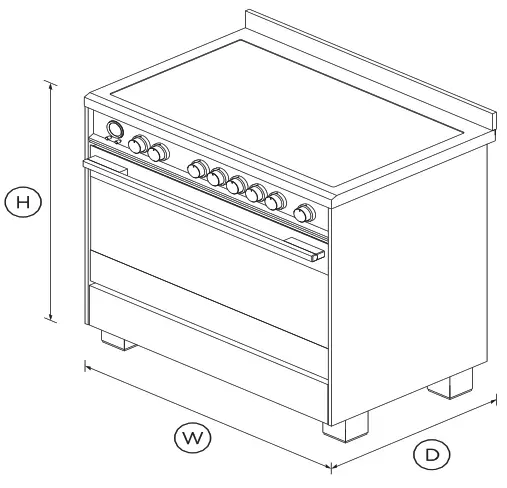

DIMENSIONS
| Height | 898 – 946mm |
| Width | 897mm |
| Depth | 600mm |
FEATURES & BENEFITS
MULTI-SHELF COOKING
Our AeroTech™ system circulates heat evenly for a consistent temperature throughout the cavity, helping you achieve perfect results even when using multiple shelves.
QUALITY AND DURABILITY
Every detail has been carefully crafted. The solid, perfectly balanced soft-close door, durable cooktop and glowing halo dials all add up to an exceptional, premium freestanding cooker.
POWER & CONTROL
Instant and immediate control from the highest to the gentlest heat. The finely tuned cooktop controls let you sear or simmer a delicate sauce to perfection.
EASY CLEANING
Cleaning up spills is effortless. Your cooktop simply needs a quick wipe to keep it looking good as new. The pyrolytic self clean oven cycle breaks down food residue at a very high temperature, leaving a light ash that’s easily removed ith a damp cloth.
EVEN HEAT
Accurate, electronically-controlled oven heat ensures a great result every time.
LARGE CAPACITY OVEN
The generous 140L total capacity oven gives you plenty of space to cook multiple dishes at once.
SPECIFICATIONS
| Accessories | |
| Flat wire shelf | 1 |
| Full Extension Telescopic | 2 sets (part 578744) |
| Full extension sliding shelves | 2 sets (part 578744) |
| Grill rack | • |
| Kick strip, stainless steel | KICKOR90X1 |
| Roasting dish | 1 |
| Rotisserie set | 1 set |
| Step down wire shelf | • |
| Capacity | |
| Capacity usable | 121L |
| Shelf positions | 6 |
| Shelf positions | 6 |
| Total capacity | 140L |
| Usable capacity | 121L |
| Cleaning | |
| Acid resistant graphite enamel | • |
| Drop down grill element | • |
| Flat easy clean glass surface | • |
| Pyrolytic proof shelf runners | • |
| Pyrolytic self-clean | • |
| Removable oven door | • |
| Removable oven door inner | • |
| Removable shelf runners | • |
| Controls | |
| Audio feedback | • |
| Automatic cooking/minute | • |
| Automatic pre-set | • |
| Celsius/Fahrenheit | • |
| Electronic clock | • |
| High resolution display | • |
| Laser etched graphics | • |
| Precise electronic temperature | • |
| Sabbath mode | • |
| Toughened fused glass | • |
| Turned stainless steel clock | • |
| Turned stainless steel clock | • |
| Turned stainless steel dials | • |
| Oven features | |
| AeroTech™ technology | • |
| Automatic rapid pre-heat | • |
| Electronic oven control | • |
| Full extension telescopic | • |
| Internal light | 4 x 25W halogen (2 side & 2 |
| Soft open/close door | • |
| True convection | • |
| Twin cavity fans | • |
| Warming drawer | • |
| Oven functions | |
| Bake | • |
| Fan bake | • |
| Fan forced | • |
| Fan grill | • |
| Grill | • |
| Number of functions | 9 |
| Pastry Bake with Pizza mode | • |
| Rapid proof | • |
| Roast | • |
| Rotisserie | • |
| True convection | • |
| Oven performance | |
| CoolTouch door | Quadruple glazed |
| Warming drawer power | 202W |
| Power requirements | |
| Amperage | 68A |
| Supply frequency | 50Hz |
| Product dimensions | |
| Depth | 600mm |
| Height | 898 – 946mm |
| Width | 897mm |
| Cooktop Features | |
| Auto heat reduce | • |
| Dual colour display | • |
| Gentle heat | • |
| Heat settings | 9 |
| Induction cooking technology | • |
| SmartZone | 1 |
| Zone bridging | • |
| Cooktop Performance | |
| Centre | 2300W |
| Left front zone rating | 1600 (1850)W |
| Left rear zone rating | 2100 (3000)W |
| Number of cooking zones | 5 |
| PowerBoost | • |
| PowerBoost all zones | up to 3000W |
| Right front zone rating | 1600 (1850)W |
| Right rear zone rating | 2100 (3000)W |
| Safety | |
| Advanced cooling system | • |
| Anti-tilt bracket | • |
| Balanced oven door | • |
| Catalytic venting system | • |
| Child lock | • |
| CoolTouch door | • |
| Full extension telescopic | • |
| Non-tip shelves | • |
| Pan detection system | • |
| Safety time out | • |
| Spillage auto off | • |
| Surface hot indicators | • |
| SKU | 81692 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
