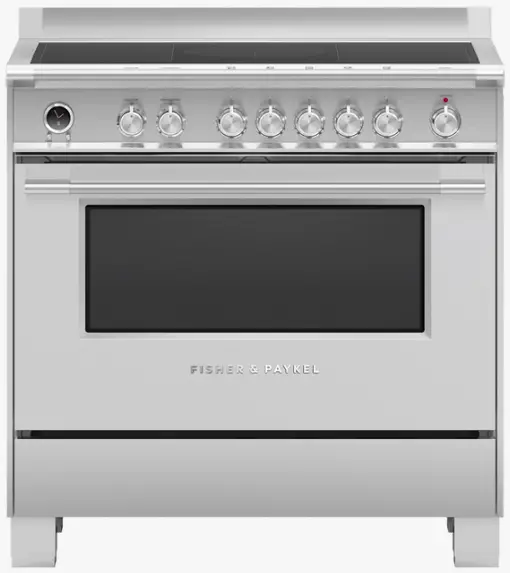

FISHER PAYKEL OR90SCI6X1 Freestanding Cooker, Induction, 90cm, 5 Zones with SmartZone, Self-cleaning
With large oven and cooktops that can be paired to create an expansive cook zone, this freestanding cooker is made for those who love to cook.
- Five cooking zones that can be bridged to form SmartZone’s
- Convection oven with 140L total capacity, nine oven functions plus rotisserie, including Pastry Bake with pizza mode and rapid proof for making bread
- Non-tip full-extension shelves for safe removal of hot dishes
- High-temperature self-cleaning function breaks down food residue for an easy clean

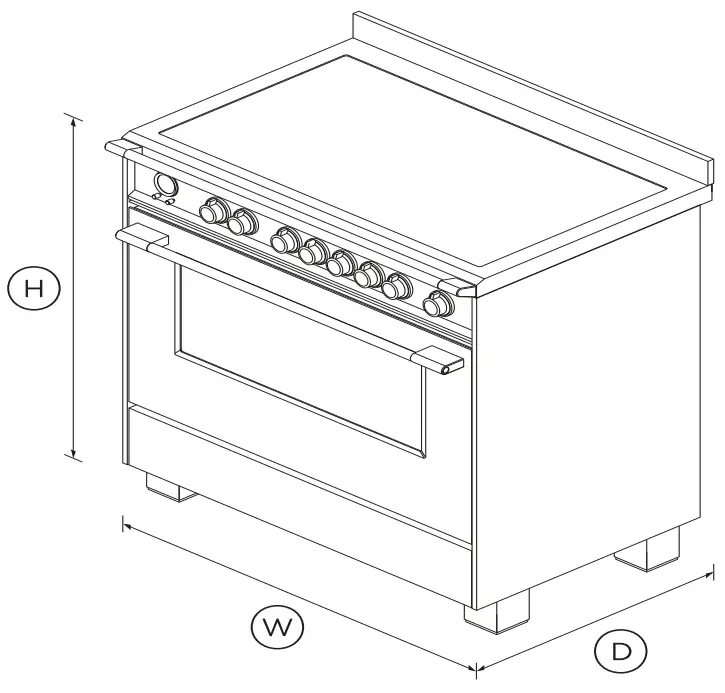

DIMENSIONS
Height | 898 – 946mm |
Width | 898 – 946mm |
| Depth | 600mm |
FEATURES & BENEFITS
Multi-shelf cooking
Our Aerotech™ system circulates air evenly throughout the
entire oven so dishes on the top shelf turn out just as perfectly as
food cooking on the bottom shelf.
Quality and durability
Every detail has been carefully crafted. The solid, perfectly balanced soft-close door, durable cooktop and glowing halo dials all add up to an exceptional, premium range.
Power & control
Instant and immediate control from the highest to the gentlest heat. The finely tuned cooktop controls let you sear, stir fry or simmer a delicate sauce to perfection.
Easy to clean
Cleaning up spills is effortless. Your cooktop simply needs a quick wipe to keep it looking good as new. The pyrolytic selfclean oven cycle breaks down food residue at a very high temperature, leaving a light ash that’s easily removed with a damp cloth.
Even heat
Accurate, electronically-controlled oven heat ensures a great result every time.
Large capacity oven
The generous 140L total capacity oven gives you plenty of space to cook multiple dishes at once.
LARGE, FLEXIBLE COOKING AREA
SmartZone links two cooking zones and controls them as one, giving you the flexibility to use large pans and griddles and easily handle bigger food items such as a whole fish. This cooktop comes with a small pot support and wok stand to complement different cooking styles.
SPECIFICATIONS
Accessories | |
| Flat wire shelf | 1 |
| Full Extension Telescopic | 2 sets (part 578744) |
| Full extension sliding shelves | 2 sets (part 578744) |
| Grill rack | • |
| Kick strip, stainless steel | KICKOR90X1 |
| Roasting dish | 1 |
| Rotisserie set | 1 set |
| Step down wire shelf | • |
Capacity | |
| Capacity usable | 120L |
| Shelf positions | 120L |
| Shelf positions | 6 |
| Total capacity | 140L |
| Usable capacity | 120L |
Cleaning | |
| Acid resistant graphite enamel | • |
| Drop down grill element | • |
| Flat easy clean glass surface | • |
| Pyrolytic self-clean | • |
| Removable oven door | • |
| Removable oven door inner | • |
| Removable shelf runners | • |
Controls | |
| Audio feedback | • |
| Automatic cooking/minute | • |
| Automatic pre-set | • |
| Celsius/Fahrenheit | • |
| Electronic clock | • |
| High resolution display | • |
| Laser etched graphics | • |
| Precise electronic temperature | • |
| Sabbath mode | • |
| Toughened fused glass | • |
| Turned stainless steel clock | • |
| Turned stainless steel clock | • |
Oven features | |
| Aerotech™ technology | • |
| Automatic rapid pre-heat | • |
| Bright chromed, cast zinc dials | • |
| Convection | • |
| Electronic oven control | • |
| Full extension telescopic | • |
| Internal light | 4 x 25W halogen (2 side & 2 |
| Soft open/close door | • |
| Twin cavity fans | • |
| Warming drawer | • |
Oven functions | |
| Bake | • |
| Fan bake | • |
| Fan forced | • |
| Fan grill | • |
| Grill | • |
| Number of functions | 9 |
| Pastry Bake with Pizza mode | • |
| Rapid proof | • |
| Roast | • |
| Rotisserie | • |
Power requirements | |
| Amperage | 68A |
| Supply frequency | 50Hz |
| Supply voltage | 220 – 240V |
| Product dimensions | |
| Depth | 600mm |
| Height | 898 – 946mm |
| Width | 897mm |
Cooktop Features | |
| Auto heat reduce | • |
| Dual color display | • |
| Gentle heat | • |
| Heat settings | 9 |
| Hob rail | • |
| induction cooking technology | • |
| SmartZone | 1 |
| Zone bridging | • |
Cooktop Performance | |
| Centre | 2300W |
| Left front | 1600W |
| Left rear | 2100W |
| Number of cooking zones | 5 |
| Power Boost | • |
Safety | |
| Advanced cooling system | • |
| Anti-tilt bracket | • |
| Balanced oven door | • |
| Catalytic venting system | • |
| Child lock | • |
| Cool Touch door | • |
| Full extension telescopic | 2 sets (part 578744) |
| Full extension telescopic | • |
| Non-tip shelves | • |
| Pan detection system | • |
| Safety time out | • |
| Spillage auto off | • |
| Surface hot indicators | • |
Warranty | |
| Parts and labor | 2 years |
| SKU | 81693 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
