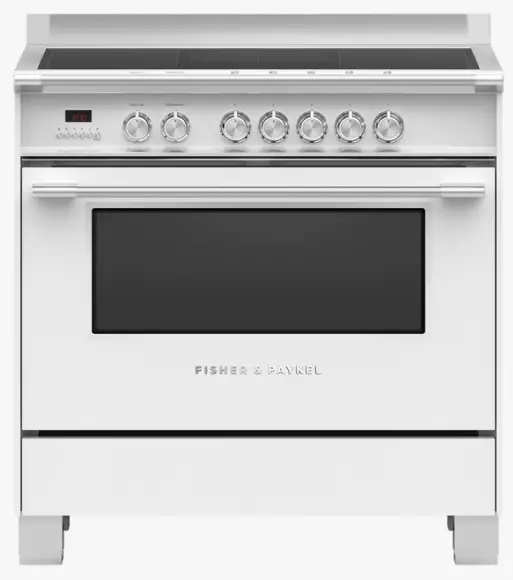

FISHER PAYKEL OR90SCI4W1 Freestanding Cooker, Induction, 90cm, 5 Zones with SmartZone
Introduction
Heritage styling with contemporary performance in the large convection oven and induction cooktop, with SmartZone capability.
- Five cooking zones, with the ability to pair zones to create SmartZones
- Convection oven with 140L total capacity and nine oven functions including Pastry Bake with pizza mode and rapid proof for making bread
- Non-tip full-extension shelves for safe removal of hot dishes

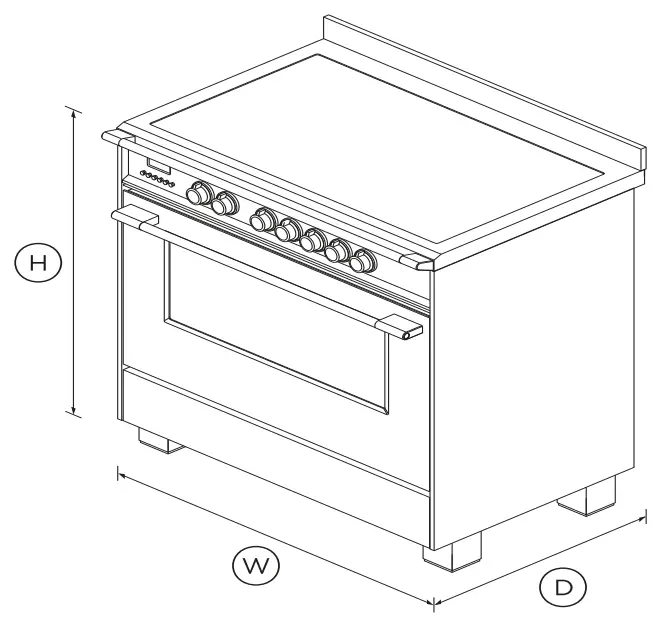

DIMENSIONS
| Height | 898 – 946mm |
| Width | 897mm |
| Depth | 600mm |
FEATURES & BENEFITS
MULTI-SHELF COOKING
Our AeroTech™ system circulates air evenly throughout the entire oven so dishes on the top shelf turn out just as perfectly as food cooking on the bottom shelf.
QUALITY AND DURABILITY
Every detail has been carefully crafted. The solid, perfectly balanced soft-close door, durable cooktop and glowing halo dials all add up to an exceptional, premium range.
POWER & CONTROL
Instant and immediate control from the highest to the gentlest heat. The finely tuned cooktop controls let you sear, stir fry or simmer a delicate sauce to perfection.
EVEN HEAT
Accurate, electronically-controlled oven heat ensures a great result every time.
LARGE CAPACITY OVEN
The generous 140L total capacity oven gives you plenty of space to cook multiple dishes at once.
LARGE, FLEXIBLE COOKING AREA
SmartZone links two cooking zones and controls them as one, giving you the flexibility to use large pans and griddles and easily handle bigger food items such as a whole fish.
SPECIFICATIONS
Accessories
| Chromed shelf runners | 1 set |
| Flat wire shelf | 1 |
| Full Extension Telescopic | 1 set (part 578744) |
| Full extension sliding shelves | 1 set (part 578744) |
| Grill rack | • |
| Kick strip, white (optional) | KICKOR90W1 |
| Roasting dish | 1 |
| Step down wire shelf | • |
Capacity
| Shelf positions | 6 |
| Total capacity | 140L |
| Usable capacity (main oven) | 121L |
Cleaning
| Acid resistant graphite enamel | • |
| Drop down grill element | • |
| Flat easy clean glass surface | • |
| Removable oven door | • |
| Removable oven door inner | • |
| Removable shelf runners | • |
Controls
| Audio feedback | • |
| Automatic cooking/minute | • |
| Automatic pre-set | • |
| Celsius/Fahrenheit | • |
| Electronic clock | • |
| Laser etched graphics | • |
| Precise electronic temperature | • |
| Sabbath mode | • |
| Toughened fused glass | • |
| Turned stainless steel clock | • |
Oven features
| AeroTech™ technology | • |
| Automatic rapid pre-heat | • |
| Bright chromed, cast zinc dials | • |
| Electronic oven control | • |
| Full extension telescopic | • |
| Internal light | 4 x 25W halogen (2 side & 2 |
| Soft open/close door | • |
| Storage drawer | • |
| True convection | • |
| Twin cavity fans | • |
Oven functions
| Bake | • |
| Classic bake | • |
| Fan bake | • |
| Fan forced | • |
| Fan grill | • |
| Grill | • |
| Number of functions | 9 |
| Pastry Bake with Pizza mode | • |
| Rapid proof | • |
| Roast | • |
| True convection | • |
Oven performance
| CoolTouch door | Triple glazed |
Power requirements
| Amperage | 67A |
| Supply frequency | 50Hz |
| Supply voltage | 220 – 240V |
Product dimensions
| Depth | 600mm |
| Height | 898 – 946mm |
| Width | 897mm |
Cooktop Features
| Auto heat reduce | • |
| Dual colour display | • |
| Gentle heat | • |
| Heat settings | 9 |
| Hob rail | • |
| Induction cooking technology | • |
| SmartZone | 1 |
| Zone bridging | • |
Cooktop Performance
| Centre | 2300W |
| PowerBoost | • |
Safety
| Advanced cooling system | • |
| Anti-tilt bracket | • |
| Balanced oven door | • |
| Child lock | • |
| CoolTouch door | • |
| Full extension telescopic | • |
| Non-tip shelves | • |
| Pan detection system | • |
| Safety time out | • |
| Spillage auto off | • |
| Surface hot indicators | • |
Warranty
| Parts and labour | 2 years |
| SKU | 81686 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
