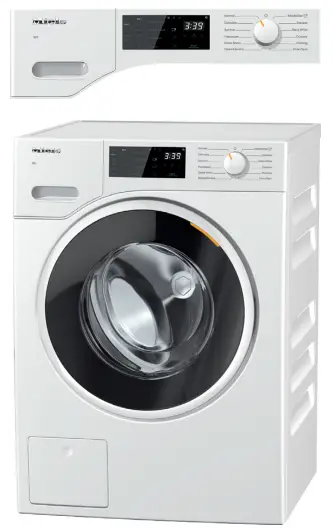

Miele WWD160 WCS Classic Washing Machine
Features
- Honey Comb drum (2.26 ft3 capacity; 17.6 lbs)
- 11 Wash Programs including Soft Steam option
- DirectSensor user interface
- WiFiConn@ct and Mobile Control
- CapDos
- Add Laundry feature
- 1600 rpm max spin speed
MATERIAL #
| MATERIAL # | EAN # |
| 11614040 | 0 4002516376903 |
SPECIFICATIONS
| SPECIFICATIONS | – |
| Overall Unit Dimensions | 23 ½ ” (596 mm) W x 33½ ” – 34¾ ” (850 – 882 mm) H x 255/,e” (643 mm) D |
| Niche | |
| Minimum Cabinet Niche Opening | 23¾ ” (603 mm) W x 335/s” (854 mm) H x 24″ (61O mm) D |
| Plumbing | |
| Water Supply Requirements |
|
| Water Connection Line | Length: 5 ft 3 in. (1.6 m) Female 3/4″ GHT fitting |
| Drain Hose (Supplied) | Length: 5 ft (1.5 m) |
| Electrical | |
| Electrical Requirements | 110 V / 120 V, 60 Hz, 15 Amos |
| Power Cord | NEMA 5-15 plug, 6 ft 6 in. (2 m) |
| Shiooina | |
| Shipping Weight | 221 lbs (100 kg) |
| Shipping Dimensions | 26″ w X 37″ H X 27 3/15″ 0 |

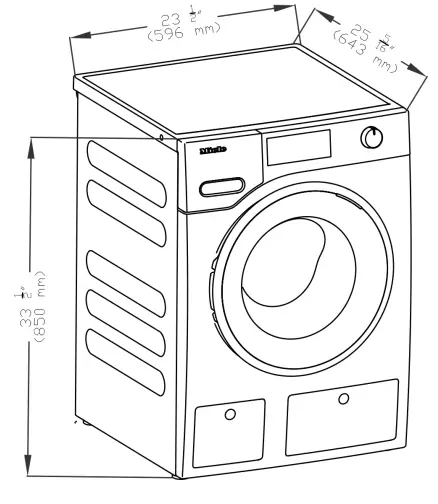

PRODUCT DIMENSIONS

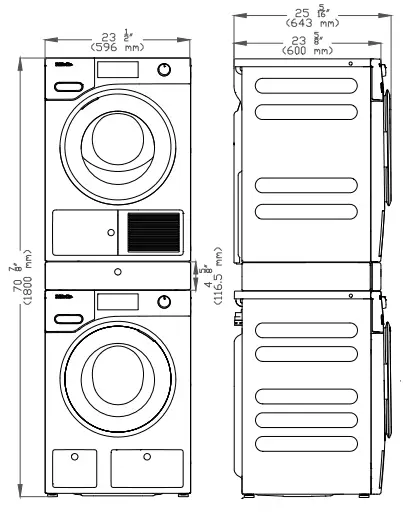

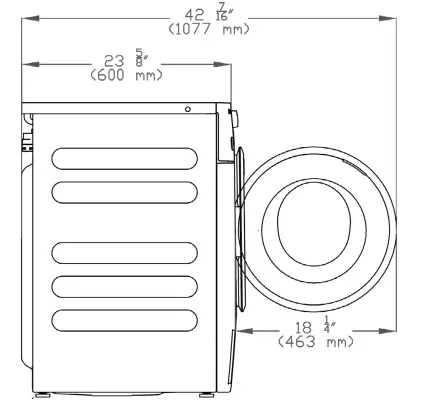

ADDITIONAL PRODUCT DIMENSIONS

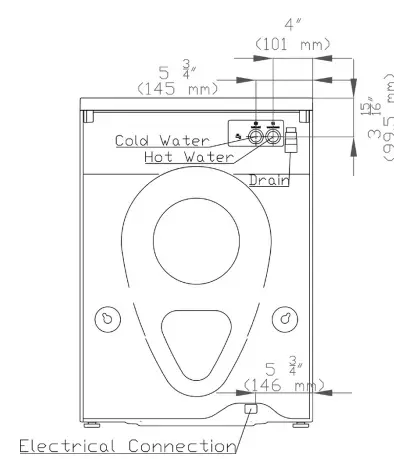

Rear View

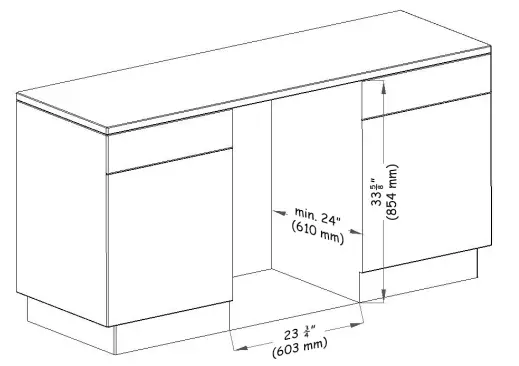

NICHE DIMENSIONS
OPTIONAL ACCESSORIES
WTV502
Material# 9256140
WTV512
Material# 9351790
